Chapter 1 Introduction | VFD-ED
1-11

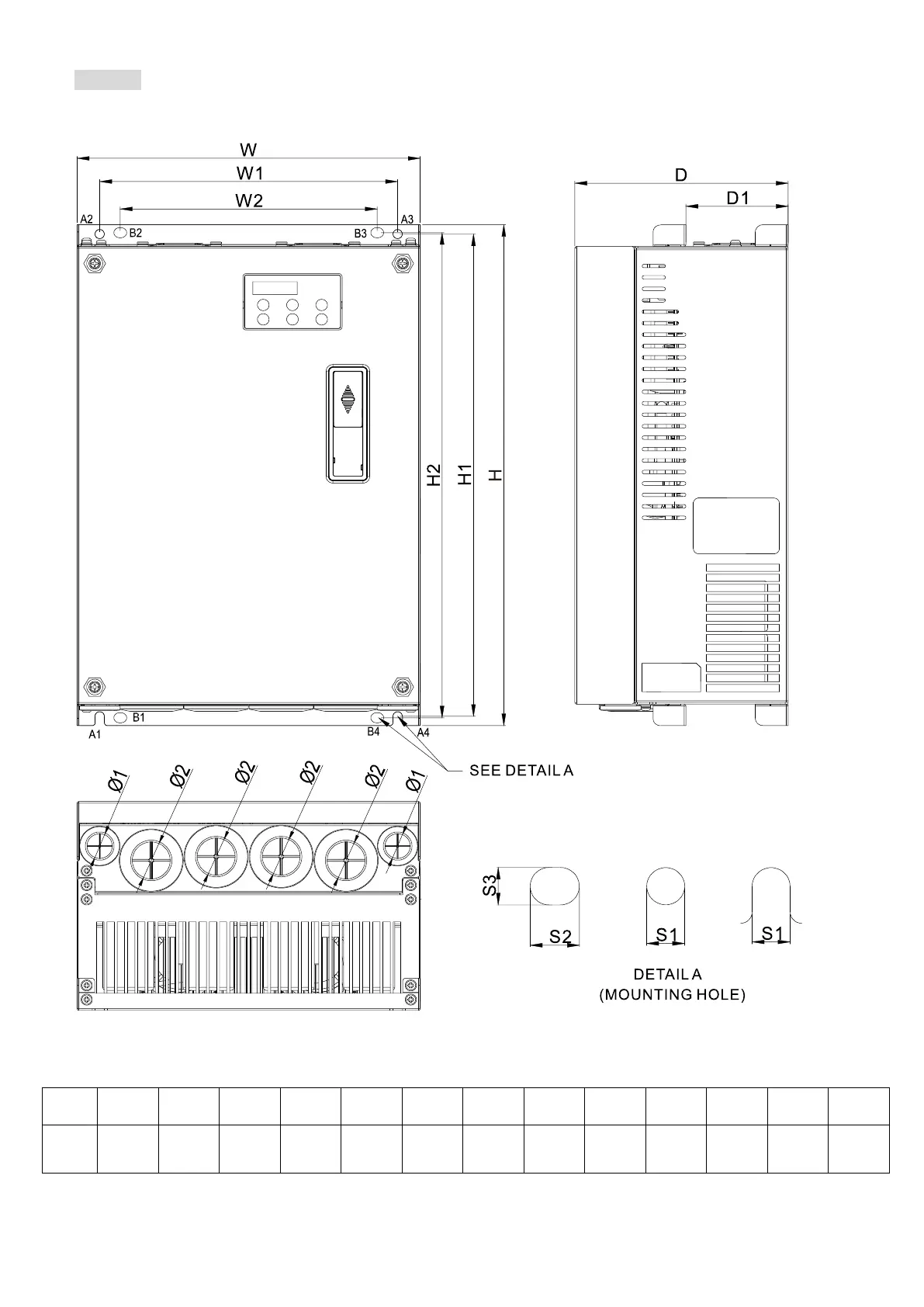

Frame C
VFD055ED23S/43S, VFD075ED23S/43S, VFD110ED23S/43S, VFD150ED43S, VFD185ED43S
Figure 1-18
Unit: mm (inch)
Frame
W
W1
W2
H
H1
H2
D
D1*
S1
S2
S3
∅1
∅2
C
235.0
(9.25)
204.0
(8.03)
176.0
(6.93)
350.0
(13.78)
337.0
(13.27)
320.0
(15.60)
146.0
(5.75)
70.0
(2.76)
6.5
(0.26)
9.0
(0.35)
7.0
(0.28)
19.7
(0.78)
28.3
(1.11)
NOTE: A1–A4 and B1–B4 can be used for screwdriver installation; B1–B4 can also be used for sleeve installation
*D1: This dimension is for flange mounting application reference.
