Chapter 1 Introduction | VFD-ED
1-12

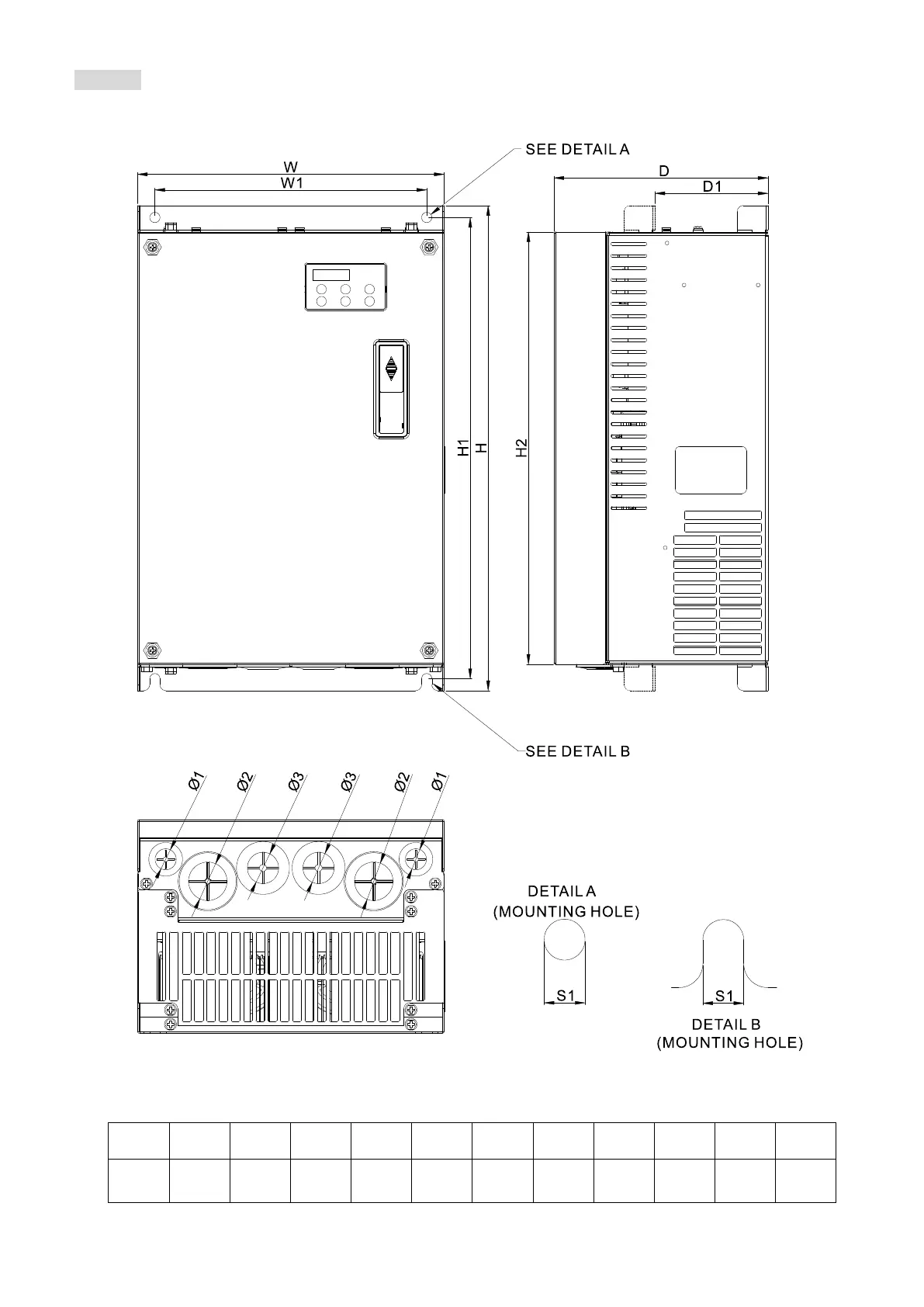

Frame D
VFD150ED23S, VFD185ED23S, VFD220ED23S/43S, VFD300ED43S
Figure 1-19
Unit: mm (inch)
Frame
W
W1
H
H1
H2
D
D1*
S1
∅1
∅2
∅3
D
255.0
(10.04)
226.0
(8.90)
403.8
(15.90)
384.0
(15.12)
360.0
(14.17)
178.0
(7.01)
94.0
(3.70)
8.5
(0.33)
17.5
(0.69)
32.0
(1.26)
26.0
(1.02)
*D1: This dimension is for flange mounting application reference.
