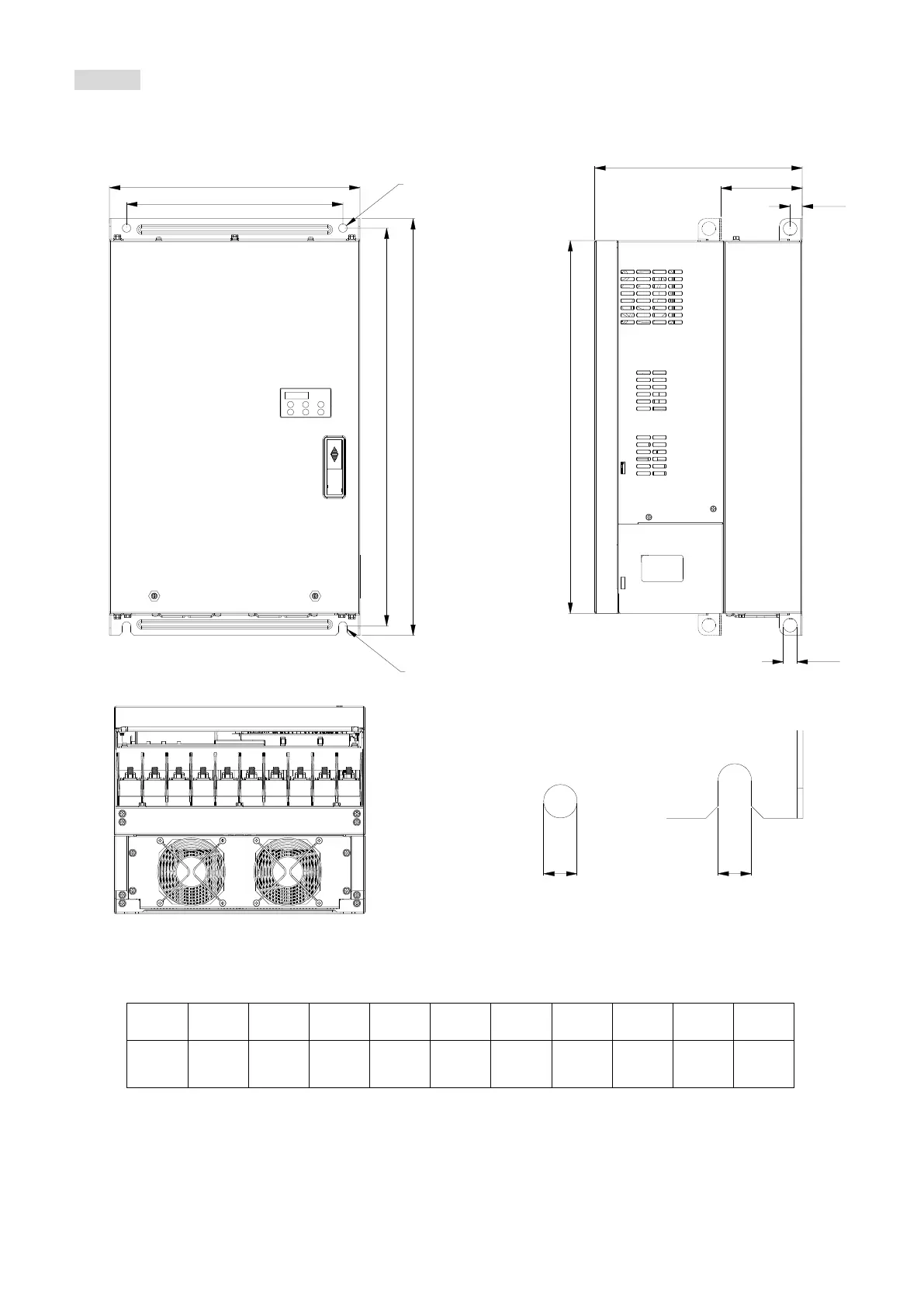

Chapter 1 Introduction | VFD-ED
1-13
Frame E
VFD300ED23S, VFD370ED23S/43S, VFD450ED43S, VFD550ED43S, VFD750ED43S
S1
S1
DETAIL A
(MOUNTING HOLE)
DETAIL B
(MOUNTING HOLE)
W
W1
H
H1
SEE DETAIL B
D
H2
D1
S2
D2
SEE DETAIL A
Figure 1-20
Unit: mm (inch)
Frame
W
W1
H
H1
H2
D
D1*
D2
S1
S2
E
330.0
(12.99)
285.0
(11.22)
550.0
(21.65)
525.0
(20.67)
492.0
(19.37)
273.4
(10.76)
107.2
(4.22)
16.0
(0.63)
11.0
(0.43)
18.0
(0.71)
*D1: This dimension is for flange mounting application reference.
