Chapter 10 Auto-tuning Process | VFD-ED

10-21

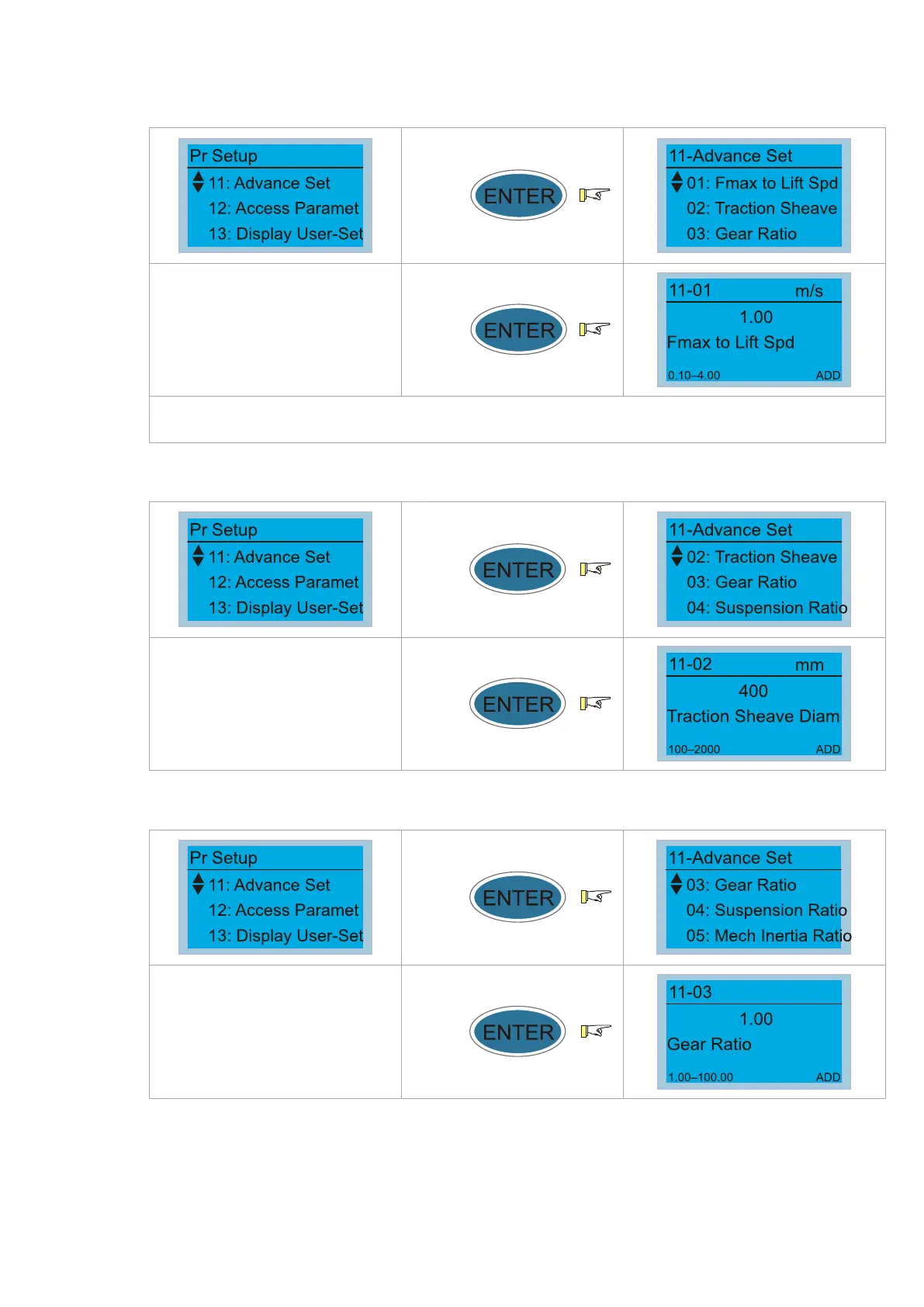

10-3-5 Elevator Related Parameters

Pr.11-01 Elevator Speed

Press

 Elevator speed (m/sec. = m/min. / 60)

Pr.11-02 Traction Sheave Diameter

Press

Pr.11-03 Gear Ratio

Press
