Chapter 10 Auto-tuning Process | VFD-ED

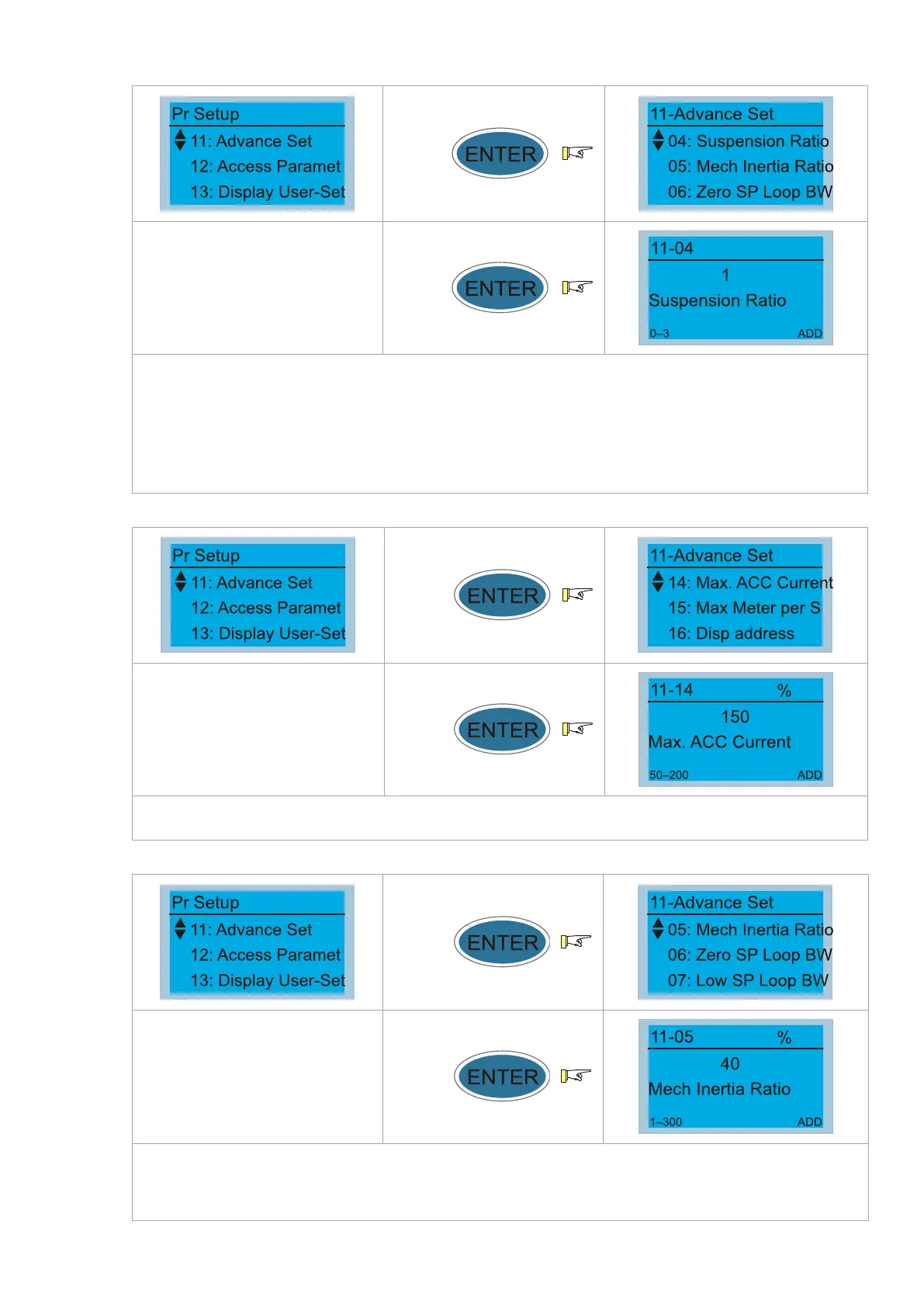

Pr.11-04 Suspension Ratio
Press
Press
 Setting value:
0 = 1: 1
1 = 2: 1
2 = 4: 1
3 = 8: 1
Pr.11-14 Motor Current at Acceleration
Press
Press
 The maximum motor current measured when the elevator is tuning in automatic mode.
Pr.11-05 Mechanical Inertial Ratio
Press
Press
 You can calculate the load inertia according to the settings of motor parameters, Pr.11-01 to
Pr.11-04 and Pr.11-14 Motor Current at Acceleration and Pr.11-15 Carriage Acceleration. You
can use this parameter to adjust the mechanical inertia ratio.
