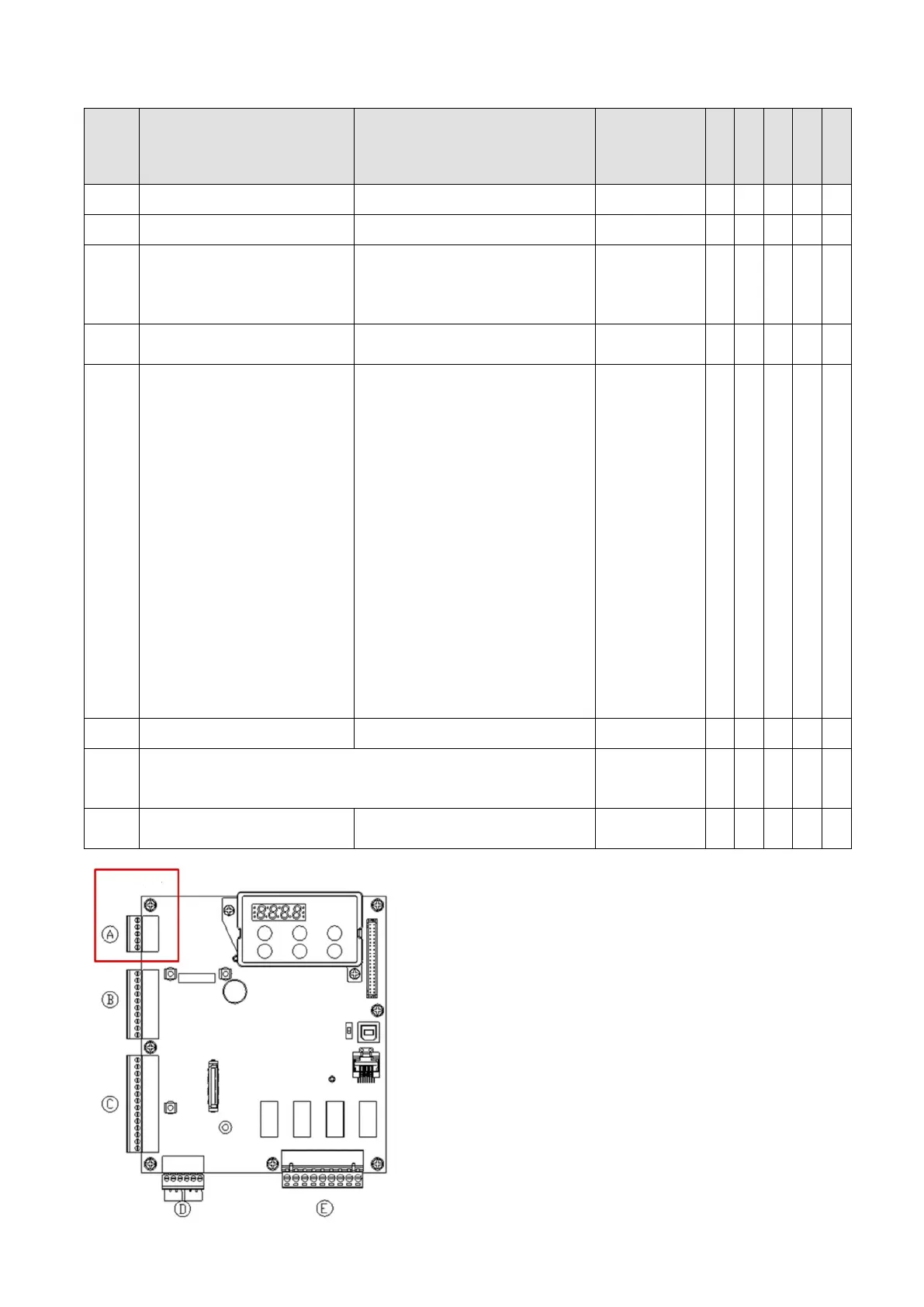

09 Communication Parameters
Pr. Parameter Name Setting Range Default
VF
VFPG
SVC
FOCPG
FOCPM

09-00 Communication Address 1–254 1

09-01 Transmission Speed 4.8–115.2 kbps 19.2
○ ○ ○ ○ ○

09-02
Transmission Fault
Treatment
0: Warn and keep operation
1: Fault and ramp to stop
2: Reserved
3: No action and no display
3
○ ○ ○ ○ ○

09-03 Time-out Detection
0.0–100.0 sec.
0.0: Disable
0.0
○ ○ ○ ○ ○

09-04 Communication Protocol
0: 7N1 (ASCII)
1: 7N2 (ASCII)
2: 7E1 (ASCII)
3: 7O1 (ASCII)
4: 7E2 (ASCII)
5: 7O2 (ASCII)
6: 8N1 (ASCII)
7: 8N2 (ASCII)
8: 8E1 (ASCII)
9: 8O1 (ASCII)
10: 8E2 (ASCII)
11: 8O2 (ASCII)
12: 8N1 (RTU)
13: 8N2 (RTU)
14: 8E1 (RTU)
15: 8O1 (RTU)
16: 8E2 (RTU)
17: 8O2 (RTU)
13
○ ○ ○ ○ ○

09-05 Response Delay Time 0.0–200.0 ms 2.0
○ ○ ○ ○ ○
09-06
–
09-13
Direct docking mode only  -
○ ○ ○
09-14 PDO Transmission Interval 0–65535 ms 0
○ ○ ○ ○ ○
External
Terminal
