Delta VFD-ED Series User Manual

Chapter 4 Main Circuit Terminals | VFD-ED
4-7
Frame D

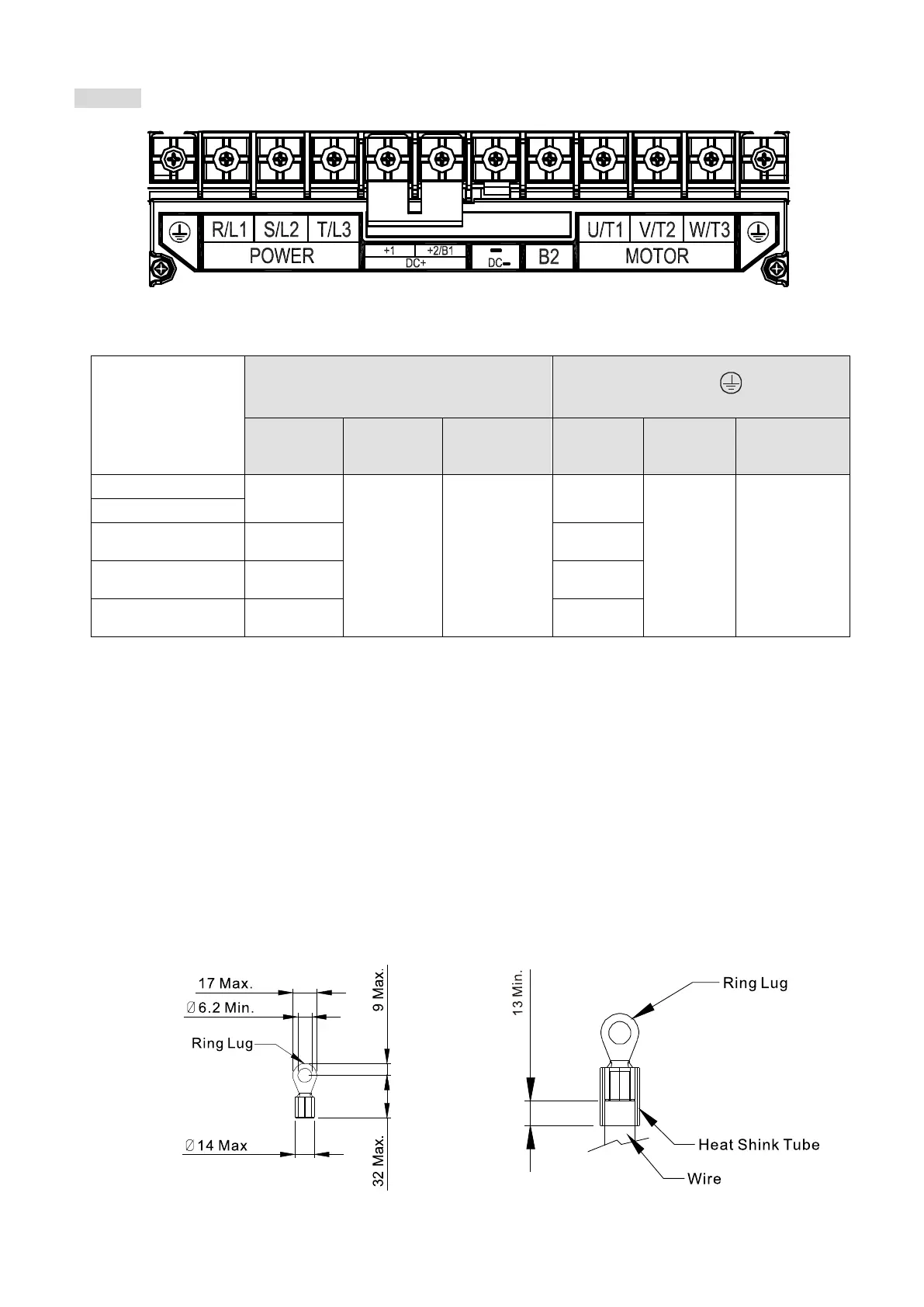

Figure 4-11
Model
Main Circuit Terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
+1, +2/B1, -, B2
Terminal
Min. Wire
Gauge
Max. Wire
Gauge
Screw Size &
Tightening
Torque (±10%)
Min. Wire
Gauge
Max. Wire
Gauge
Screw Size &
Tightening
Torque (±10%)
VFD150ED23S
21.1 mm²
(4 AWG)
33.6 mm²
(2 AWG)
M6
50 kg-cm
(43.4 lb-in.)
(4.9 N-m)
16 mm²
(6 AWG)
33.6 mm²
(2 AWG)
M6
50 kg-cm
(43.4 lb-in.)
(4.9 N-m)
VFD300ED43S
VFD185ED23S
26.7 mm²
(3 AWG)
16 mm²
(6 AWG)
VFD220ED43S
13.3 mm²
(6 AWG)
13.3 mm²
(6 AWG)
VFD220ED23S
33.6 mm²
(2 AWG)
16 mm²
(6 AWG)
Table 4-4
NOTE:
 For UL installation compliance, select copper wires with voltage rating of 600V and temperature
resistance of 75°C.
 Choose terminal wire size as Figure 4-12 shows.
 Use insulated heat shrink tubing that is resistant to at least 600V to comply with UL and CSA
regulations (600 V, YDPU2), as Figure 4-13 shows.
 If you install at Ta 50°C environment, use copper wires with voltage rating of 600V and
temperature resistance of 75°C or 90°C.
 If you install at Ta 50°C above environment, use copper wires with voltage rating of 600V and
temperature resistance of 90°C or above.
 To be UL installation compliant, you must use copper wires when installing. The wire gauge is
based on temperature resistance of 75°C, in accordance with UL requirements and
recommendations. Do not reduce the wire gauge when using high-temperature resistant wire.
Figure 4-12 Figure 4-13
