Delta VFD-ED Series User Manual

Chapter 4 Main Circuit Terminals | VFD-ED
4-8

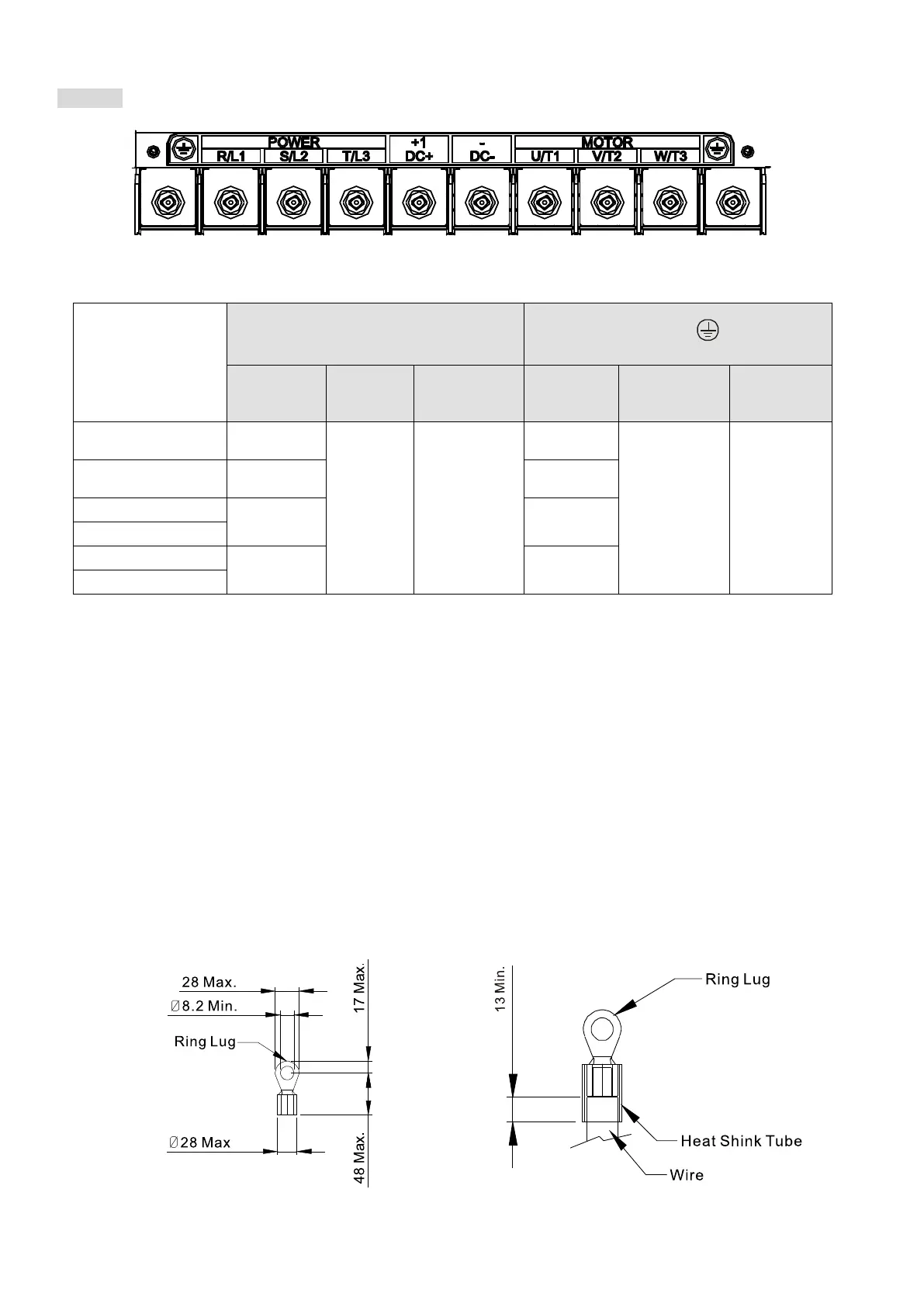

Frame E
Figure 4-14
Model
Main Circuit Terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
+1(DC+), -(DC-)
Terminal
Min. Wire
Gauge
Max. Wire
Gauge
Screw Size &
Tightening
Torque (±10%)
Min. Wire
Gauge
Max. Wire
Gauge
Screw Size &
Tightening
Torque (±10%)
VFD370ED43S
53.5 mm²
(1/0 AWG)
152 mm²
(300 MCM)
M8
200 kg-cm
(173 lb-in.)
(19.6 N-m)
33.6 mm²
(2 AWG)
152 mm²
(300 MCM)
M8
200 kg-cm
(173 lb-in.)
(19.6 N-m)
VFD450ED43S
67.4 mm²
(2/0 AWG)
53.5 mm²
(1/0 AWG)
VFD300ED23S
107 mm²
(4/0 AWG)
53.5 mm²
(1/0 AWG)
VFD550ED43S
VFD370ED23S
152 mm²
(300 MCM)
85.0 mm²
(3/0 AWG)
VFD750ED43S
Table 4-5
NOTE:
 For UL installation compliance, select copper wires with voltage rating of 600V and temperature
resistance of 75°C.
 Choose terminal wire size as Figure 4-15 shows.
 Use insulated heat shrink tubing that is resistant to at least 600V to comply with UL and CSA
regulations (600 V, YDPU2), as Figure 4-16 shows.
 If you install at Ta 50°C environment, use copper wires with voltage rating of 600V and
temperature resistance of 75°C or 90°C.
 If you install at Ta 50°C above environment, use copper wires with voltage rating of 600V and
temperature resistance of 90°C or above.
 To be UL installation compliant, you must use copper wires when installing. The wire gauge is
based on temperature resistance of 75°C, in accordance with UL requirements and
recommendations. Do not reduce the wire gauge when using high-temperature resistant wire.
Figure 4-15 Figure 4-16
