Chapter 6 Optional Accessories | VFD-ED
6-13

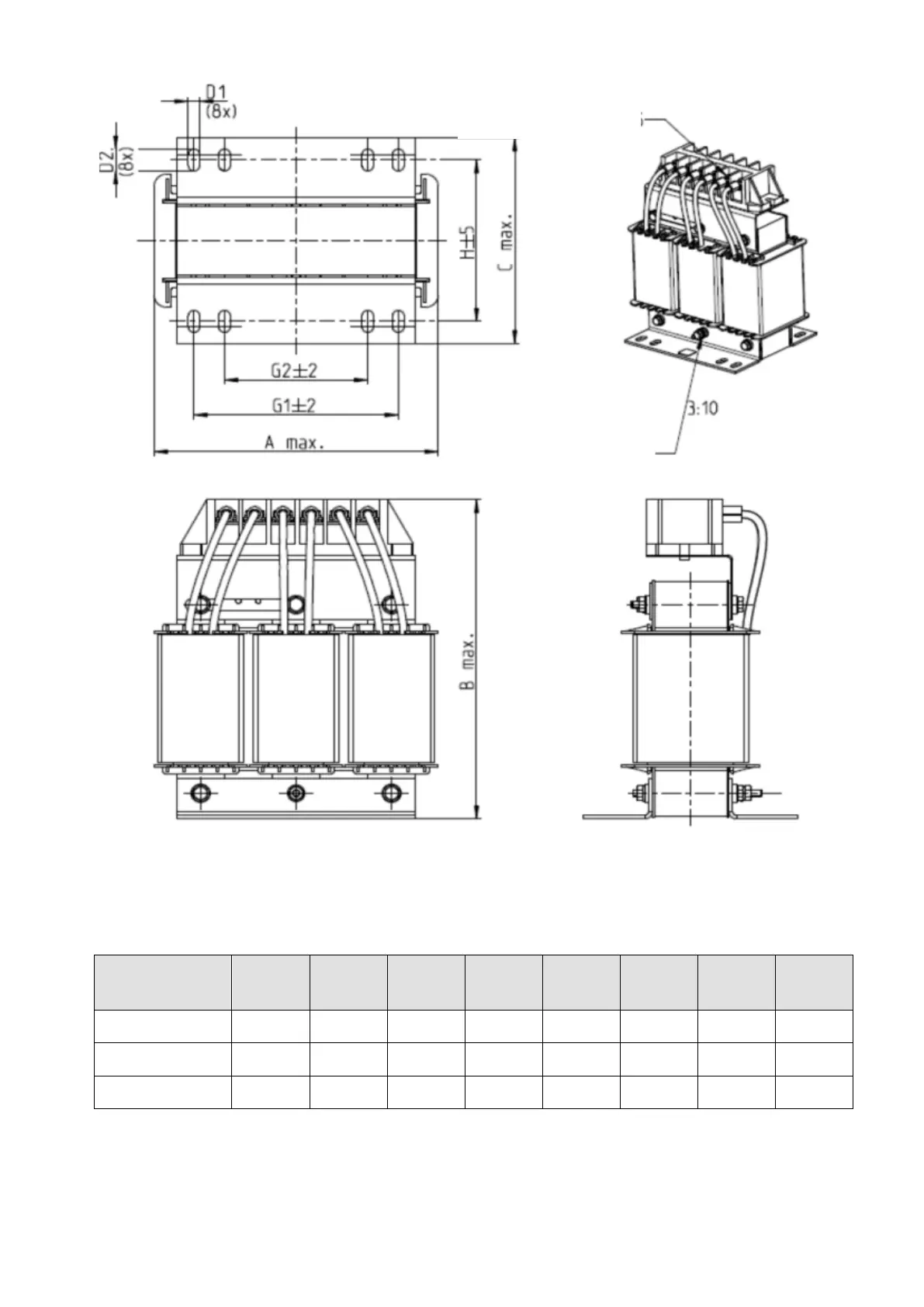

Figure 6-8
Unit: mm
Input Reactors
Delta Part #
A B C D1*D2 H G1 G2 PE D
DR025AP215 130 195 100 6*12 65 80.5 60 M4
DR033AP163 130 195 100 6*12 65 80.5 60 M4
DR049AP163 160 200 125 6*12 90 107 75 M4
Table 6-12
Tightening torque: F Nm
Installing screw: M5
PE MD
