Delta VFD-ED Series User Manual

Chapter 6 Optional Accessories | VFD-ED
6-20

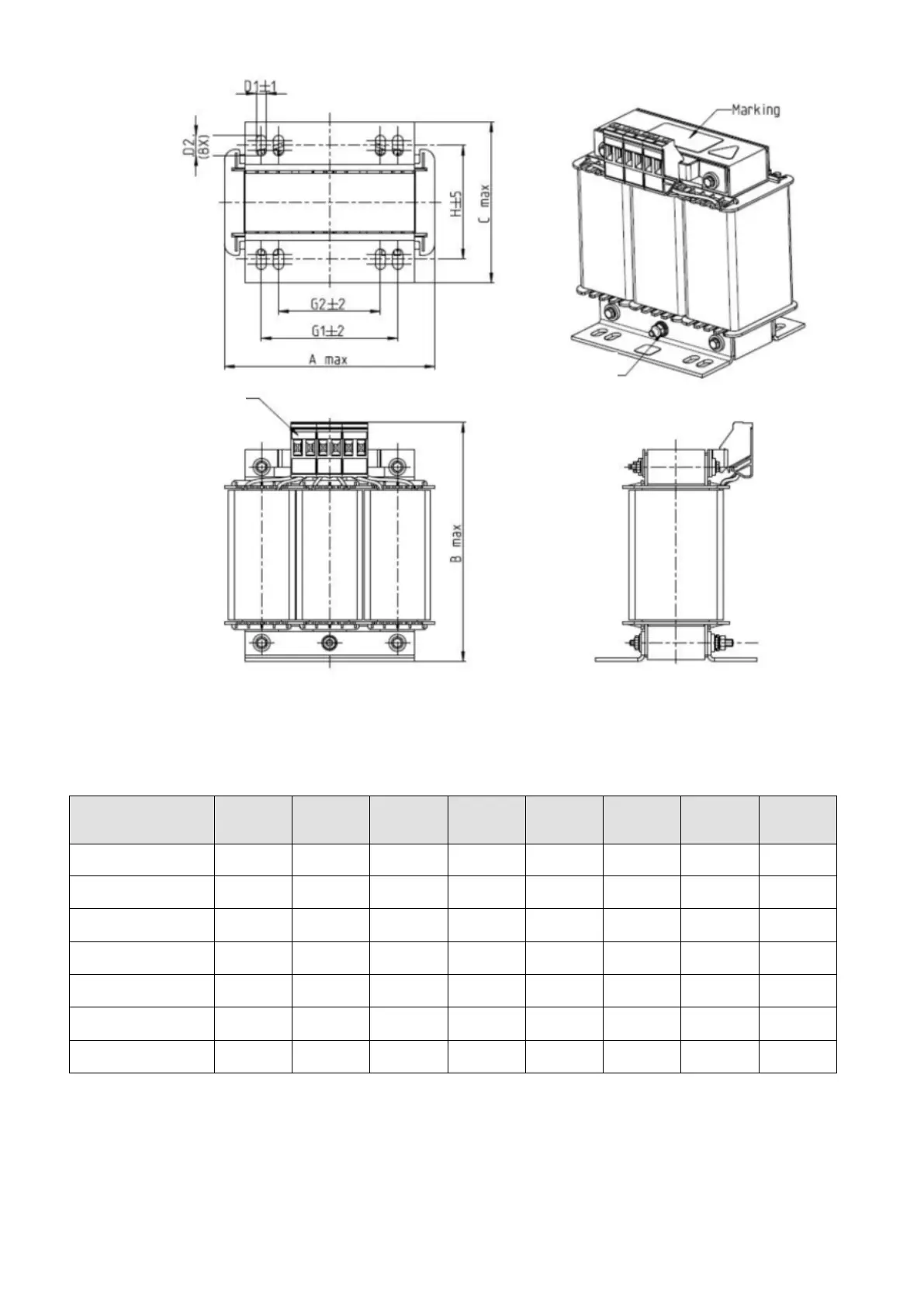

Figure 6-15
Unit: mm
Input Reactors
Delta Part #
A B C D1*D2 H G1 G2 PE D
DR003A0810 100 125 65 6*9 43 60 40 M4
DR004A0607 100 125 65 6*9 43 60 40 M4
DR006A0405 130 15 95 6*12 60 80.5 60 M4
DR009A0270 160 160 105 6*12 75 107 75 M4
DR010A0231 160 160 115 6*12 90 107 75 M4
DR012A0202 160 160 115 6*12 90 107 75 M4
DR018A0117 160 160 115 6*12 90 107 75 M4
Table 6-19
Tightening torque: F Nm
PE MD
Tightening torque: 0.6–0.8 Nm
