Chapter 6 Optional Accessories | VFD-ED

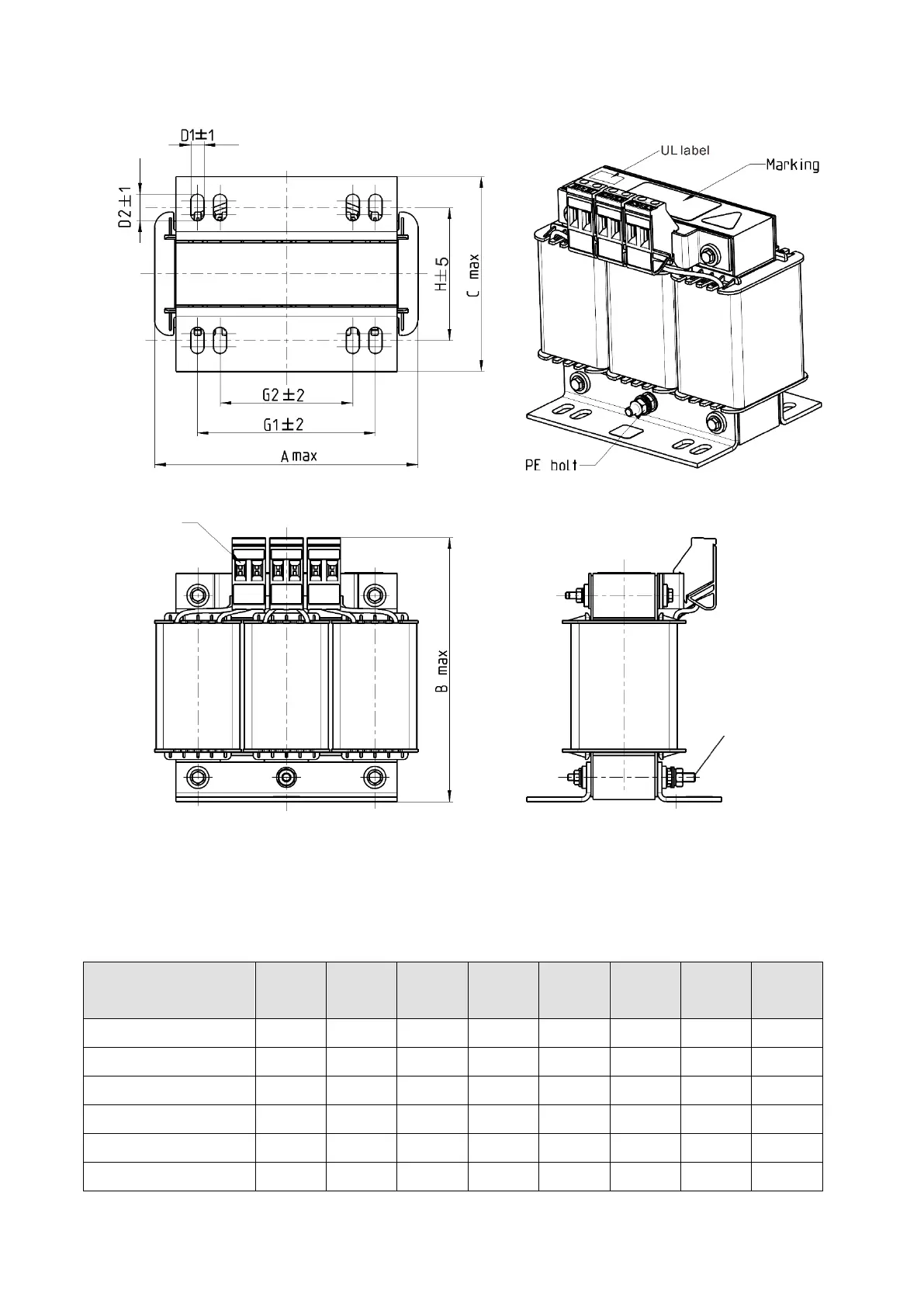

AC output reactor dimension and specifications:
Figure 6-21
Unit: mm
Output Reactors
Delta Part #
A B C D1*D2 E G1 G2 PE D
DR005L0254 96 110 70 6*9 42 60 40 M4
DR008L0159 120 135 96 6*12 60 80.5 60 M4
DR011L0115 120 135 96 6*12 60 80.5 60 M4
DR017LP746 120 135 105 6*12 65 80.5 60 M4
DR025LP507 150 160 120 6*12 88 107 75 M4
DR033LP320 150 160 120 6*12 88 107 75 M4
Table 6-25
Tightening torque: 0.6–0.8 Nm
Tightening torque: 1.0–1.2 Nm
Screw length must
not interfere with the
mounting holes.
To Next Page
