Chapter 6 Optional Accessories | VFD-ED

6-30

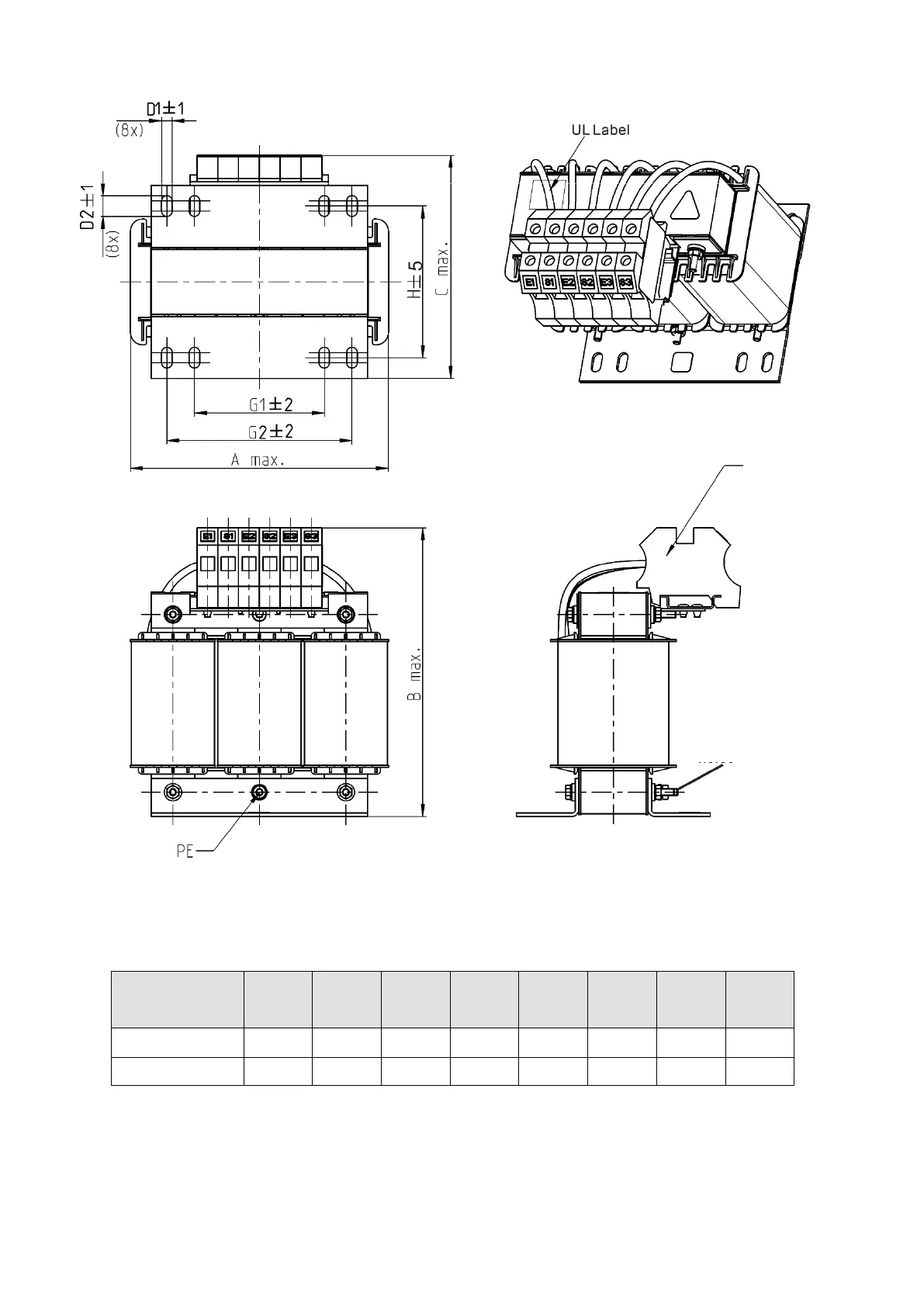

Figure 6-25

Unit: mm

Output Reactors

Delta Part #

A B C D1*D2 H G1 G2 PE D

DR038LP639 180 205 170 6*12 115 85 122 M4

DR045LP541 235 245 155 7*13 85 / 176 M6

Table 6-29

Screw length must

not interfere with the

mounting holes.

Terminal gauge: 16 mm

Tightening torque: 1.2–1.4 Nm
