Chapter 6 Optional Accessories | VFD-ED

6-31

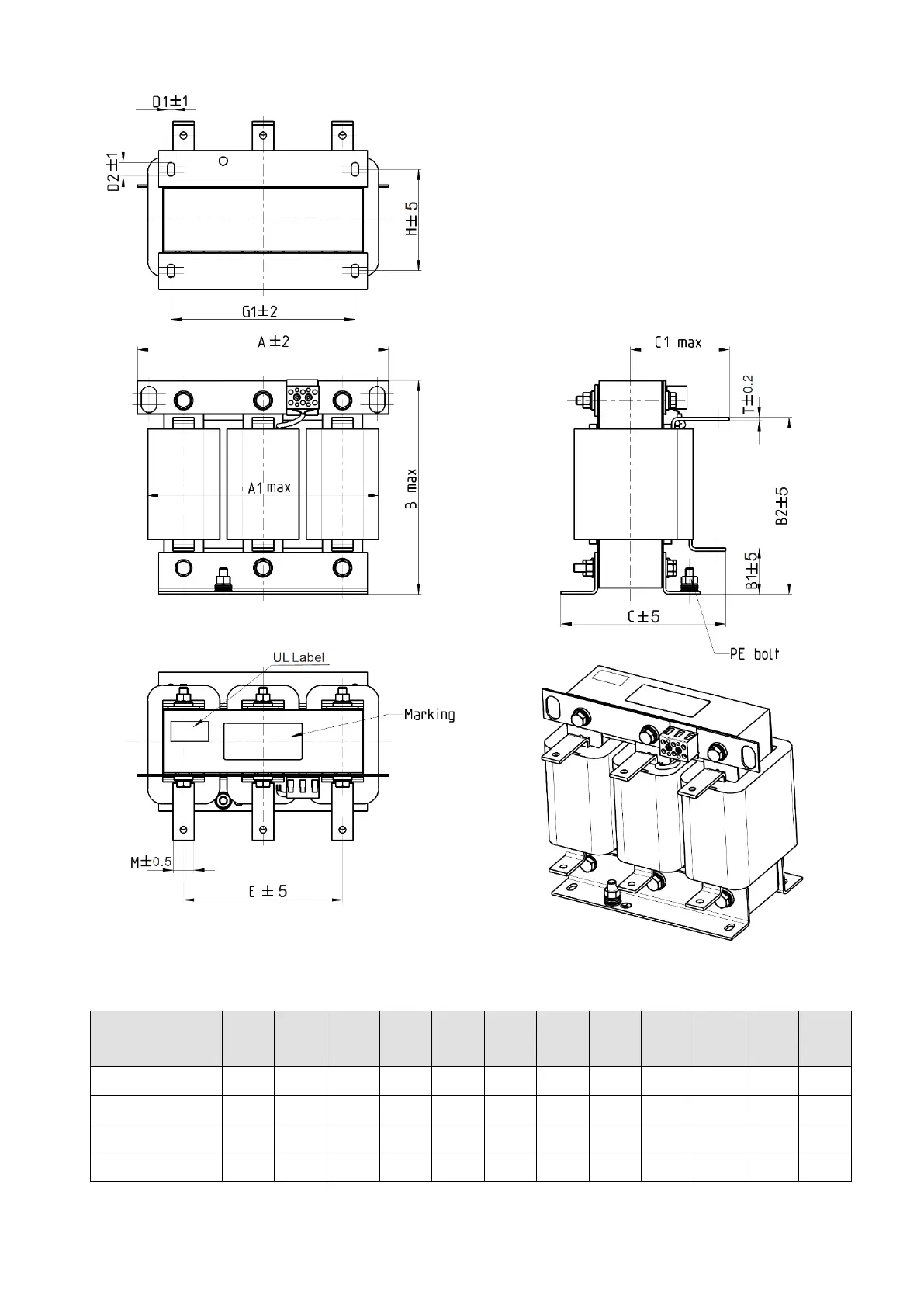

Figure 6-26

Unit: mm

Output Reactors

Delta Part #

A A1 B B1 B2 C C1 D1*D2

E G1 H M*T

DR060LP405 240 228 215 44 170 163 110 7*13 152 176 97 20*3

DR073LP334 250 235 235 44 186 174 115 11*18 160 190 124 20*3

DR091LP267 250 240 235 44 186 174 115 11*18 160 190 124 20*3

DR110LP221 270 260 245 50 192 175 115 10*18 176 200 106 20*3

Table 6-30
