Delta VFD-ED Series User Manual

Chapter 6 Optional Accessories | VFD-ED
6-34

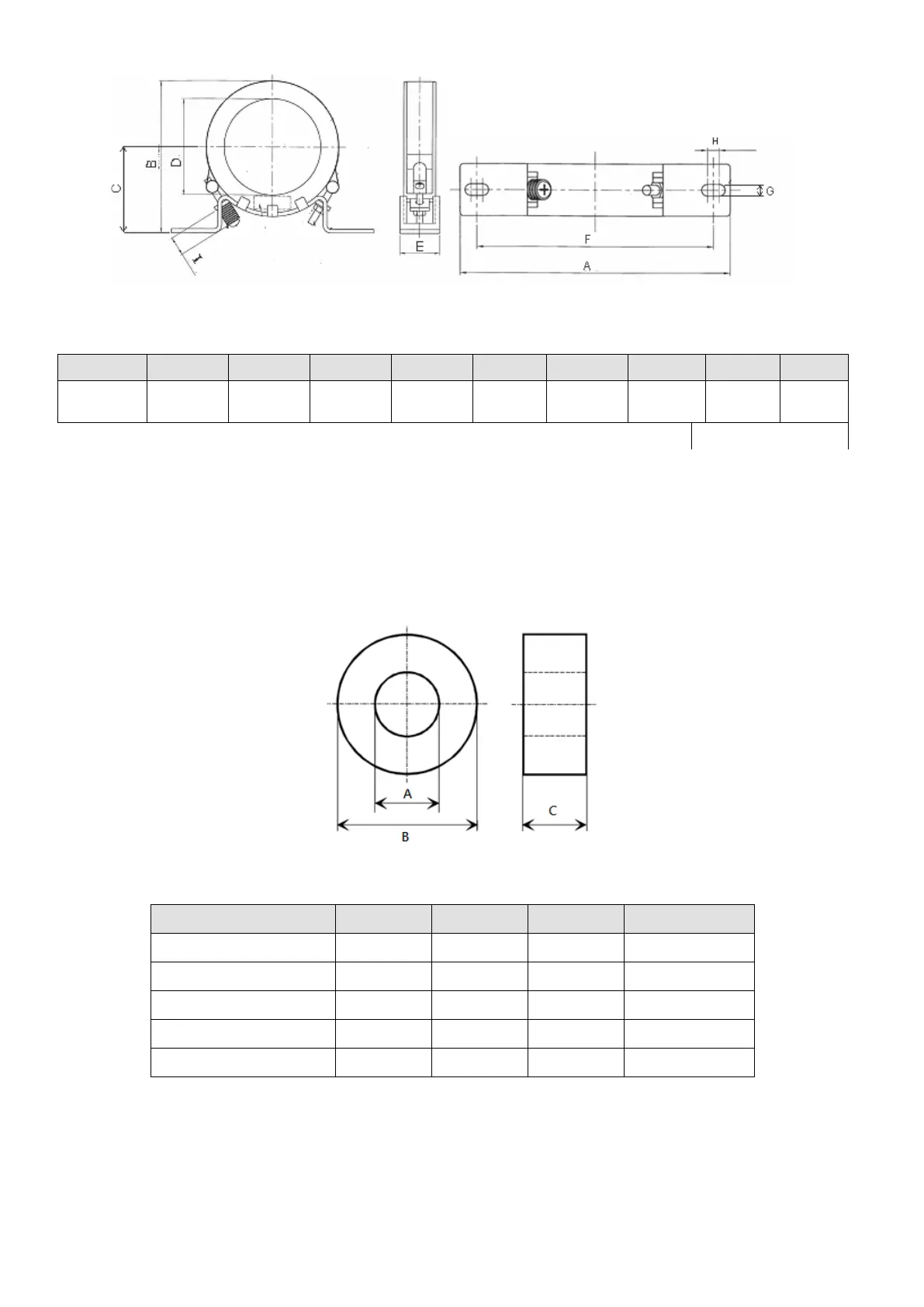

Figure 6-30
Unit: mm (inch)
Model A B C D E F G(Ø) H I
RF300X00A
241
(9.488)
217
(8.543)
114
(4.488)
155
(6.102)
42
(1.654)
220
(8.661)
6.5
(0.256)
7.0
(0.276)
20
(0.787)
Torque:40–45 kgf/cm
Table 6-34
B. Casing without mechanical fixed part
Adopts nanocrystalline core developed by VAC
○
R
, and has high initial magnetic permeability, high
saturation induction density, low iron loss and perfect temperature characteristic. If the zero phase
reactor does not need to be fixed mechanically, use this solution.
Figure 6-31
Unit: mm
Model A B C Function
T60006L2040W453 22.5 43.1 18.5 Motor wire
T60006L2050W565 36.3 53.5 23.4 Motor wire
T60006L2160V066 123.9 166.9 30.5 Motor wire
T60004L2016W620 10.7 17.8 8.0 Signal line
T60004L2025W622 17.5 27.3 12.3 Signal line
Table 6-35
