Delta VFD-ED Series User Manual

Chapter 6 Optional Accessories | VFD-ED
6-38

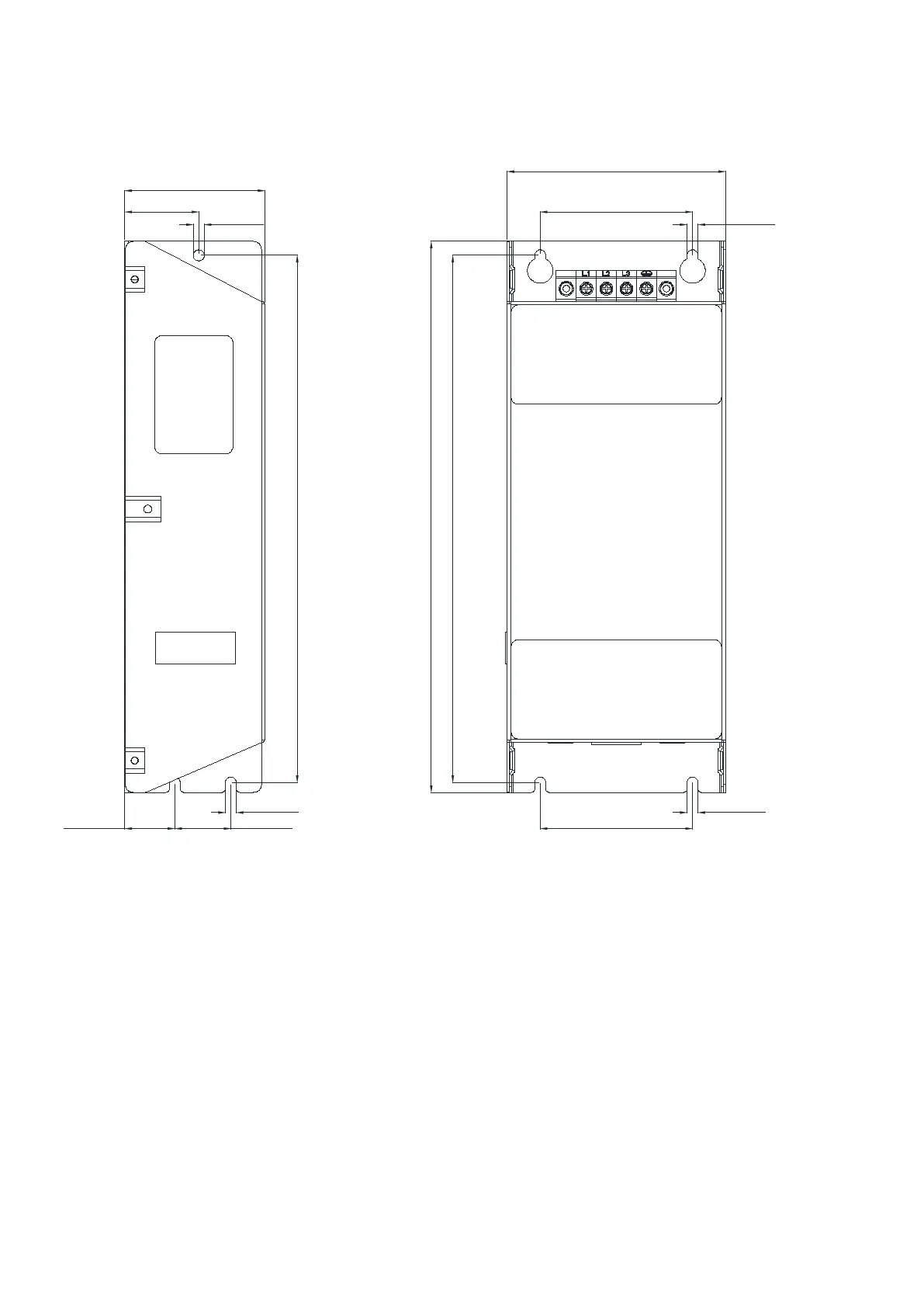

EMC Filter Dimension
EMC Filter Model #: EMF018A43A
Unit: mm [inch]
Figure 6-34
5.5 [0.22]
5.5 [0.22]
109.0 [4.29]
275.0 [10.83]
263.0 [10.35]
5.5 [0.22]
76.0 [2.99]
76.0 [2.99]
5.5 [0.22]
37.0 [1.46]
70.0 [2.76]
263.0 [10.35]
28.0 [1.10]25.0 [0.98]
