Delta VFD-ED Series - Page 90

Chapter 6 Optional Accessories | VFD-ED
6-39

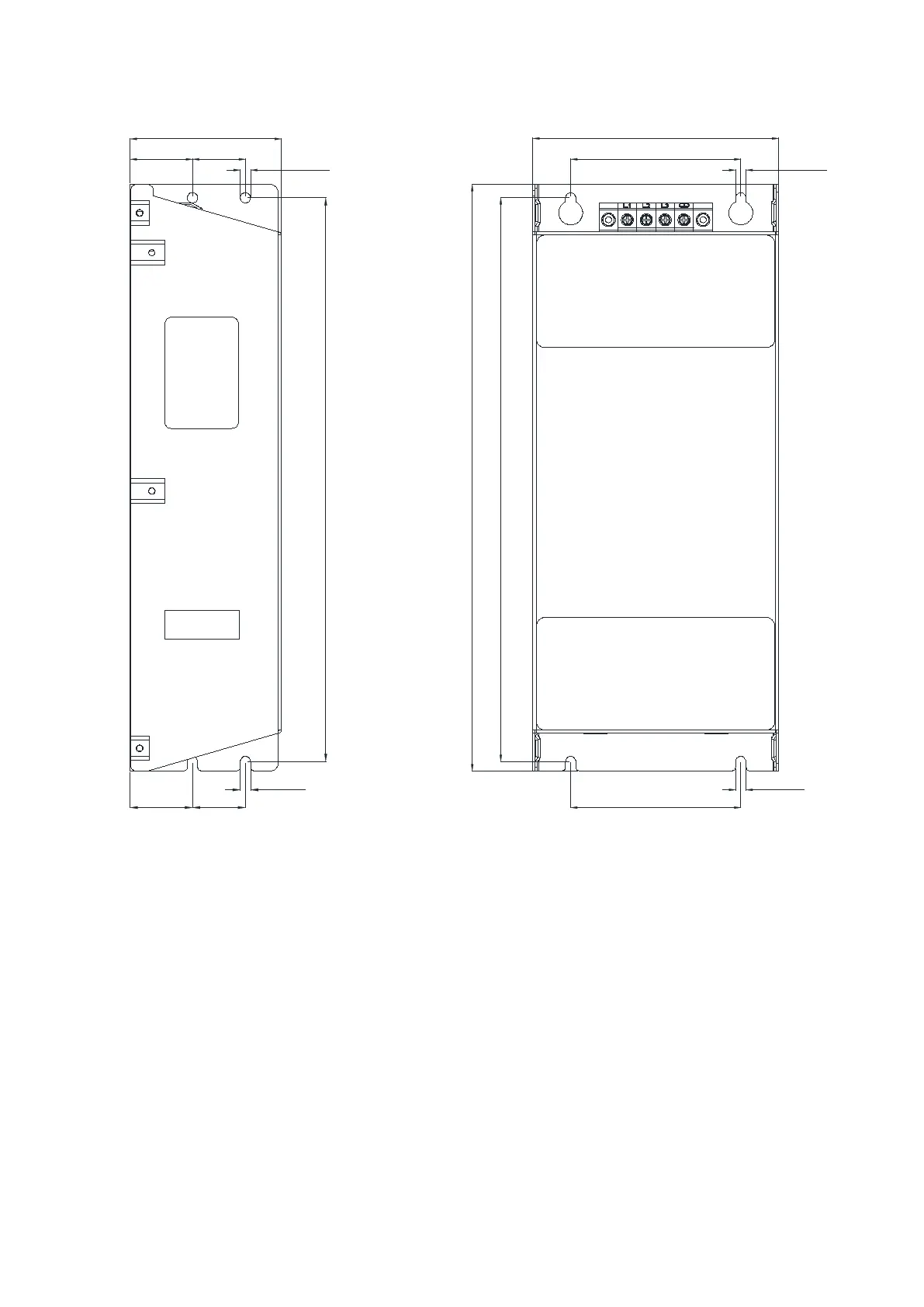

EMC Filter Model #: EMF035A23A, EMF033A43A Unit: mm [inch]
Figure 6-35
5.5 [0.22]
5.5 [0.22]
80.0 [3.15]
33.0 [1.30] 28.0 [1.10]
33.0 [1.30] 28.0 [1.10]
298.0 [11.73]
5.5 [0.22]
90.0 [3.54]
5.5 [0.22]
130.0 [5.12]
90.0 [3.54]
310.0 [12.20]
298.0 [11.73]
