Chapter 2 Installation and Wiring
VFD-EL-W
2-11

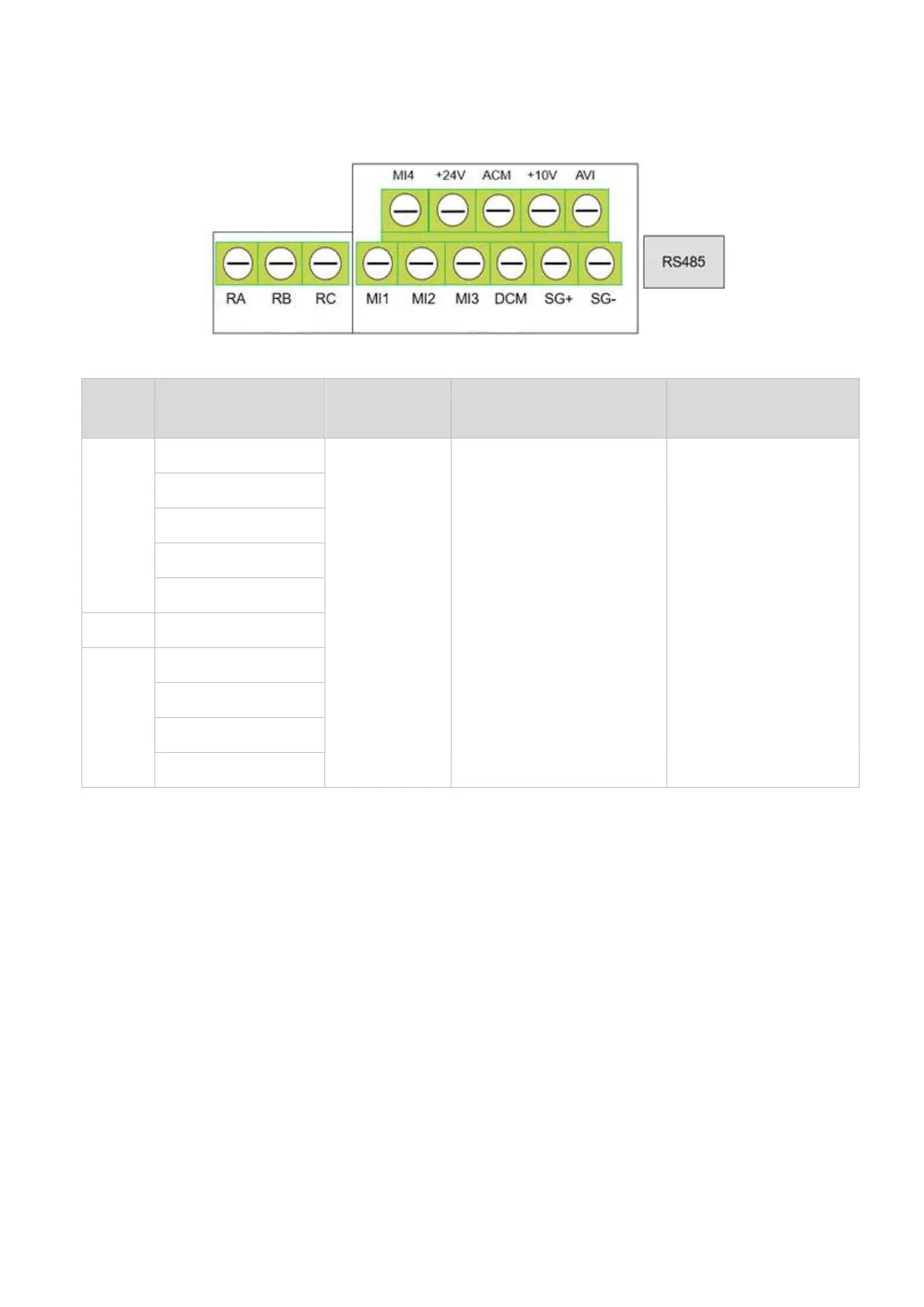

Specification for the control terminals
one-row terminal
tw o -ro w termin a l
Frame
Model Wire
One-row terminal torque
(±10%)
Two-row terminal (±10%)
A1
VFD002EL21W(-1)
16~24 AWG
[1.3~0.2mm
2
]
4 kgf-cm
[3.5 lbf-in]
[0.4 N-m]
7 kgf-cm
[6.2lbf-in]
[0.7 N-m]
VFD004EL21W(-1)
VFD004EL43W(-1)
VFD007EL21W(-1)
VFD007EL43W(-1)
A2 VFD015EL43W(-1)
B
VFD015EL21W(-1)
VFD022EL21W(-1)
VFD022EL43W(-1)
VFD040EL43W(-1)
