Chapter 12 Description of Parameter SettingsMS300 (High Speed Model)
12-02-2

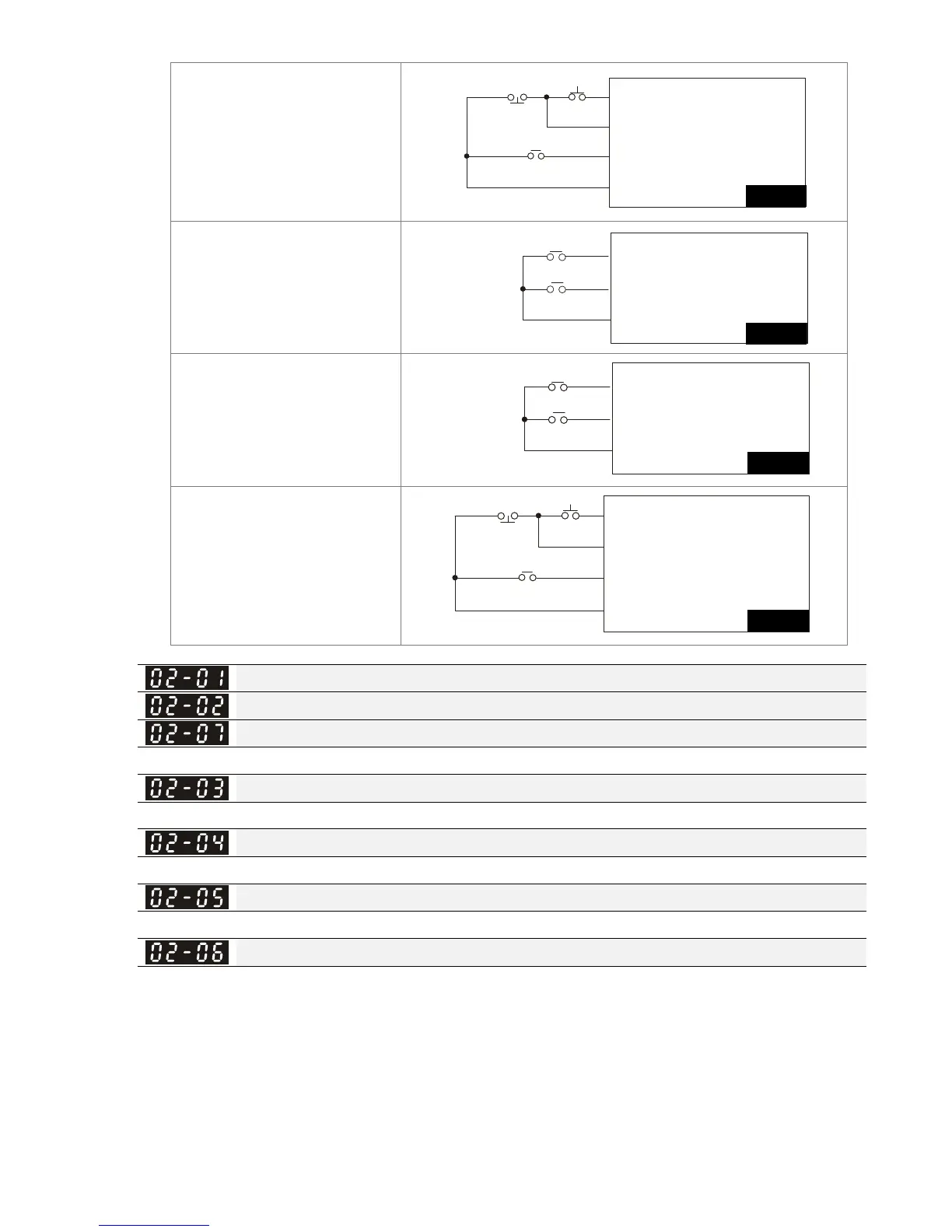

Setting value: 3
3-wire
REV/FWD: “OPEN”: FWD
“CLOSE”: REV
DCM
STOP
REV / FWD
RUN
M300
“OPEN”: STO P
“CLOSE”: RUN
MI1
MI3
MI2
Setting value: 4
2-wire
Quick Start
M300
FWD / STOP
REV / STOP
“OPEN”: STOP
“CLOSE”: FWD
“OPEN”: STOP
“CLOSE”: REV
DCM
MI1
MI2
Setting value: 5
2-wire
Quick Start
M300
RUN / STOP
FWD / REV
“OPEN”: STOP
“CLOSE”: RUN
“OPEN”: FWD
“CLOSE”: REV
DCM
MI1
MI2
Setting value: 6
3-wire
Quick Start
REV/FWD: “OPEN”: FWD
“CLOSE”: REV
DCM
STOP
REV / FWD
RUN
M300
“OPEN”: STOP
“CLOSE”: RUN
MI1
MI3
MI2
Multi-function Input Command 1 (MI1)
Multi-function Input Command 2 (MI2)
Multi-function Input Command 7 (MI7)
Factory Setting: 0
Multi-function Input Command 3 (MI3)
Factory Setting: 1
Multi-function Input Command 4 (MI4)
Factory Setting: 2
Multi-function Input Command 5 (MI5)
Factory Setting: 3
Multi-function Input Command 6 (MI6)
Factory Setting: 4
Settings 0: No function
1: Multi-stage speed command 1 / multi-stage position command 1
2: Multi-stage speed command 2 / multi-stage position command 2
3: Multi-stage speed command 3 / multi-stage position command 3
4: Multi-stage speed command 4 / multi-stage position command 4
5: Reset
MS300
MS300
MS300
MS300
