Chapter 12 Description of Parameter SettingsMS300 (High Speed Model)
12-02-4
When multi-function input terminal MI7 = 0, MI7 is designated as pulse input terminal.
If Pr. 02-00 is set to 3-wire operation control, terminal MI3 is for STOP contact. The function set
will be invalid automatically.
Summary of function settings
(Take the N.O. normally opened contact for example, ON: contact is closed, OFF: contact is open)

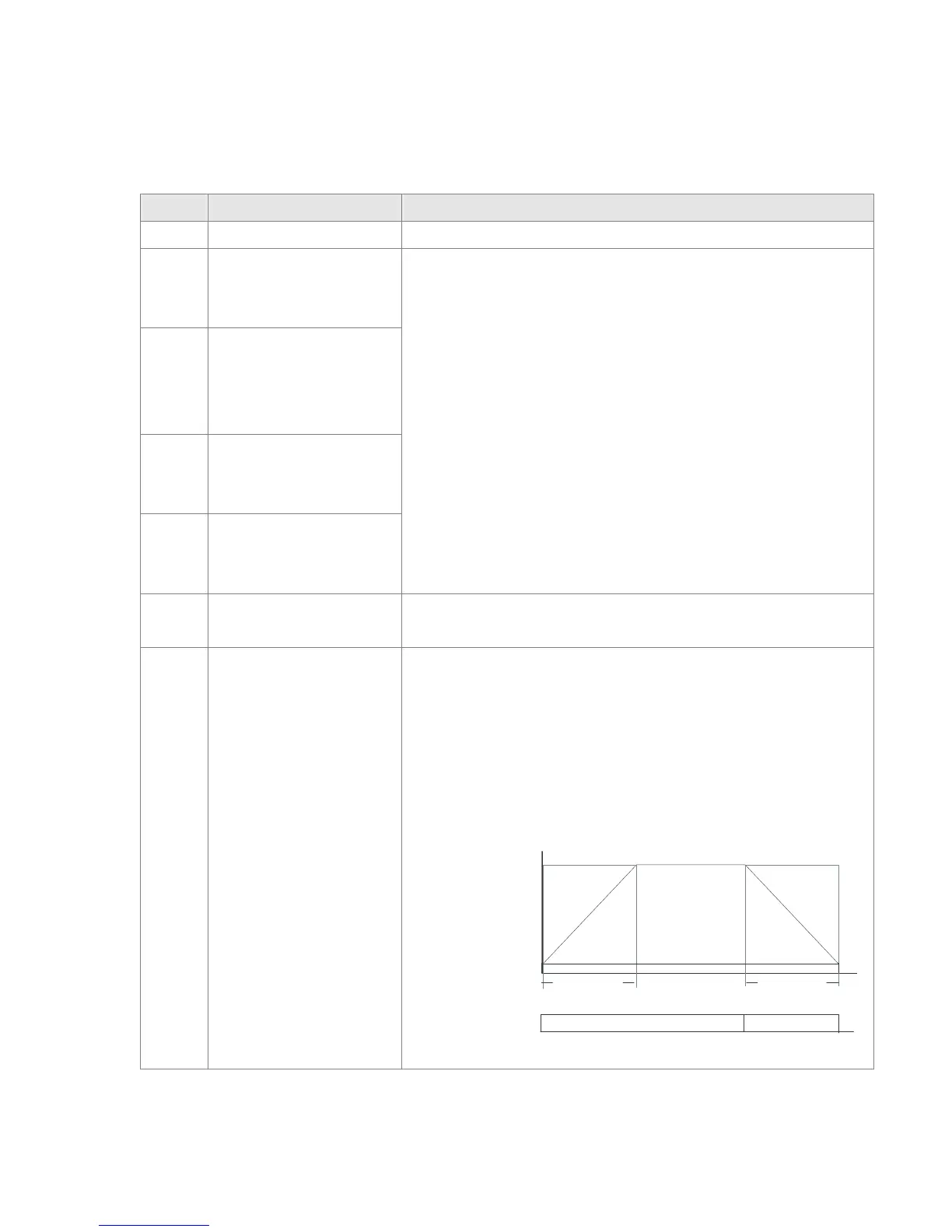

Settings Functions Descriptions
0 No Function
1
Multi-stage speed
command 1 / multi-stage
position command 1
15-stages speed or 15 positions could be set by the digital status
of these 4 terminals. 16-steps speed could be operate if the
master speed is included when setting as 15 steps speed. (Refer
to Parameter 04)
2
Multi-stage speed
command 2 / multi-stage
position command
2multi-stage
3
Multi-stage speed
command 3 / multi-stage
position command 3
4
Multi-stage speed
command 4 / multi-stage
position command 4
5 Reset
Use this terminal to reset the drive after the error of the drive is
eliminated.
6
JOG operation
KPC-CC01 required
(optional)
This function is valid when the source of operation command is
external terminals.
The JOG operation executes when the drive stops completely.
During running, the operation direction can be changed, and
STOP key on the keypad is valid. Once the external terminal
receives OFF command, the motor will stop by the JOG
deceleration time. Refer to Pr. 01-20~01-22 for details.
01-20
01 - 2 1
ON
OFFMIx-GND
01-22
JOG frequency
01-07
Min. output frequency
JOG accel. time
JOG decel. time
Mix: external terminal
