Chapter 12 Description of Parameter SettingsMS300 (High Speed Model)
12-02-13

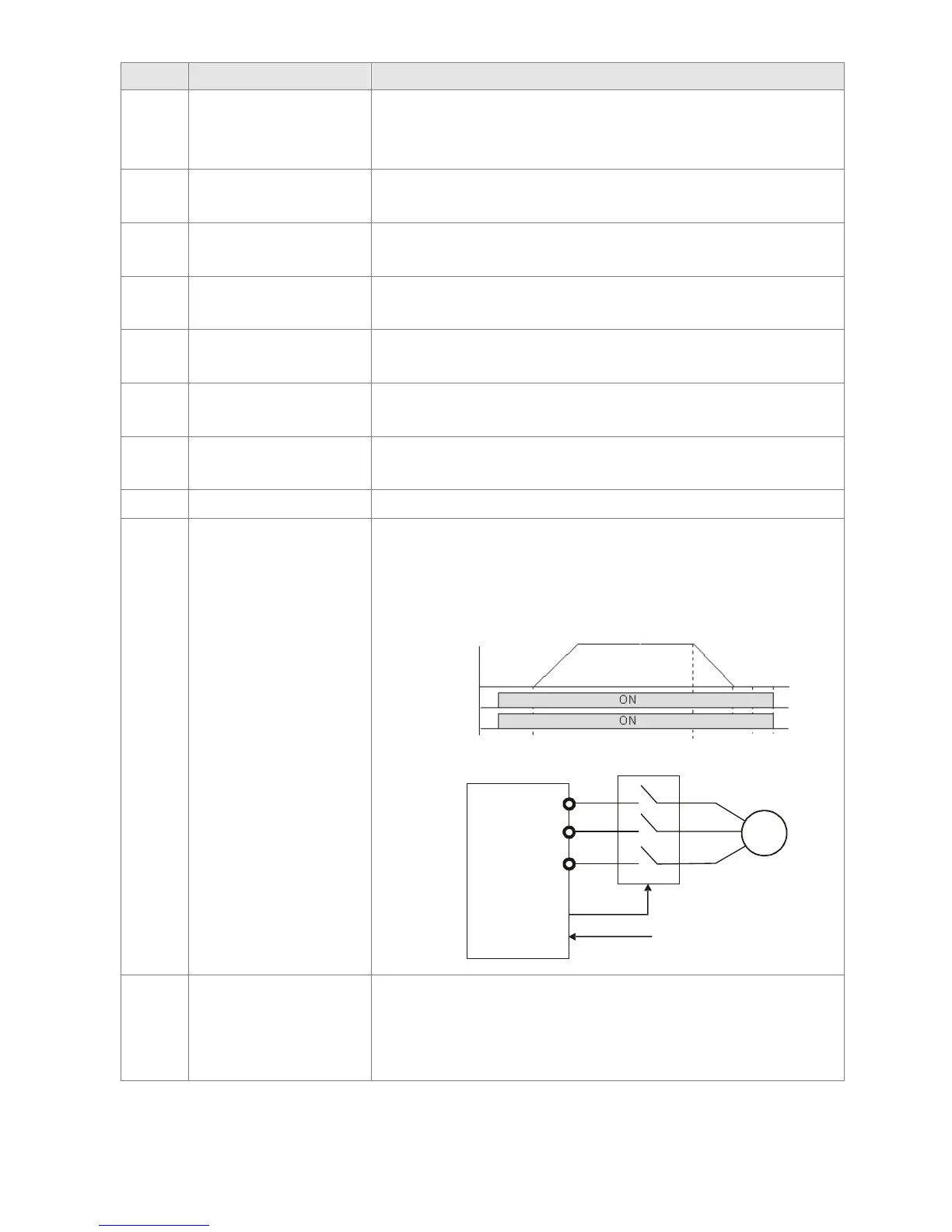

Settings Functions Descriptions
34
Zero speed include stop
(actual output
frequency)
Active when the actual output frequency is 0 or stop.
35
Error output selection 1
(Pr. 06-23)
Active when Pr. 06-23 is ON.
36
Error output selection 2
(Pr. 06-24)
Active when Pr. 06-24 is ON.
37
Error Output Selection 3
(Pr. 06-25)
Active when Pr. 06-25 is ON.
38
Error Output Selection 4
(Pr. 06-26)
Active when Pr. 06-26 is ON.
40
Speed attained
(including Stop)
Active when the output frequency attains to setting frequency or
stop.
43
Motor actual speed
output < Pr. 02-47
Active when motor actual speed is less than Pr. 02-47.
44 Low current output This function is used with Pr. 06-71 ~ Pr. 06-73.
45
UVW magnetic
contactor ON / OFF
switch
Use this function with external terminal input = 49 (drive enabled)
and external terminal output = 45 (electromagnetic contractor
enabled), then the magnetic contactor will be ON or OFF according
to the status of drive.
Enabl e
Contactor
Motor
U(T1)
V(T2 )
W(T3)
IM
3~
M
C
MOx=45
MIx=49
AC Drive
46
Master dEb signal
output
When dEb arises at Master, MO will send a dEb signal to Slave.
Output the message when dEb occurs to Master. This will ensure
that dEb also occurs to Slave. Then Slave will follow the
decelerate time of Master to stop simultaneously.
