Chapter 12 Description of Parameter SettingsMS300 (High Speed Model)
12-03-14

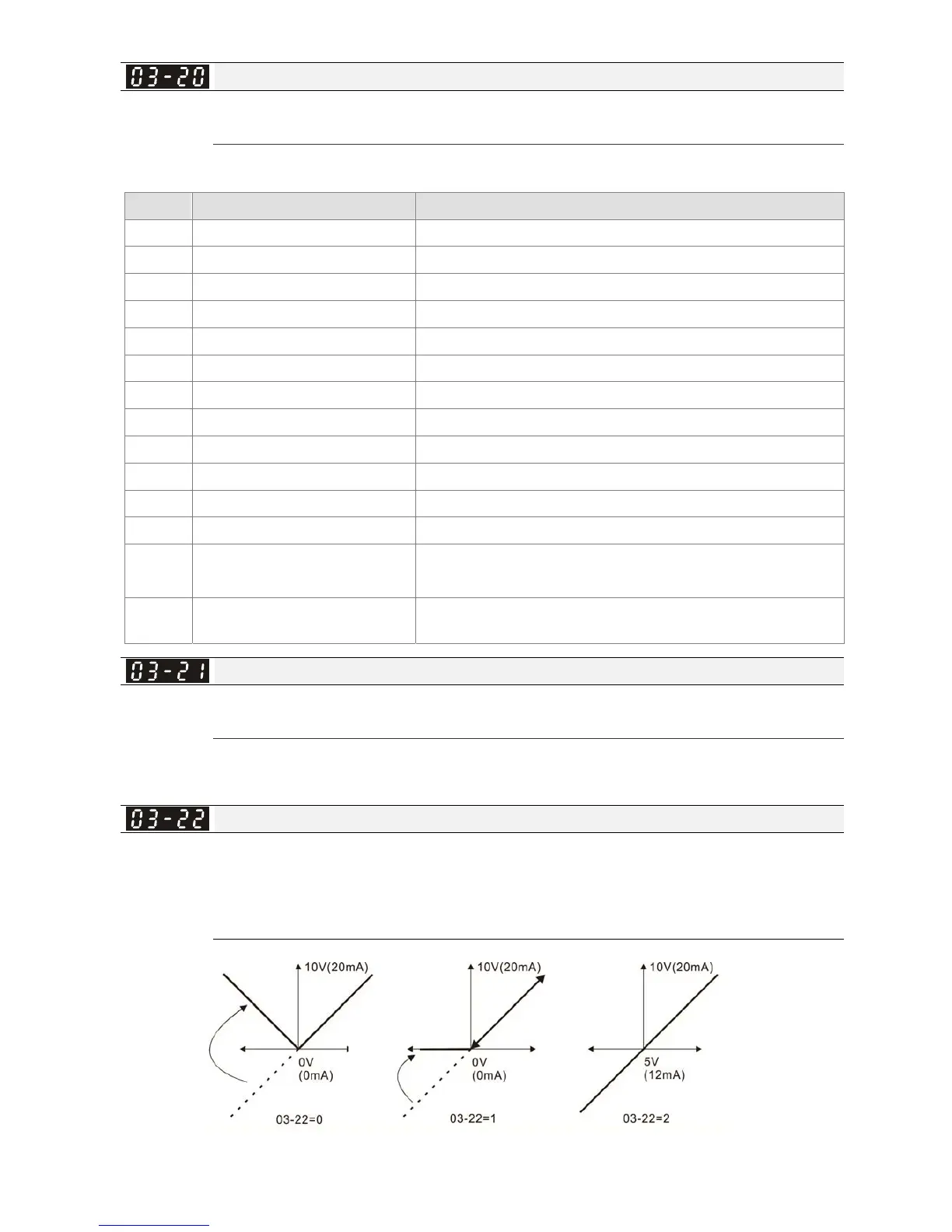

Multi-function Output 1 (AFM)
Factory Setting: 0
Settings 0~23
Function Chart
Settings Functions Descriptions
0 Output frequency (Hz) Max. frequency Pr. 01-00 is regarded as 100 %.
1 Frequency command (Hz) Max. frequency Pr. 01-00 is regarded as 100 %.
2 Motor speed (Hz) Max. frequency Pr. 01-00 is regarded as 100 %
3 Output current (rms) (2.5 X rated current) is regarded as 100 %
4 Output voltage (2 X rated voltage) is regarded as 100 %
5 DC-BUS voltage 450V (900V) = 100 %
6 Power factor -1.000~1.000 = 100 %
7 Power (2 X rated voltage) is regarded as 100 %
9 AVI 0~10 V = 0~100 %
10 ACI 4~20 mA = 0~100 %
20 CANopen analog output For CANopen communication analog output
21 RS-485 analog output For InnerCOM analog output
22
Communication card analog
output
For communication analog output (CMM-MOD01,
CMM-EIP01, CMM-PN01, CMM-DN01)
23 Constant voltage output
Pr. 03-32 controls voltage/current output level
0~100 % of Pr. 03-32 corresponds to 0~10V of AFM.
Gain of Analog Output (AFM)
Factory Setting: 100.0
Settings 0~500.0 %
This function is used to adjust the voltage level outputted to analog meter head from analog
signal (Pr. 03-20) output terminal AFM of drive.
Analog Output when in REV Direction (AFM)
Factory Setting: 0
Settings 0: Absolute value of output voltage
1: Reverse output 0 V; Positive output 0~10 V
2: Reverse output 5~0 V; Positive output 5~10 V
Analog output direction selection
Freq. Freq.
Freq.
