Chapter 12 Description of Parameter SettingsMS300 (High Speed Model)
12-06-5


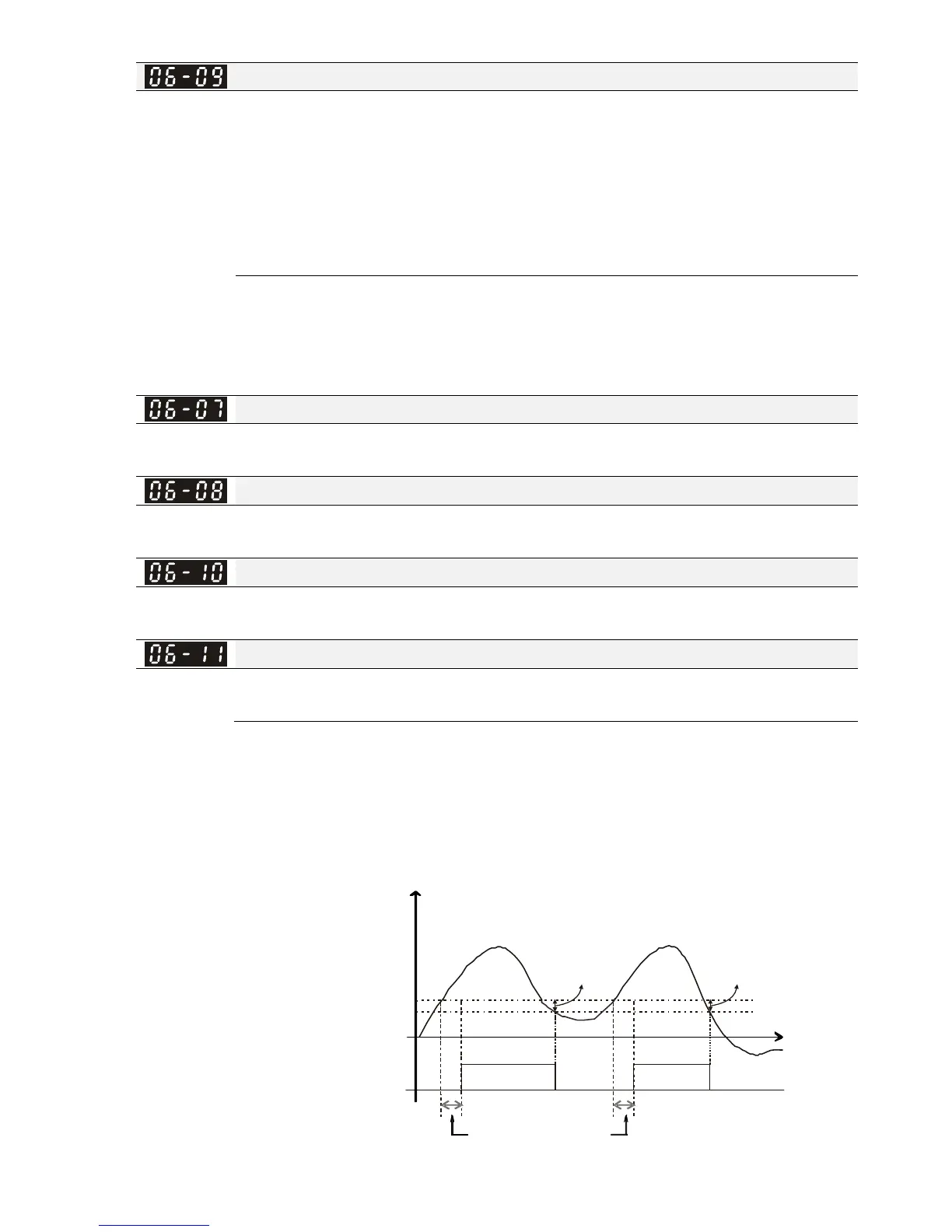

Over-torque Detection Selection (Motor 2)
Factory Setting: 0
Settings 0: No function
1: Continue operation after Over-torque detection during constant speed
operation
2
: Stop after Ove
r
-torque detection during constant speed operation
3: Continue operation after Ove
r
-torque detection during RUN
4
: Stop after Over-torque detection during RUN
 When Pr. 06-06 and Pr. 06-09 are set to 1 or 3, warning message will be displayed but there will
not be an abnormal record.
 When Pr. 06-06 and Pr. 06-09 are set to 2 or 4, warning message will be displayed and there will
be an abnormal record.

Over-torque Detection Level (Motor 1)
Factory Setting: 120
Settings 10 to 250 % (100 % corresponds to the rated current of the drive)

Over-torque Detection Level (Motor 1)
Factory Setting: 0.1
Settings 0.0~60.0 sec.

Over-torque Detection Level (Motor 2)
Factory Setting: 120
Settings 10~250 % (100 % corresponds to the rated current of the drive)

Over-torque Detection Time (Motor 2)
Factory Setting: 0.1
Settings 0.0~60.0 sec.
 When the output current exceeds over-torque detection level (Pr. 06-07 or Pr. 06-10) and also
exceeds over-torque detection time (Pr. 06-08 or Pr. 06-11), the over-torque detection will follow
the setting of Pr. 06-06 and Pr. 06-09.
 When Pr. 06-06 or Pr. 06-09 is set to 1 or 3, there will be ot1 / ot2 warning displayed while the
drive will keep running. The warning will be off only until the output current is smaller than 5 % of
the over-torque detection level.
ON ON
5% 5%
Output current
Over-torque
detection time
06-08 (06-11)
06-07 (06-10)
06 07 (06 10)*95%--
Over-torque
detection level
Multi-function output
terminal = 7 or 8
