Chapter 12 Description of Parameter SettingsMS300 (High Speed Model)
12-06-15

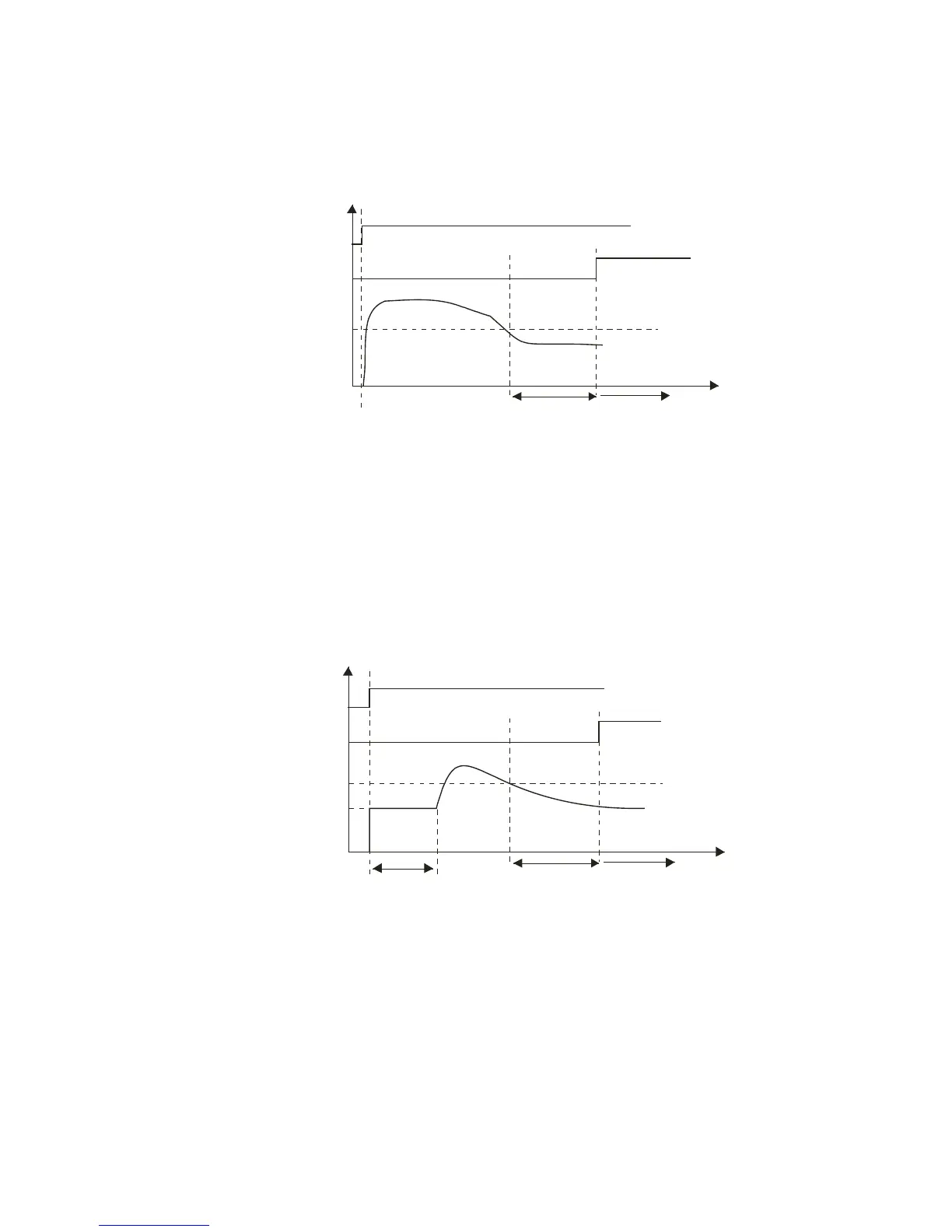

Status 1: The drive is in operation
When any phase is less than Pr. 06-47 setting level and exceeds Pr. 06-46 setting time, the
drive will execute according to Pr. 06-45 setting.
Pr.06-46
Pr.06-47
OPHL
Drive’s st atus
OPHL detection
Output current Time
Operation command
Whe n OPHL, Pr06-45 acts
Status 2: The drive is in stop; Pr. 06-48 = 0; Pr. 07-02 ≠ 0
After the drive starts, DC brake will be applied according to Pr. 07-01 and Pr. 07-02. During this
period, OPHL detection will not be conducted. After DC brake is completed, the drive starts to
run, and conducts the OPHL protection as mentioned in status 1.
Pr.06-46
Pr.06-4 7
OPHL
Pr.07-0 1
