Chapter 16 PLC Function ApplicationsMS300 (High Speed Model)
16-8

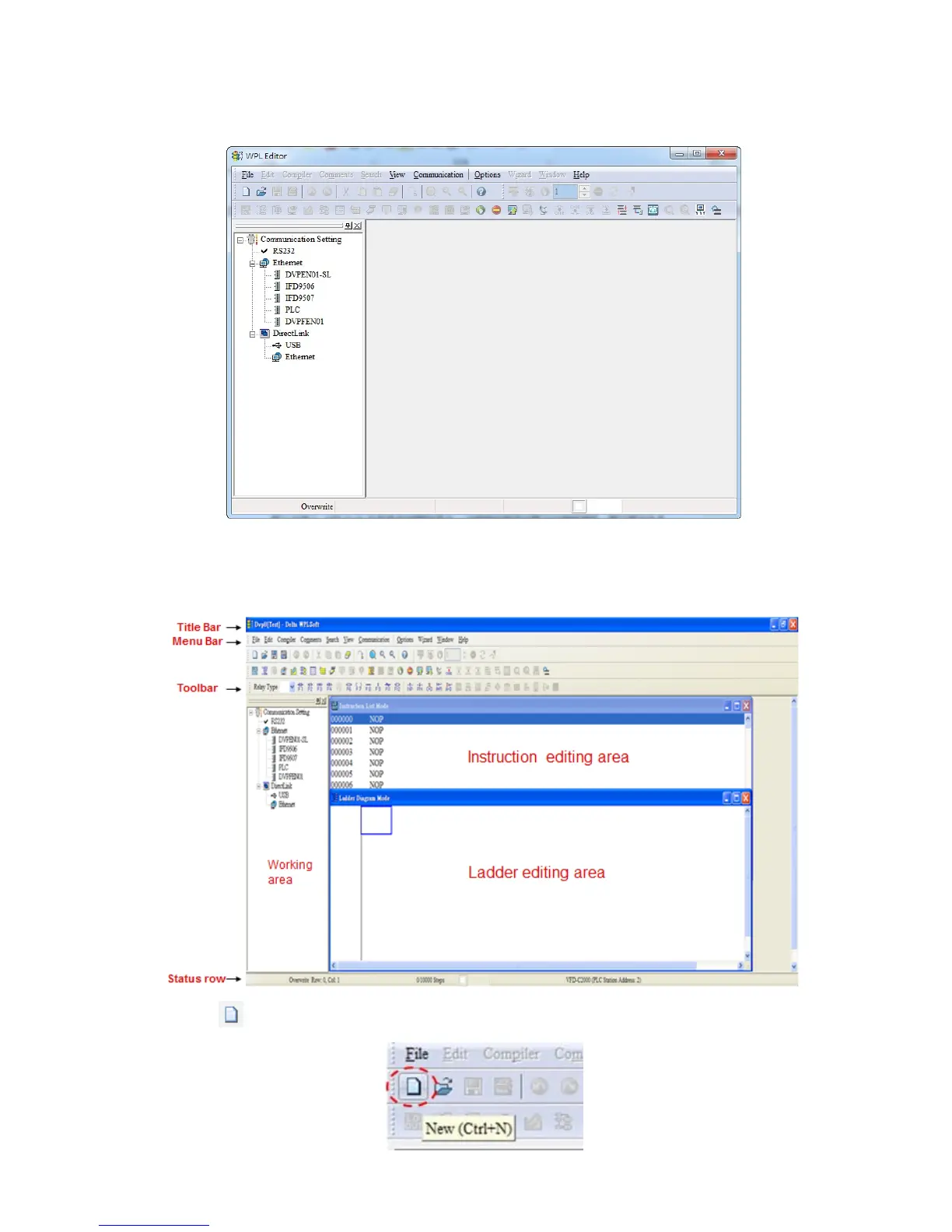

The WPL editing window will appear after 3 seconds (see figure below). When running WPLSoft for
the first time, before "New file" has been used, only the "File (F)," "Communications (C)," View (V),"
"Options (O)," and "Help (H)" columns will appear on the function toolbar.
After running WPLSoft for the second time, the last file edited will open and be displayed in the
editing window. The following figure provides an explanation of the WPLSoft editing software
window:
Click on the
icon on the toolbar in the upper left part of the screen: opens new file (Ctrl+N)
