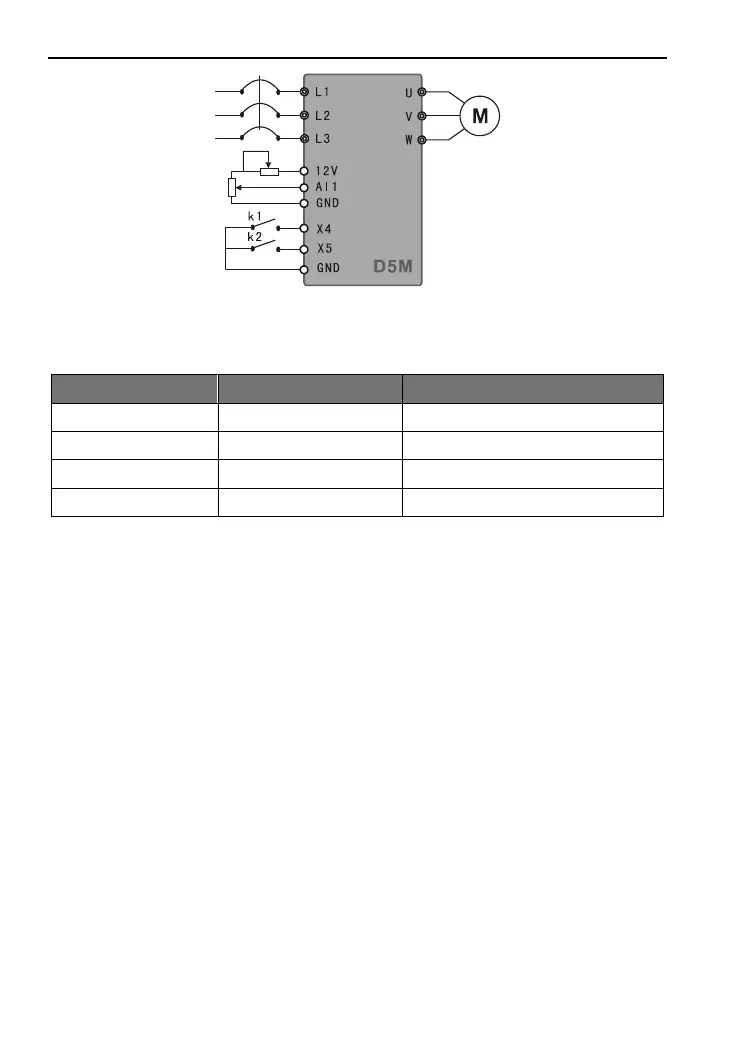

Figure F-8 Analog and Multi-segment Joint Application Wiring Diagram
[Description] Multi-function terminal can be used for reverse switching and the panel
for forward/reverse switching (in this case, switching via panel).
K1 state
K2 state
Operating frequency
OFF
OFF
Set via potentiometer
ON
OFF
Segment-speed II (15Hz)
OFF
ON
Segment-speed III (30Hz)
ON
ON
Segment-speed IV (25Hz)
