D1000 Installation and Service Manual 10
Home LAB-110073 Rev. 3
NFPA101 FRONT/REAR (F/R) DISCHARGE INSTALLATION
calibration of the DENLAR
D1000 was engineered to comply with the
requirements of the NFPA Life Safety Code, related
to residential cooking appliances used in non-
production cooking environments. Due to the
specific performance requirements in the code, the
NFPA101 version of the D1000 differs slightly from
the standard calibration. Refer to this section for
NFPA101 Front/Rear version-specific information.

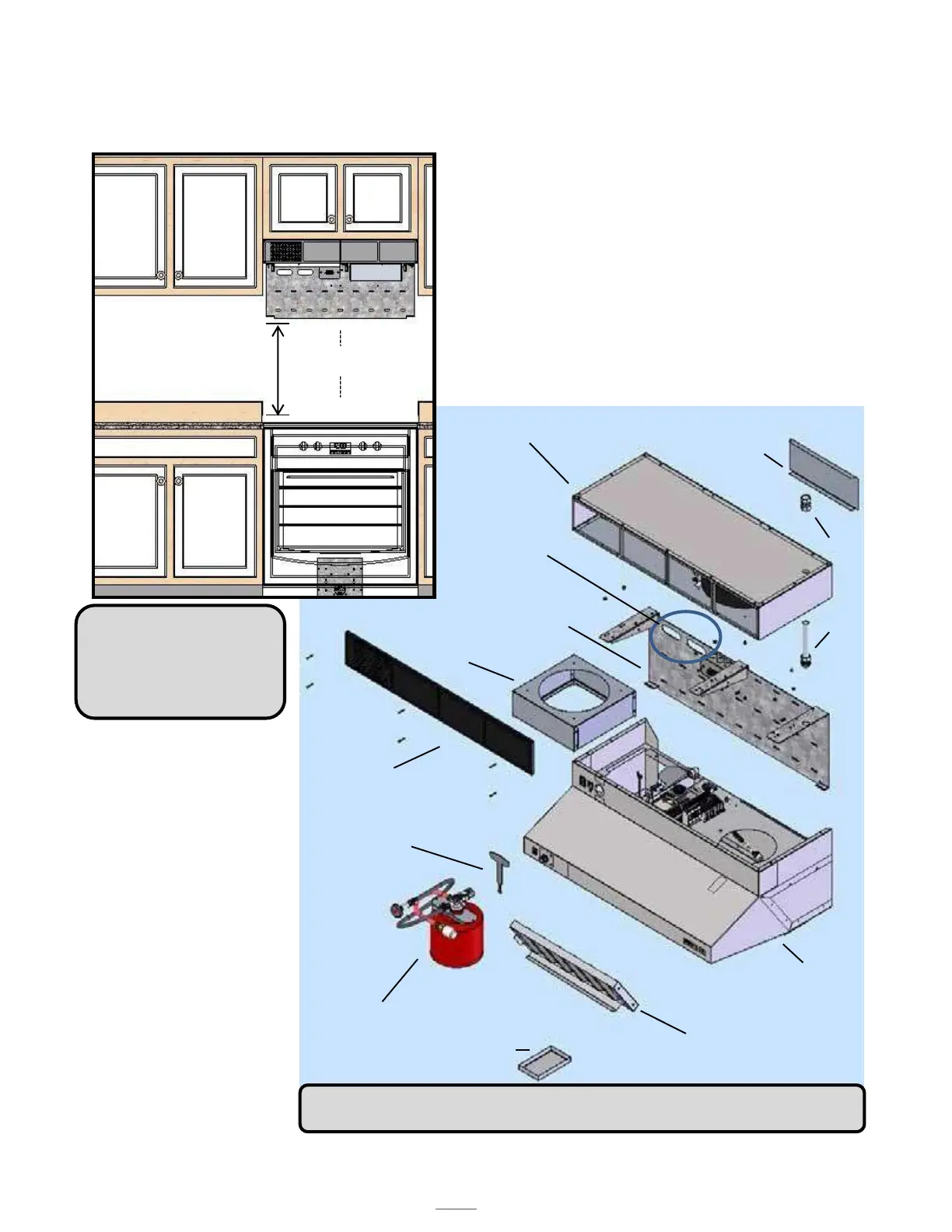

Fan Box
(NFPA 101)
Duct Access (Remove plate for rear
exhaust configuration)
MPK
Min
Max
D1030
24"
30"
D1036
30"
36"
Installation Heights
Mounting Bracket
Duct Collar
Front Grille
(F configuration)
Safety Key
MPK
Extinguisher Tank
D1000 Hood
Stainless Steel Grease Filter
Stainless Steel Grease Tray
The NFPA101 versions of
the D1000-F and D1000-
R are identical barring the
rear’s (R) need for
ducting to pass through
the exterior wall. Where
the (R) expels vapor
through the rear of the
hood the fascia of the fan
box is a continuous
stainless steel cover.
NOTE: The NFPA101
versions of the D1000-D
does not change the hood
as the fans are installed
remotely.
NOTE: The NFPA101 recirculating option is not approved for use in installations Group
2 occupancies per section 505.3 of the 2018 version of the
Opening ports
Input/output supply
Wires running
inside of wall.
To Next Page
