Denon AVR-1311 Service Manual

108

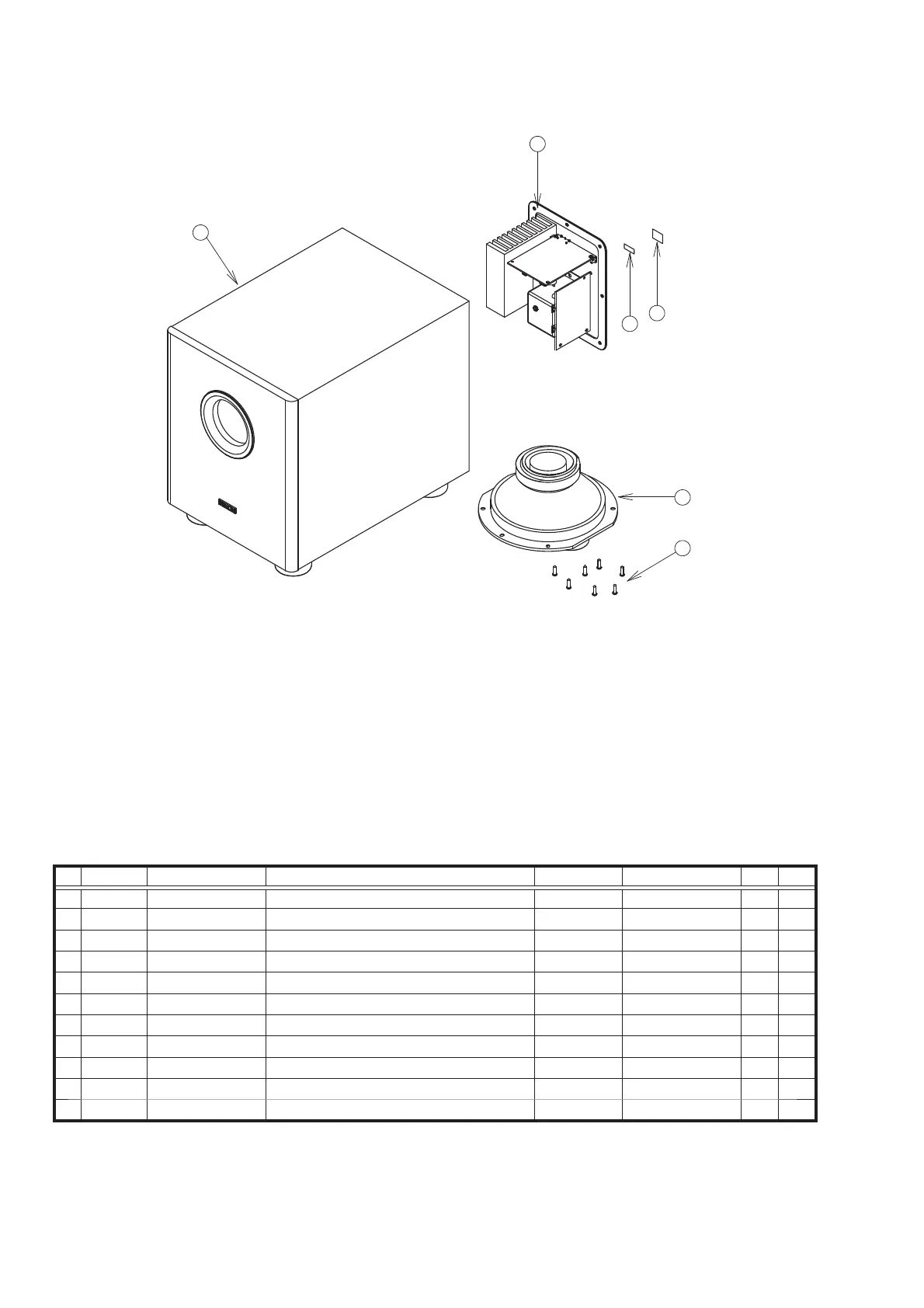

DSW-391 EXPLODED VIEW
DSW-391 PARTS LIST OF EXPLODED VIEW
＊ Parts for which "nsp" is indicated on this table cannot be supplied.
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. and Canada model E3B : Brazil model s
E2 : Europe model EA : Australia model
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp CABINET ASSY
-
1*
2 984323000180D DRIVER 304-00044-00 1 *
3 nsp SCREW S411-A4020E1J 14 *
4 984189000150D AMPLIFIER E2 326-W391CE-K0 1 *
4 984189000160D AMPLIFIER E3 326-W391UL-K0 1 *
4 984189000170D AMPLIFIER EA 326-W391AU-K0 1 *
4 984189000190D AMPLIFIER E3B 326-W391UB-K0 1
*
5 nsp SAFETY LABEL E2,EA 660-00W391-00 1 *
5 nsp SAFETY LABEL E3 660-10W391-00 1 *
6 nsp SPEC LABEL E2 600-00W391-00 1 *
6 nsp SPEC LABEL E3,E3B 600-10W391-00 1
*
1
4
5
6
2
3
s
s

Denon AVR-1311 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Preset Station Qty	56
HDMI Switching	Yes
3D Technology	Yes
HDMI Pass-Through	Yes
Frequency Response	10 Hz - 100 kHz
Power Output	75 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
Dolby Formats	Dolby Digital, Dolby Pro Logic II
DTS Formats	DTS-HD Master Audio
Tuner Type	FM/AM
Speaker Impedance	6 - 16 ohms
Weight	8.3 kg
