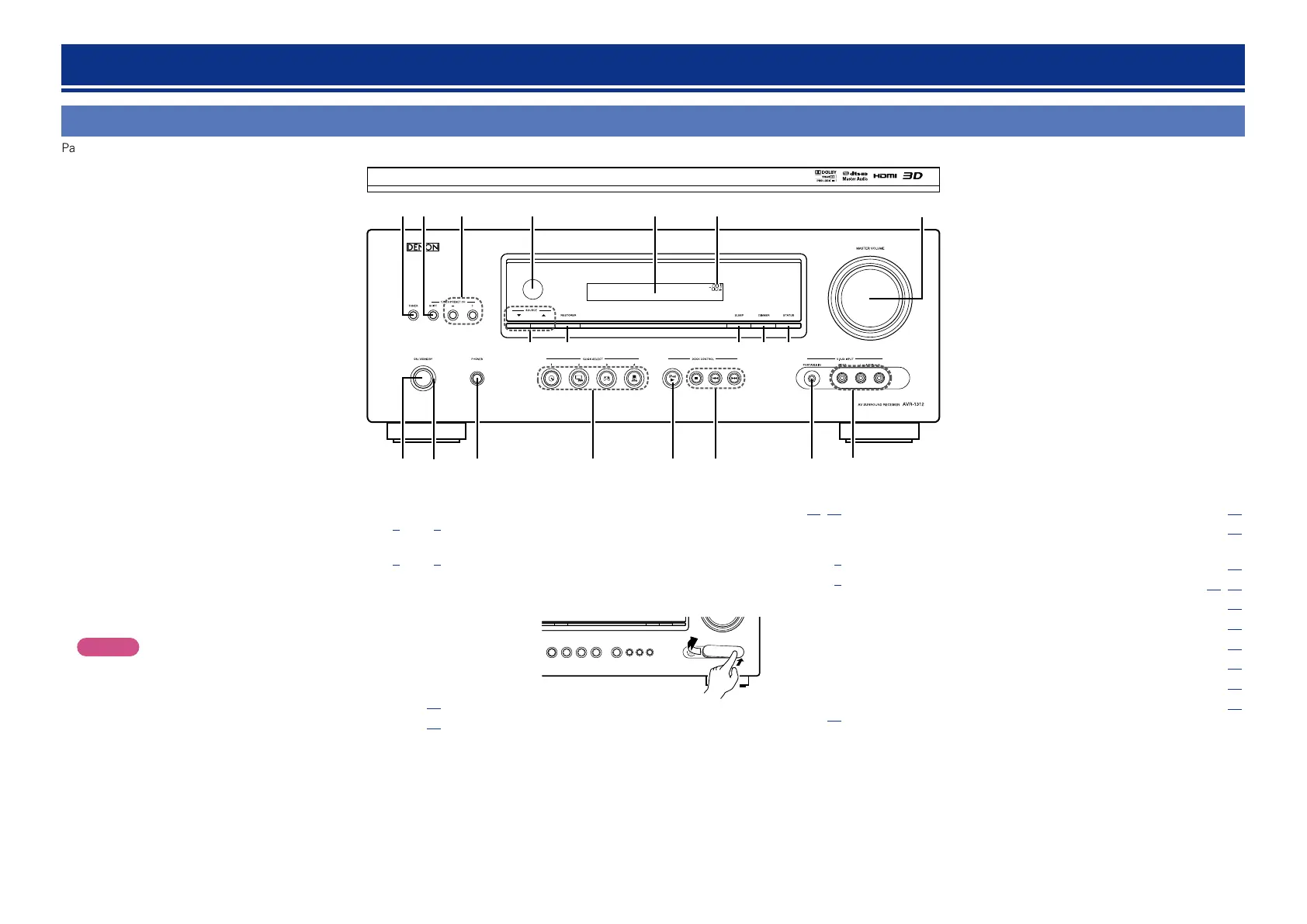

Panel delantero
Para los botones no explicados aquí, vea la página indicada entre paréntesis ( ).
Q2Q3Q5 Q4 Q1
Q0 o
i
Q6 Q7 Q9Q8 W0
utr yewq
q Botón de alimentación
(ON/STANDBY) ······················································(C 4, C 8)
Enciende y apaga la unidad (modo de espera).
w Indicador de alimentación ·····································(C 4, C 8)
e Conector de auriculares (PHONES)
Cuando enchufe unos auriculares a este conector, se dejará de oír
el audio a través de los altavoces conectados o de los conectores
PRE OUT.
NOTA
Para evitar pérdida de audición, no suba el volumen excesivamente
cuando use los auriculares.
r Botones QUICK SELECT ························································· (27)
t Botón de reproducción del iPod (iPod 1) ····························· (16)
Q1 Pantalla ····················································································· (43)
Q2 Sensor de mando a distancia ················································· (46)
Q3 Botones de los canales presintonizados
(TUNER PRESET CH +, –) ························································ (18)
Q4 Botón SHIFT ······································································· (17, 18)
Q5 Botón TUNER ··········································································· (17)
Q6 Botones selectores de fuente de entrada (SOURCE df) ···· (11)
Q7 Botón RESTORER ···································································· (39)
Q8 Botón SLEEP ············································································ (27)
Q9 Botón DIMMER ········································································ (35)
W0 Botón STATUS ········································································ (13)
y Botones del sistema iPod ················································· (16, 57)
•Botón de parada (2)
•Botones de omisión (8, 9)
u Conector PORTABLE IN ···························································· (9)
i Conectores V.AUX INPUT ························································ (8)
Quite la tapa de los conectores cuando quiera utilizarlos.
o Control MASTER VOLUME ····················································· (11)
Q0 Indicador de volumen principal
