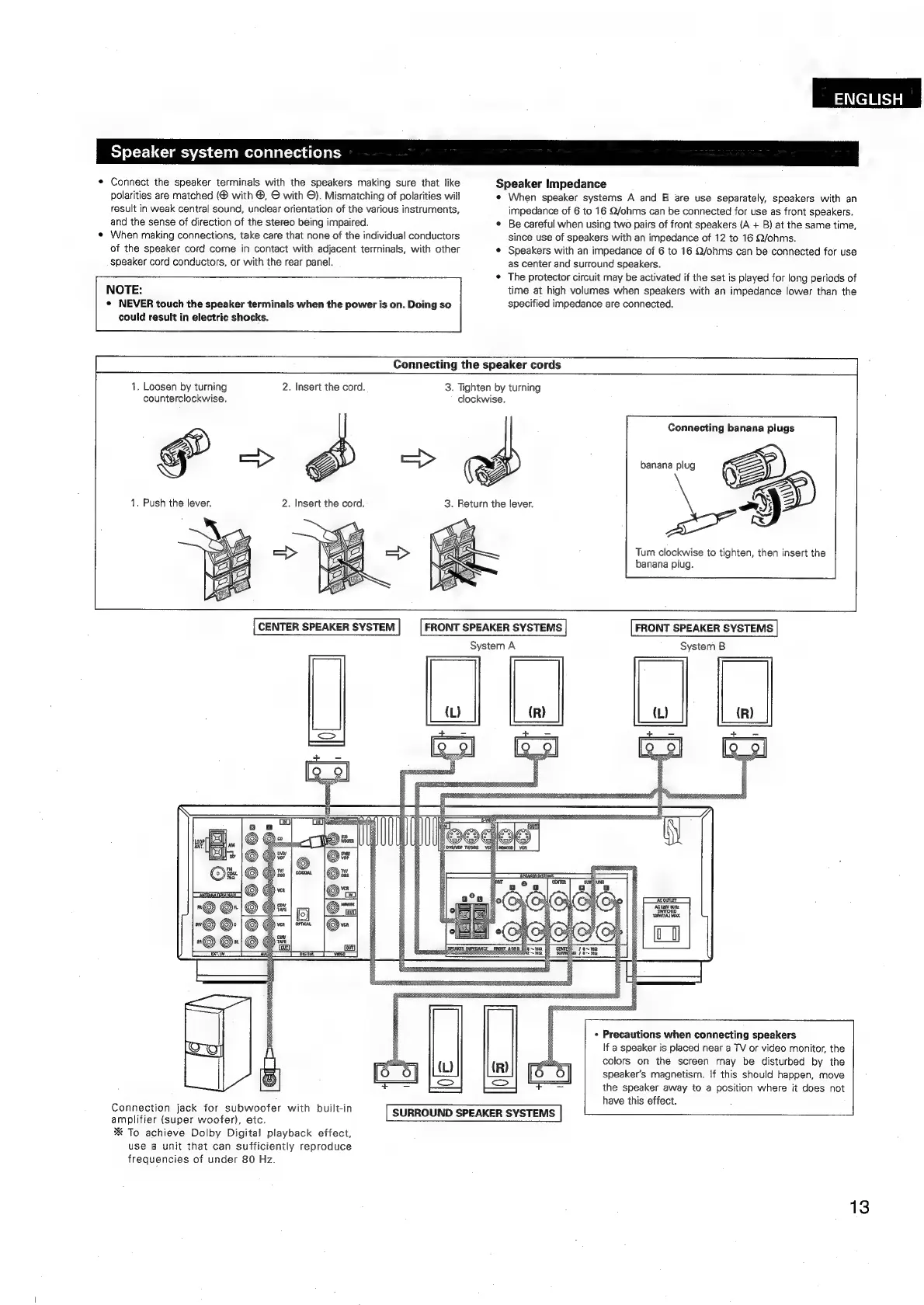

Speaker
system
connections
ENGLISH
¢
Connect
the
speaker
terminals
with
the
speakers
making
sure
that
like
polarities
are
matched
with
©,
©
with
©).
Mismatching
of
polarities
will
result
in
weak
central
sound,
unclear
orientation
of
the
various
instruments,
and
the
sense
of
direction
of
the
stereo
being
impaired.
¢
When
making
connections,
take
care
that
none
of
the
individual
conductors
of
the
speaker
cord
come
in
contact
with
adjacent
terminals,
with
other
speaker
cord
conductors,
or
with
the
rear
panel.
NOTE:
©
NEVER
touch
the
speaker
terminals
when
the
power
is
on.
Doing
so
could
result
in
electric
shocks.
Connecting
the
speaker
cords
1,
Loosen
by
turning
2.
Insert
the
cord.
counterclockwise.
f
=
1.
Push
the
lever.
2.
Insert
the
cord.
CENTER
SPEAKER
SYSTEM
3.
Tighten
by
turning
clockwise.
+f
3.
Return
the
lever.
FRONT
SPEAKER
SYSTEMS
System
A
©w
Speaker
Impedance
¢
When
speaker
systems
A
and
B
are
use
separately,
speakers
with
an
impedance
of
6
to
16
Q/ohms
can
be
connected
for
use
as
front
speakers.
¢
Be
careful
when
using
two
pairs
of
front
speakers
(A
+
B)
at
the
same
time,
since
use
of
speakers
with
an
impedance
of
12
to
16
Q/ohms.
¢
Speakers
with
an
impedance
of
6
to
16
Q/ohms
can
be
connected
for
use
as
center
and
surround
speakers.
¢
The
protector
circuit
may
be
activated
if
the
set
is
played
for
long
periods
of
time
at
high
volumes
when
speakers
with
an
impedance
lower
than
the
specified
impedance
are
connected.
Connecting
banana
plugs
banana
plug
aD
mem.
(eA
<i
Turn
clockwise
to
tighten,
then
insert
the
banana
plug.
FRONT
SPEAKER
SYSTEMS
System
B
©x
Connection
jack
for
subwoofer
with
built-in
amplifier
(super
woofer),
etc.
*%
To
achieve
Dolby
Digital
playback
effect,
use
a
unit
that
can
sufficiently
reproduce
frequencies
of
under
80
Hz.
SURROUND
SPEAKER
SYSTEMS
+
Precautions
when
connecting
speakers
lf
a
speaker
is
placed
near
a
TV
or
video
monitor,
the
colors
on
the
screen
may
be
disturbed
by
the
speaker’s
magnetism.
If
this
should
happen,
move
the
speaker
away
to
a
position
where
it
does
not
have
this
effect.
13
