Panel delantero

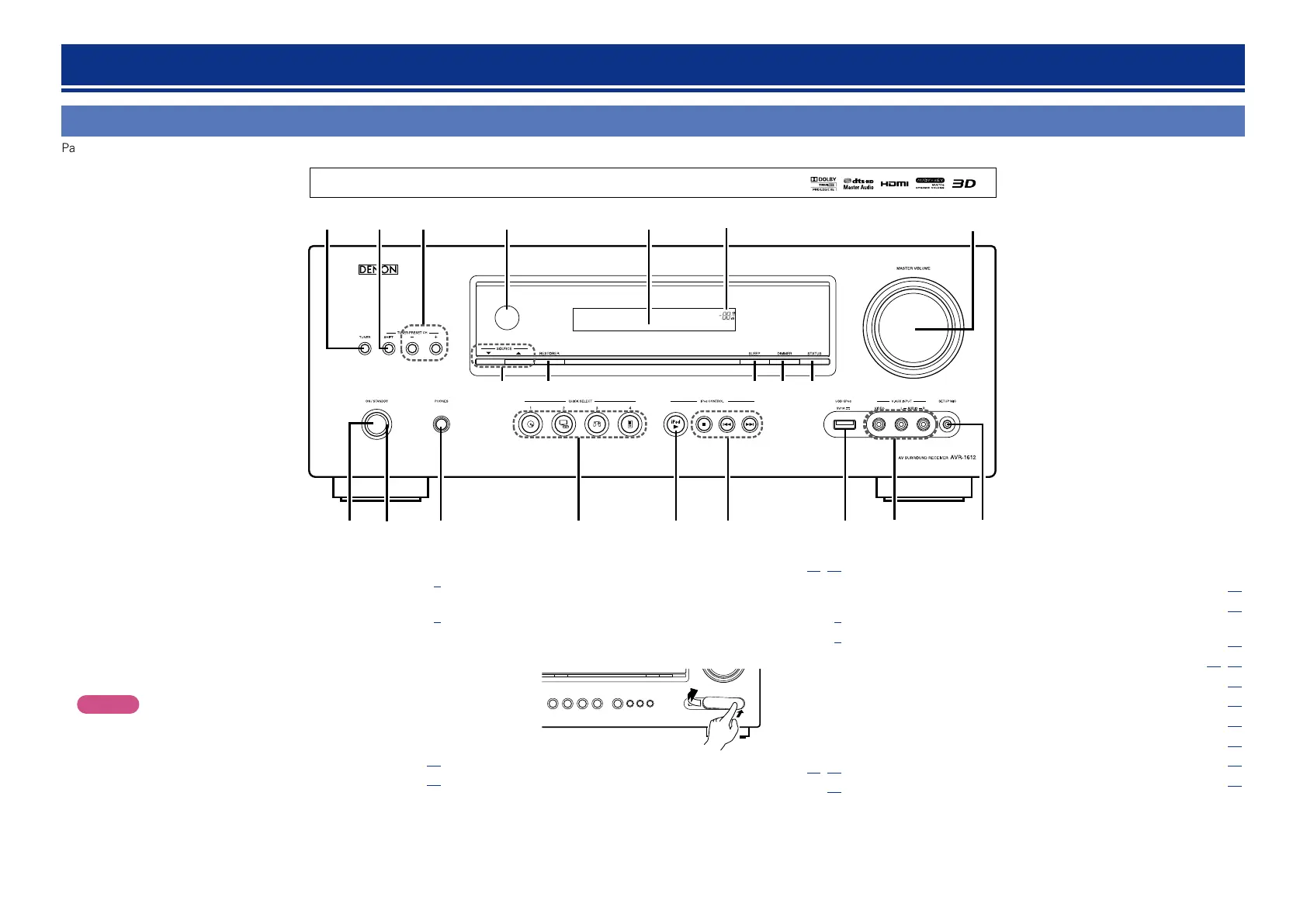

Para los botones no explicados aquí, vea la página indicada entre paréntesis ( ).
Q3Q4Q6
Q5
Q2 Q1
Q0
o
i
Q7 W0Q9Q8 W1
utr yewq
q Botón de alimentación
(ON/STANDBY) ································································· (C 5)
Enciende y apaga la unidad (modo de espera).
w Indicador de alimentación ················································ (C 5)
e Conector de auriculares (PHONES)
Cuando enchufe unos auriculares a este conector, se dejará de oír
el audio a través de los altavoces conectados o de los conectores
PRE OUT.
NOTA
Para evitar pérdida de audición, no suba el volumen
excesivamente cuando use los auriculares.
r Botones QUICK SELECT ························································· (45)
t Botón de reproducción del iPod (iPod 1) ····························· (24)
Q1 Indicador de volumen principal
Q2 Pantalla ····················································································· (79)
Q3 Sensor de mando a distancia ················································· (82)
Q4 Botones de los canales presintonizados
(TUNER PRESET CH +, –) ························································ (26)
Q5 Botón SHIFT ······································································· (25, 50)
Q6 Botón TUNER ··········································································· (25)
Q7 Botones selectores de fuente de entrada (SOURCE df) ···· (18)
Q8 Botón RESTORER ···································································· (56)
Q9 Botón SLEEP ············································································ (43)
W0 Botón DIMMER ········································································ (64)
W1 Botón STATUS ········································································ (57)
y Botones del sistema iPod ················································· (23, 94)
•Botón de parada (2)
•Botones de omisión (8, 9)
u Puerto USB/iPod ······································································· (9)
i Conectores V.AUX INPUT ························································ (8)
Quite la tapa de los conectores cuando quiera utilizarlos.
o Conector SETUP MIC ························································ (13, 40)
Q0 Control MASTER VOLUME ····················································· (19)
