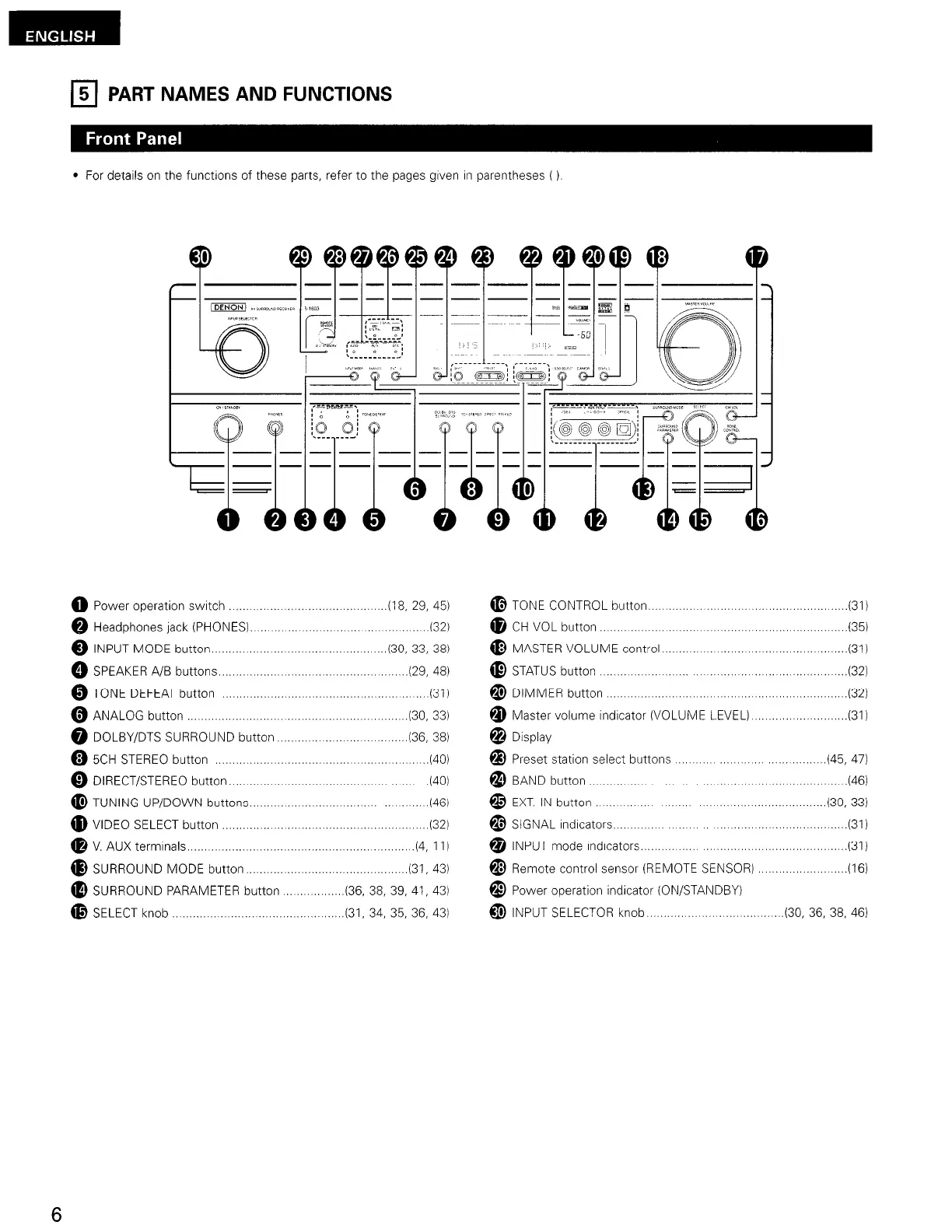

5 PART NAMES AND FUNCTIONS
l For details on the functions of these parts, refer to the pages given in parentheses ( )
0 Power operation switch ........................................ (18, 29, 451
@ Headphones jack (PHONES). ........................................ ..(32 1
@ INPUT MODE button.. ............... ................................ (30, 33, 381
0 SPEAKER A/B buttons.. ......................... .......................... (‘29, 48)
@ TONE DEFEAT button .................................................... (31 1
@ ANALOG button
................................................................
(30, 331
@ DOLBY/DTS SURROUND button ................................ (36, 381
@ 5CH STEREO button ........................................................ ..(40)
@ DIRECT/STEREO button
..................................................
.(40)
@) TUNING UP/DOWN buttons.. .......................................... .f46)
@ VIDEO SELECT button
...........................................................
(32)
@ V, AUX terminals..
................................................................
(4, 1 II
@ SURROUND MODE button..
.............................................
i31, 43)
@ SURROUND PARAMETER button ................. (36, 38, 39, 41, 43)
@ SELECT knob ................................................. (31, 34, 35, 36, 43)
@ TONE CONTROL button.. .......... ..................................... (31)
@ CH VOL button ............................ ........................................ (35)
@ MASTER VOLUME control.. ................................ ... ...... ... (31)
@ STATUS button ....................... ..................... ........ (321
@ DIMMER button ..................................................................... (32)
@ Master volume indrcator (VOLUME LEVEL). ........ ... .......... .. (311
@ Display
@ Preset station select buttons (45, 47)
@
BAND button
@ EXT. IN button 11. (30,‘::;
@
SIGNAL rndrcators
,., (31)
@ INPUT mode indrcators (31)
@ Remote control sensor (REMOTE SENSOR) (16)
@ Power operation indicator (ON/STANDBY)
@ INPUT SELECTOR knob (30, 36, 38, 46)
