Denon AVR-1705 Operating Instructions

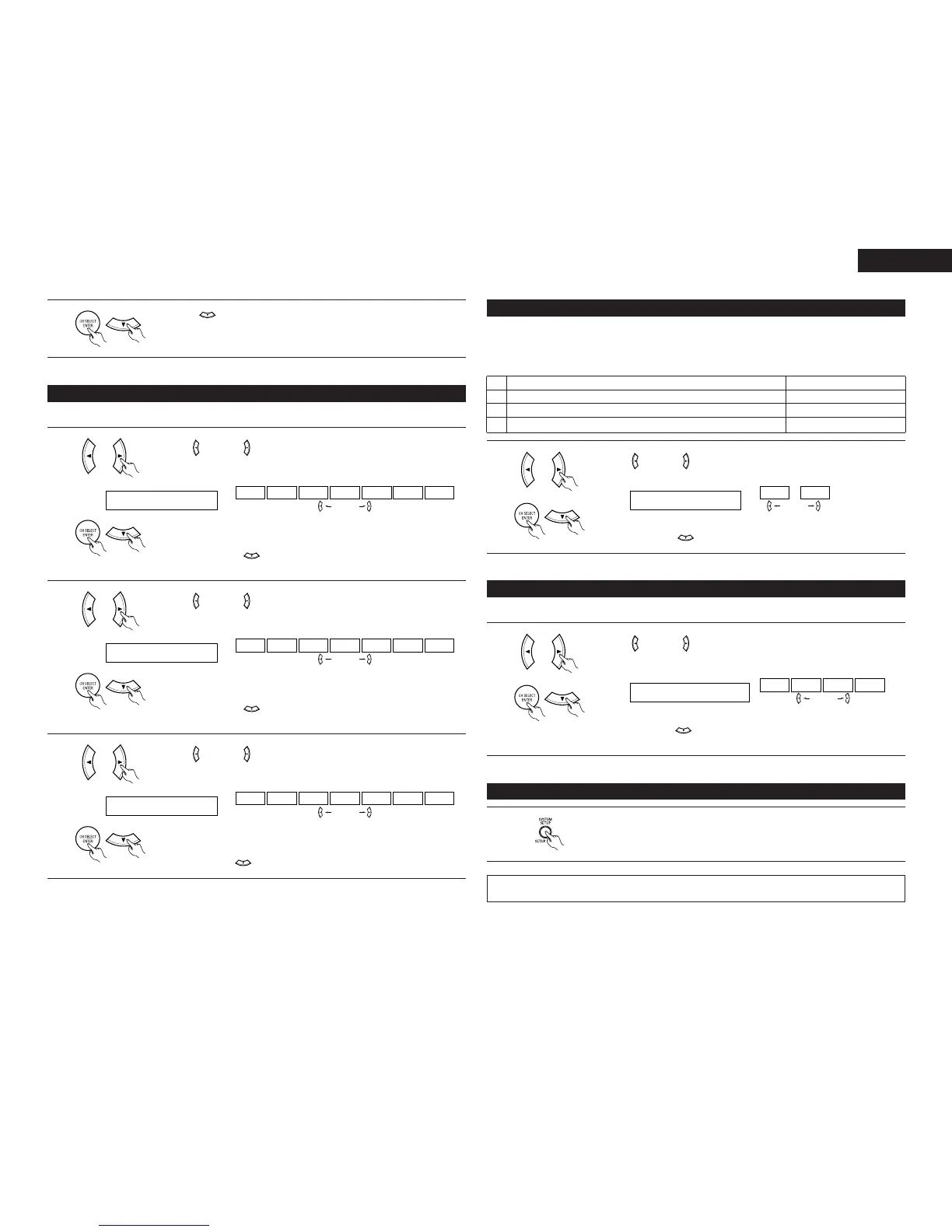

15
ENGLISH
Press the (down) button to switch the DIGITAL input (COAX) setting.
10
Setting the Digital In assignment
Input the type of components connected to the digital input terminals.
1
Use the (left) and (right) buttons to assign the input function connected to
the COAXIAL input (COAXIAL) terminal.
NOTE:
• TUNER, V. AUX cannot be selected.
16 COAX CD
CD AUX DVD TV VCR CDR OFF
(Initial)
(left) button (right) button
• Select “OFF” if nothing is connected.
Press the ENTER or (down) button to switch the optical input 1 (OPT1)
setting.
2
Use the (left) and (right) buttons to assign the input function connected to
the OPTICAL input 1 (OPTICAL 1) terminal.
17 OPT1 DVD
CD AUX DVD TV VCR CDR OFF
(Initial)
(left) button (right) button
• Select “OFF” if nothing is connected.
Press the ENTER or (down) button to switch the optical input 2 (OPT2)
setting.
3
Use the (left) and (right) buttons to assign the input function connected to
the OPTICAL input 2 (OPTICAL 2) terminal.
18 OPT2 TV
CD AUX DVD TV VCR CDR OFF
(Initial)
(left) button (right) button
• Select “OFF” if nothing is connected.
Press the ENTER or (down) button to switch the Auto Surround Mode setting.
Setting the Auto Surround Mode
For the three kinds of input signals as shown below, the surround mode played the last is stored in the memory.
At next time it the same signal inputs, the memorized surround mode is automatically selected and the signal
is played.
Note that the surround mode setting is also stored separately for the different input function.
SIGNAL Default Auto Surround Mode
q Analog and PCM 2-channel signals STEREO
w 2-channel signals of Dolby Digital, DTS or other multichannel format Dolby PL
IIx Cinema
e Multichannel signals of Dolby Digital, DTS or other multichannel format Dolby or DTS Surround
1
Use the (left) and (right) buttons to select the Auto Surround mode.
19 AUTOSURR. ON
ON OFF
(Initial)
(left) button (right) button
Press the ENTER or (down) button to switch the Ext. In SW Level setting.
Setting the Ext. In SW Level
Set the method of playback of the analog input signal connected to the Ext. In terminal.
1
Use the (left) and (right) buttons to select the Ext. In Subwoofer channel
Level playback.
20 EXT.IN SW +15
+00
+05
+10 +15
(Initial)
(left) button (right) button
Press the ENTER or (down) button if you want to start the settings over from
the beginning.
After setting up the system
Press the SYSTEM SETUP button to finish system set up.
1
This completes the system setup operations. Once the system is set up, there is no need to make the
settings again unless other components or speakers are connected to or the speaker layout is changed.

Denon AVR-1705 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	6.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Product color	Black
Audio decoders	DTS, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX
Digital Signal Processing (DSP)	Yes
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	230 W
Optical drive included	No
HDMI in	0
Composite video in	4
S-Video inputs quantity	3
Digital audio optical in	1
S-Video outputs quantity	2

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	10900 g
