21
ENGLISH
13

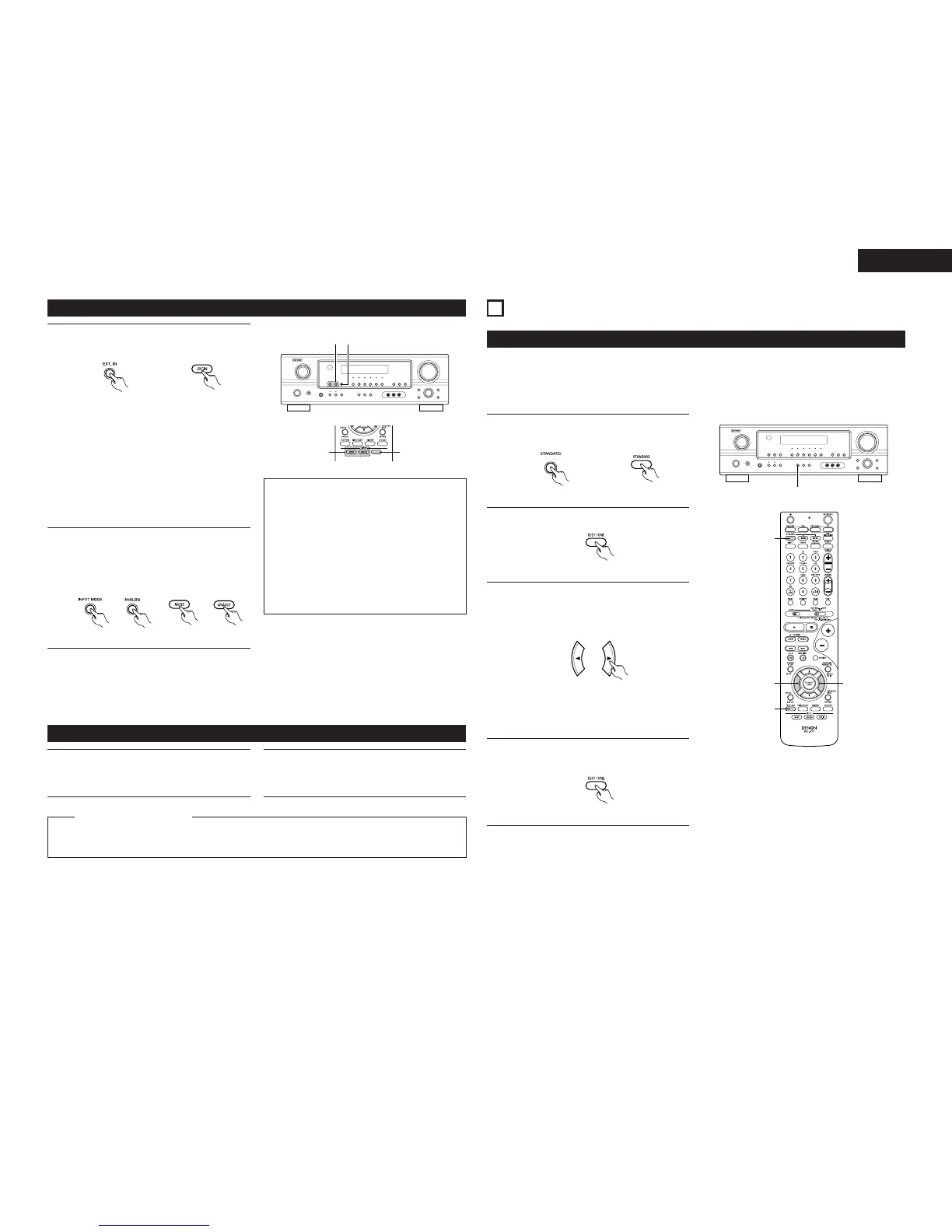

SURROUND
Before playing with the surround function
• Before playing with the surround function, be sure to use the test tones to adjust the playback level from each
speakers. This adjustment can be performed from the remote control unit, as (described) below.
• The adjustment with the test tones is only effective in the STANDARD (DOLBY/DTS SURROUND) modes.
The adjusted playback levels for the different surround modes are automatically stored in the memory of each
surround modes.
2
Press the TEST TONE button.
Test tones are output from the different
speakers. Use the channel volume adjust
buttons to adjust so that the volume of the test
tones is the same for all the speakers.
4
After completing the adjustment, press the
TEST TONE button again.
1
Set the STANDARD (DOLBY/DTS SURROUND)
modes.
(Main unit) (Remote control unit)
(Remote control unit)
(Remote control unit)
3
(Remote control unit)
NOTE:
•Please make sure the “AUDIO” position of
the slide switch on the remote control unit.
Playback using the external input (EXT. IN) jacks
(Main unit) (Remote control unit)
1
Set the external input (EXT. IN) mode.
Press the EXT. IN to switch the external input.
2
Cancelling the external input mode
To cancel the external input (EXT. IN) setting,
press the INPUT MODE (AUTO, PCM, DTS) or
ANALOG button to switch to the desired input
mode. (See page 19.)
(Main unit) (Remote control unit)
Once this is selected, the input signals
connected to the FL (front left), FR (front right),
C (center), SL (surround left), and SR (surround
right) channels of the EXT. IN jacks are output
directly to the front (left and right), center,
surround (left and right) speaker systems
without passing through the surround circuitry.
In addition, the signal input to the SW
(subwoofer) jack is output to the PRE OUT
SUBWOOFER jack.
• When the input mode is set to the external input
(EXT. IN), the play mode (DIRECT, STEREO,
STANDARD, 5/6CH STEREO or DSP SIMULATION)
cannot be selected.
NOTES:
• In play modes other than the external input
mode, the signals connected to EXT. IN jacks
cannot be played. In addition, signals cannot be
output from channels not connected to the input
jacks.
• The external input mode can be set for any input
source. To watch video while listening to sound,
select the input source to which the video signal
is connected, then set this mode.
• If the subwoofer output level seems to high, set
the “SW ATT.” surround parameter to “ON”.
Recording the program source (recording the source currently being monitored)
1
Follow step 1 to 3 under “Playing the input
source”.
2
Start recording on the tape or video deck.
For instructions, refer to the component’s
operating instructions.
The signals of the source selected with the function selector button are output simultaneously to the
CDR/TAPE and VCR REC OUT jacks. If a total of two tape and/or video decks are connected and set to the
recording mode, the same source can be recorded simultaneously on every decks.
Simultaneous recording
NOTE:
• The AUDIO IN’s signal selected with the input selector knob are output to the CDR/TAPE and VCR AUDIO OUT
jacks.
To Next Page
