10
ENGLISH

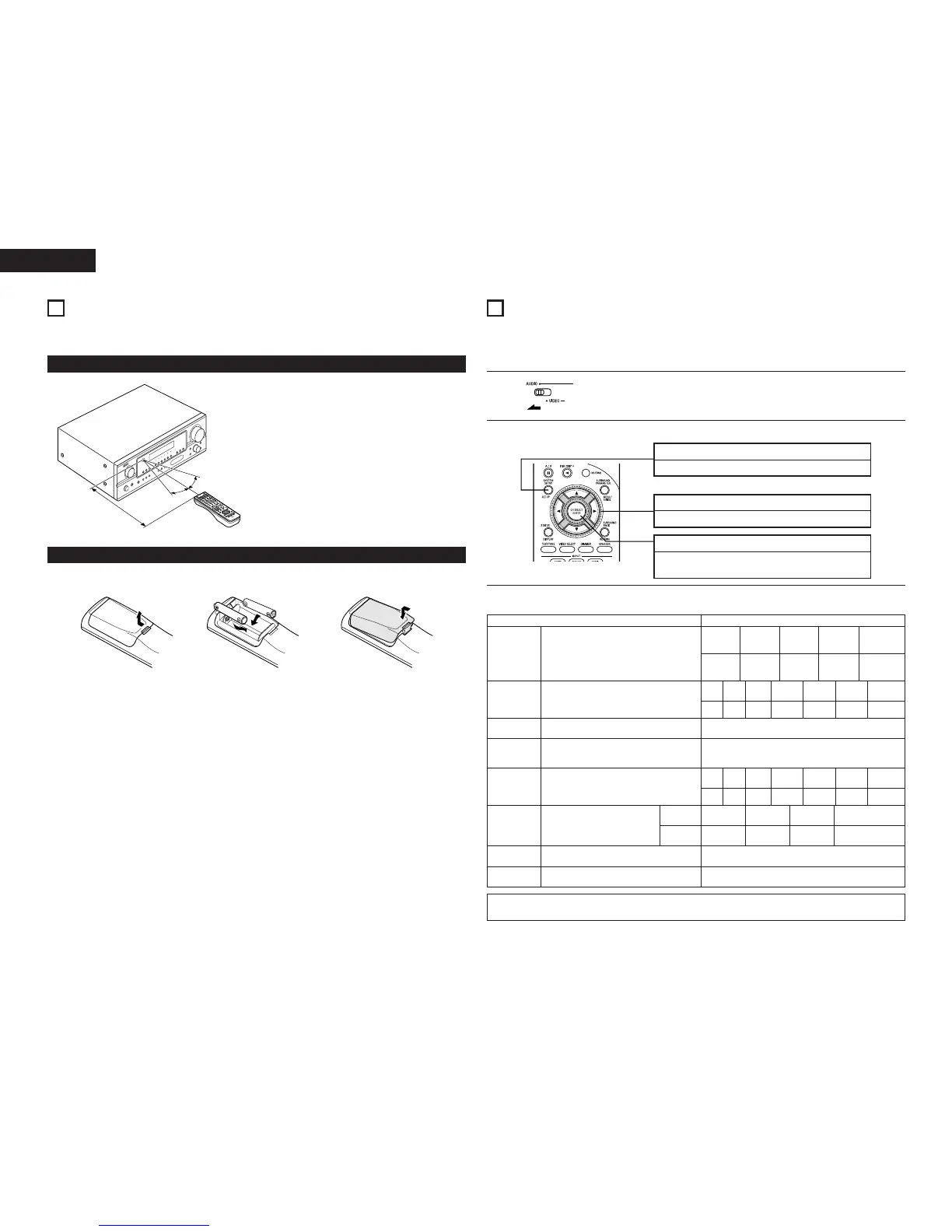

SETTING UP THE SYSTEM
• Once all connections with other AV components have been completed as described in “CONNECTIONS” (see
pages 6 to 9), make the various settings described below on the display.
These settings are required to set up the listening room’s AV system centered around the this unit.
SYSTEM SETUP button
Press this to display the system setup on the display.
ENTER button
Press this to switch the display.
Also use this button to complete the setting.
CURSOR buttons (•, ª,
0
,
1
)
Press this change what appears on the display.
10
2
Use the following buttons to set up the system:
1
Set the slide switch to “AUDIO”.
• System setup items and default values (set upon shipment from the factory)
System setup Default settings
Speaker
Configuration
Subwoofer
Mode
Digital In
Assignment
Input the combination of speakers in your
system and their corresponding sizes (SMALL
for regular speakers, LARGE for full-size, full-
range) to automatically set the composition of
the signals output from the speakers and the
frequency response.
This selects the subwoofer speaker for playing
deep bass signals.
This assigns the digital input jacks
for the different input sources.
Digital
Inputs
Input
source
Front Sp.
Large
Center
Sp.
Surround
Sp.
Surround
Back Sp.
Small Small Small
Subwoofer mode = Normal
Front
L
Center
3.6 m
3.6 m
CD DVD/VDP
COAXIAL OPTICAL 1
Delay Time
This parameter is for optimizing the timing with
which the audio signals are produced from the
speakers and subwoofer according to the
listening position.
Subwoofer
Yes
Crossover
Frequency
Set the frequency (Hz) below which the bass
sound of the various speakers is to be output
from the subwoofer.
80 Hz
Front
R
3.6 m
Surround
L
3.0 m
Surround
R
3.0 m
Surround
Back
3.0 m
Subwoofer
3.6 m
Front
L
Center
0 dB 0 dB
Test Tone
This adjusts the volume of the signals output
from the speakers and subwoofer for the
different channels in order to obtain optimum
effects.
Front
R
0 dB
Surround
L
0 dB
Surround
R
0 dB
Surround
Back
0 dB
Subwoofer
0 dB
TV/DBS
OPTICAL 2
Ext. In SW
Level
Set the Ext. In Subwoofer channel playback level. Ext. In SW Level = +15 dB
Auto Surround
Mode
Auto surround mode function setting. Auto Surround Mode = ON
Point the remote control unit at the remote control
sensor as shown on the diagram at the left.
NOTES:
• The remote control unit can be used from a straight
distance of approximately 7 meters, but this distance
will shorten or operation will become difficult if
there are obstacles between the remote control unit
and the remote control sensor, if the remote control
sensor is exposed to direct sunlight or other strong
light, or if operated from an angle.
• Neon signs or other devices emitting pulse-type
noise nearby may result in malfunction, so keep the
set as far away from such devices as possible.
Approx. 7 m
30°
30°
Range of operation of the remote control unit
USING THE REMOTE CONTROL UNIT
Following the procedure outlined below, insert the batteries before using the remote control unit.
Inserting the batteries
q Press as shown by the arrow
and slide off.
w Insert the R6P/AA batteries properly,
as shown on the diagram.
e Close the lid.
NOTES:
• Use only R6P/AA batteries for replacement.
• Be sure the polarities are correct. (See the illustration inside the battery compartment.)
• Remove the batteries if the remote control transmitter will not be used for an extended period of time.
• If batteries leak, dispose of them immediately. Avoid touching the leaked material or letting it come in contact
with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.
• Have replacement batteries on hand so that the old batteries can be replaced as quickly as possible when the
time comes.
• Even if less than a year has passed, replace the batteries with new ones if the set does not operate even when
the remote control unit is operated nearby the set. (The included battery is only for verifying operation. Replace
it with a new battery as soon as possible.)
9
NOTE:
• The system setup is not displayed when “HEADPHONE ONLY” is selected.
To Next Page
