AVR-1803/883

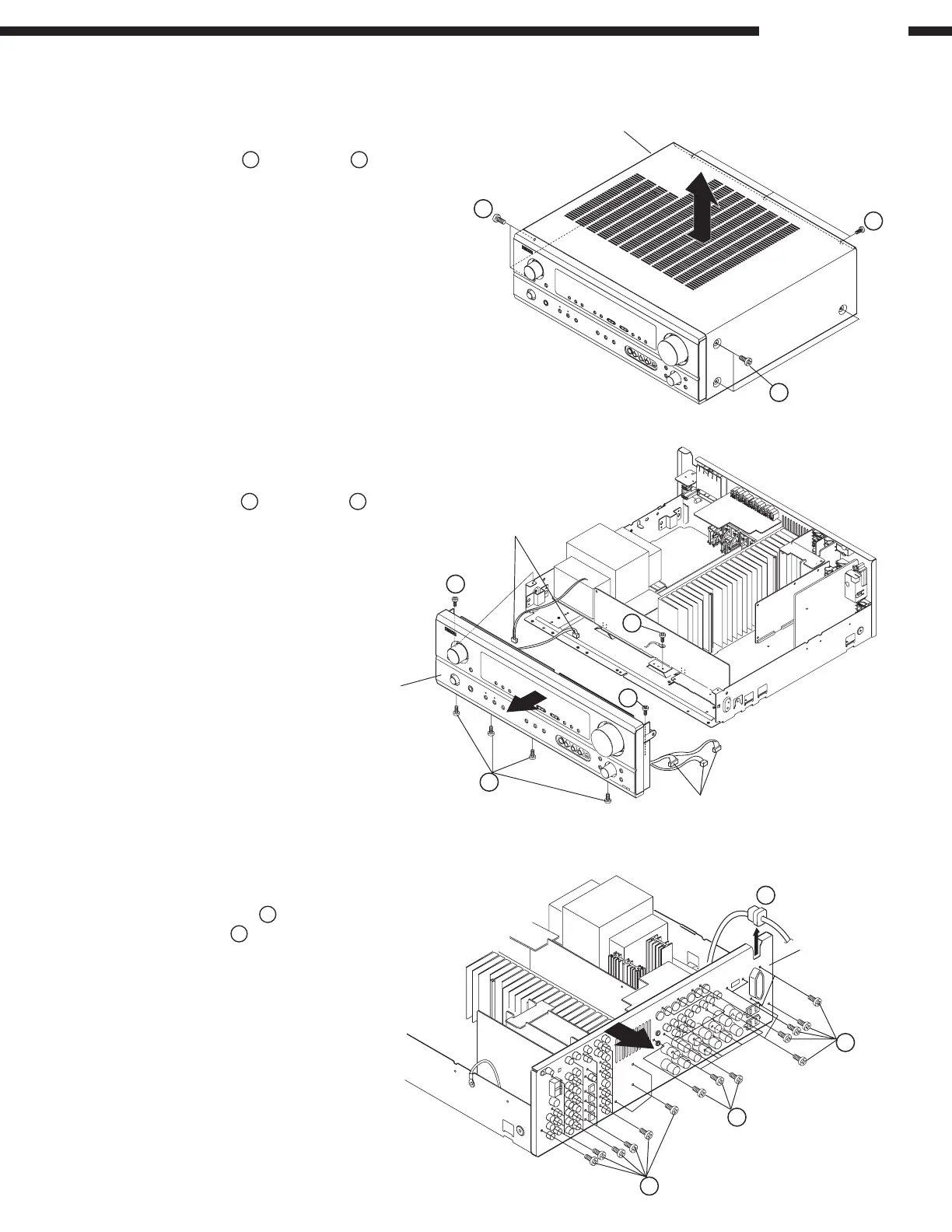

DISASSEMBLY
(Follow the procedure below in the reverse order when reassembling)
1. Top Cover
Remove 6 screws
1
and 3 screws
2
, then detach the
Top Cover to the arrow direction.
1
2. Front Panel
(1) Remove 4 screws
3
and 3 screws
4
.
(2) Disconnect 4 connectors coming from the Front
Panel side.
(3) Disconnect the connector coming from the Trans.,
and detach the Front Panel to the arrow direction.
1
2
Top Cover
3
4
Connector
Connector
Front Panel
Rear Panel
6
6
5
3. Rear Panel
(1) Take off the AC cord
5
.
(2) Remove screws
6
.
(44 pieces for U.S.A & Canada models)
(41 pieces for Europe model)
(43 pieces for Asia model)
(3) Detach the Rear Panel to the arrow direction.
4
4
6
