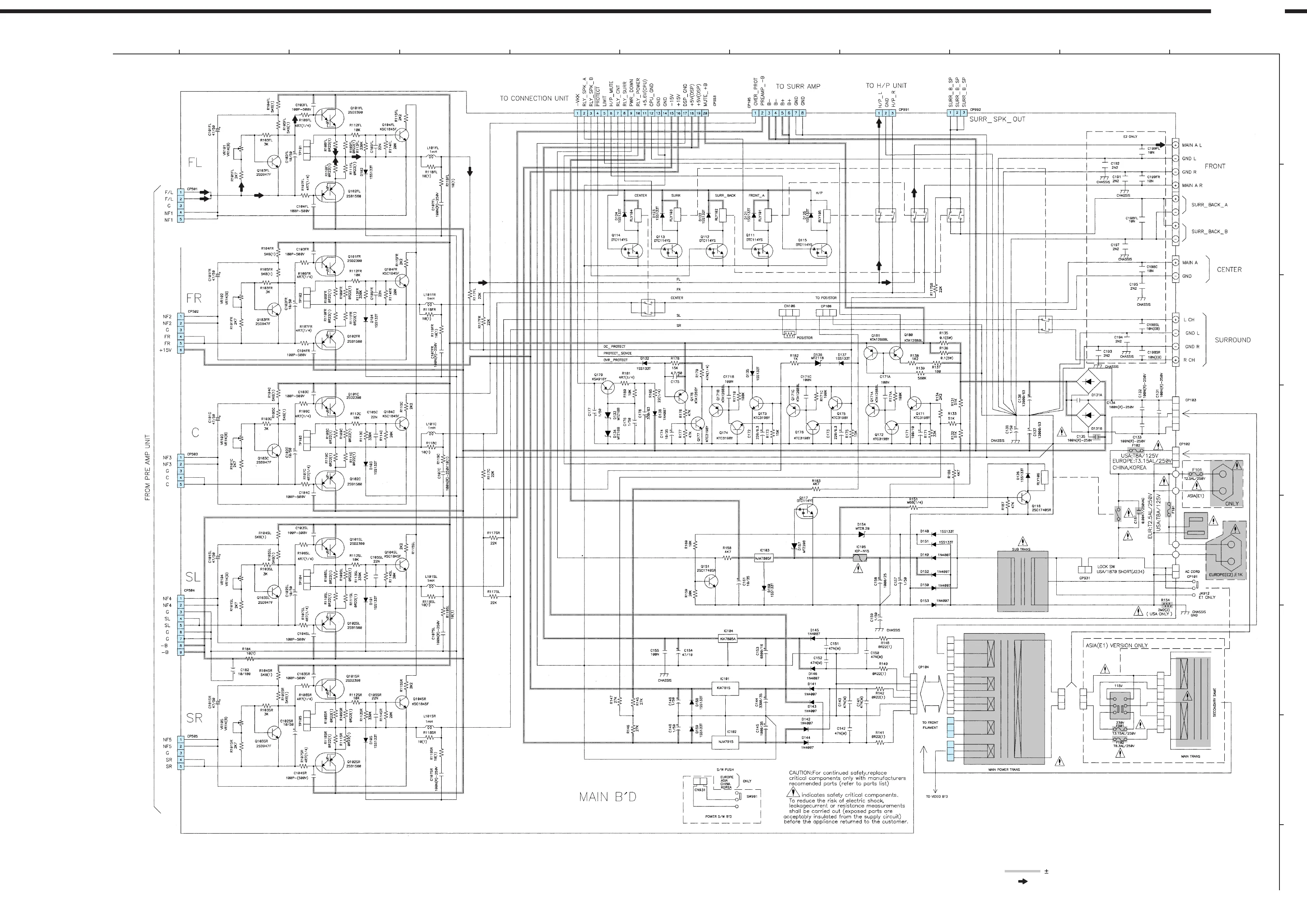

SCHEMATIC DIAGRAMS (4/10)
MAIN UNIT
POWER SWITCH UNIT
OUTLET UNIT
VOLTAGE SEL UNIT
SCHEMATIC DIAGRAMS (4/10)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
SIGNAL LINE
AVR-1803/883
B LINE
