11
ENGLISH

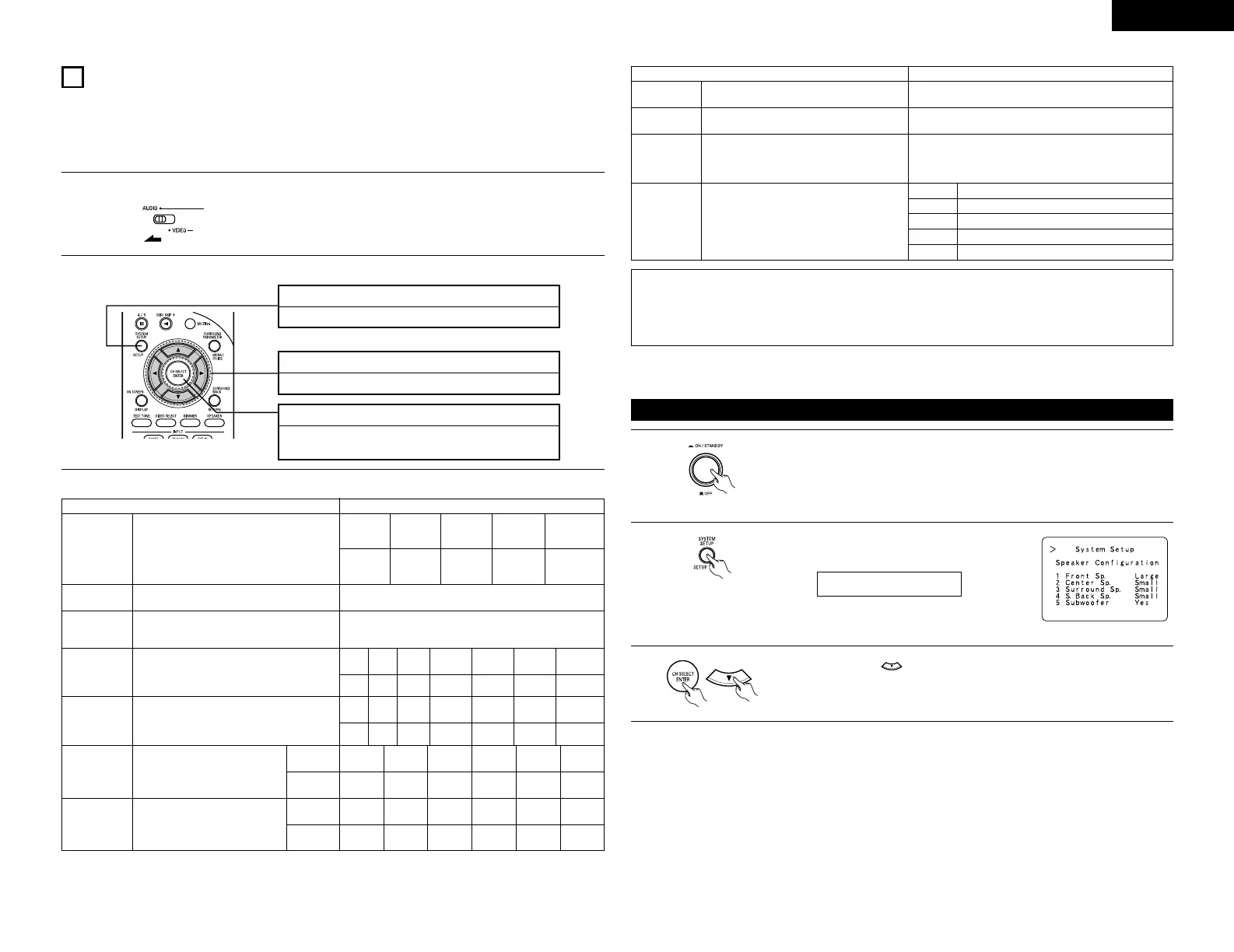

SETTING UP THE SYSTEM
• Once all connections with other AV components have been completed as described in “CONNECTIONS” (see
pages 6 to 10), make the various settings described below on the display.
These settings are required to set up the listening room’s AV system centered around the this unit.
• Use the following buttons to set up the system:
SYSTEM SETUP button
Press this to display the system setup on the display.
ENTER button
Press this to switch the display.
Also use this button to complete the setting.
CURSOR buttons (•, ª,
0
,
1
)
Press this change what appears on the display.
10
2
Use the following buttons to set up the system:
1
Set the slide switch to “AUDIO”.
• System setup items and default values (set upon shipment from the factory)
System setup Default settings
Speaker
Configuration
Subwoofer
mode
Digital In
Assignment
Input the combination of speakers in your
system and their corresponding sizes (SMALL
for regular speakers, LARGE for full-size, full-
range) to automatically set the composition of
the signals output from the speakers and the
frequency response.
This selects the subwoofer speaker for playing
deep bass signals.
This assigns the digital input jacks
for the different input sources.
Digital
Inputs
Input
source
Front Sp.
Large
Center
Sp.
Surround
Sp.
Surround
Back Sp.
Small Small Small
LFE (Normal)
Front
L
Center
3.6 m
3.6 m
COAXIAL
OPTICAL
1
CD
DVD/VDP
Delay Time
This parameter is for optimizing the timing with
which the audio signals are produced from the
speakers and subwoofer according to the
listening position.
NOTES:
• The AVR-1804’s on-screen display function is designed for use with high resolution monitor TVs, so it may
be difficult to read small characters on TVs with small screens or low resolutions.
• The setup menu is not displayed when headphones are being used.
• The system setup is not displayed when “HEADPHONE ONLY” is selected.
Subwoofer
Yes
Crossover
Frequency
Set the frequency (Hz) below which the bass
sound of the various speakers is to be output
from the subwoofer.
80 Hz
Front
R
3.6 m
Surround
L
3.0 m
Surround
R
3.0 m
Surround
Back
3.0 m
Subwoofer
3.6 m
Front
L
Center
0 dB 0 dB
Test Tone
This adjusts the volume of the signals output
from the speakers and subwoofer for the
different channels in order to obtain optimum
effects.
Front
R
0 dB
Surround
L
0 dB
Surround
R
0 dB
Surround
Back
0 dB
Subwoofer
0 dB
OPTICAL
2
TV/DBS
OFF
VCR-1
OFF
VCR-2
OPTICAL
3
CDR/TAPE
Video In
Assignment
This assigns the component video
input jacks for the different video
input sources.
Compone
nt Inputs
Input
source
VIDEO 1 VIDEO 2
DVD/VDP
TV/DBS
OFF
VCR-1
OFF
VCR-2
OFF
V. AUX
—
—
System setup Default settings
Ext. In SW
Level
Set the Ext. In Subwoofer channel playback level. Ext. In SW Level = +15 dB
On Screen
Display
This sets whether or not to display the on-
screen display that appears on the monitor
screen when the controls on the remote control
unit or main unit are operated.
ON
Auto Tuner
Presets
FM stations are received automatically and stored
in the memory.
A1 ~ A8
B1 ~ B8
C1 ~ C8
D1 ~ D8
E1 ~ E8
87.5/89.1/98.1/108.0/90.1/90.1/90.1/90.1 MHz
522/603/999/1404/1611 kHz, 90.1/90.1 MHz
90.1 MHz
90.1 MHz
90.1 MHz
Before setting up the system
2
Press the SYSTEM SETUP button to enter the
setting.
1
Check that all the components are correct, then press the POWER operation
switch on the main unit to turn on the power.
(Main unit)
NOTE: Please make sure the “AUDIO” position of
the slide switch on the remote control unit.
3
Press the ENTER or (down) button to switch to the speaker configuration
set up.
NOTE:
• Press the SYSTEM SETUP button again to finish system set up. System set up can be finished at any time.
The changes to the settings made up to that point are entered.
Auto Surround
Mode
Auto surround mode function setting. Auto Surround Mode = ON
To Next Page
