Denon AVR-1804 Operating Instructions

7
ENGLISH
IN
S-VIDEO
OUT
S-VIDEO
OUT
S-VIDEO
IN OUT
S-VIDEO
IN OUT
S-VIDEO
B
B
DVD player or video disc player (VDP)
Monitor TV
Video deck 2
TV or satellite broadcast tuner
Connecting a DVD player or a video disc player (VDP)
Connecting a monitor TV
Connecting the video decks
Connecting a TV/DBS tuner
DVD
• Connect the DVD/VDP player’s S-Video output jack
to the S-VIDEO DVD/VDP IN jack using an S-Video
connection cord.
• It is also possible to connect a video disc player,
DVD/VDP player, video camcorder, game machine,
etc., to the VCR-2 jacks.
MONITOR OUT
• Connect the TV’s S video input (S-VIDEO INPUT) to the
MONITOR OUT jack using a S jack connection
cord.
S-VIDEO
• Connect the TV’s or DBS tuner’s S video output jack (S-
VIDEO OUTPUT) to the TV/DBS IN jack using an
S jack connection cord.
S-VIDEO
• Connect the video deck’s S output jack (S-OUT) to the
VCR-1 IN jack and the video deck’s S input jack (S-
IN) to the VCR-1 OUT jack using S jack connection
cords.
• Connect the video deck’s S output jack (S-OUT) to the
VCR-2 IN jack and the video deck’s S input jack (S-
IN) to the VCR-2 OUT jack using S jack connection
cords.
S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO

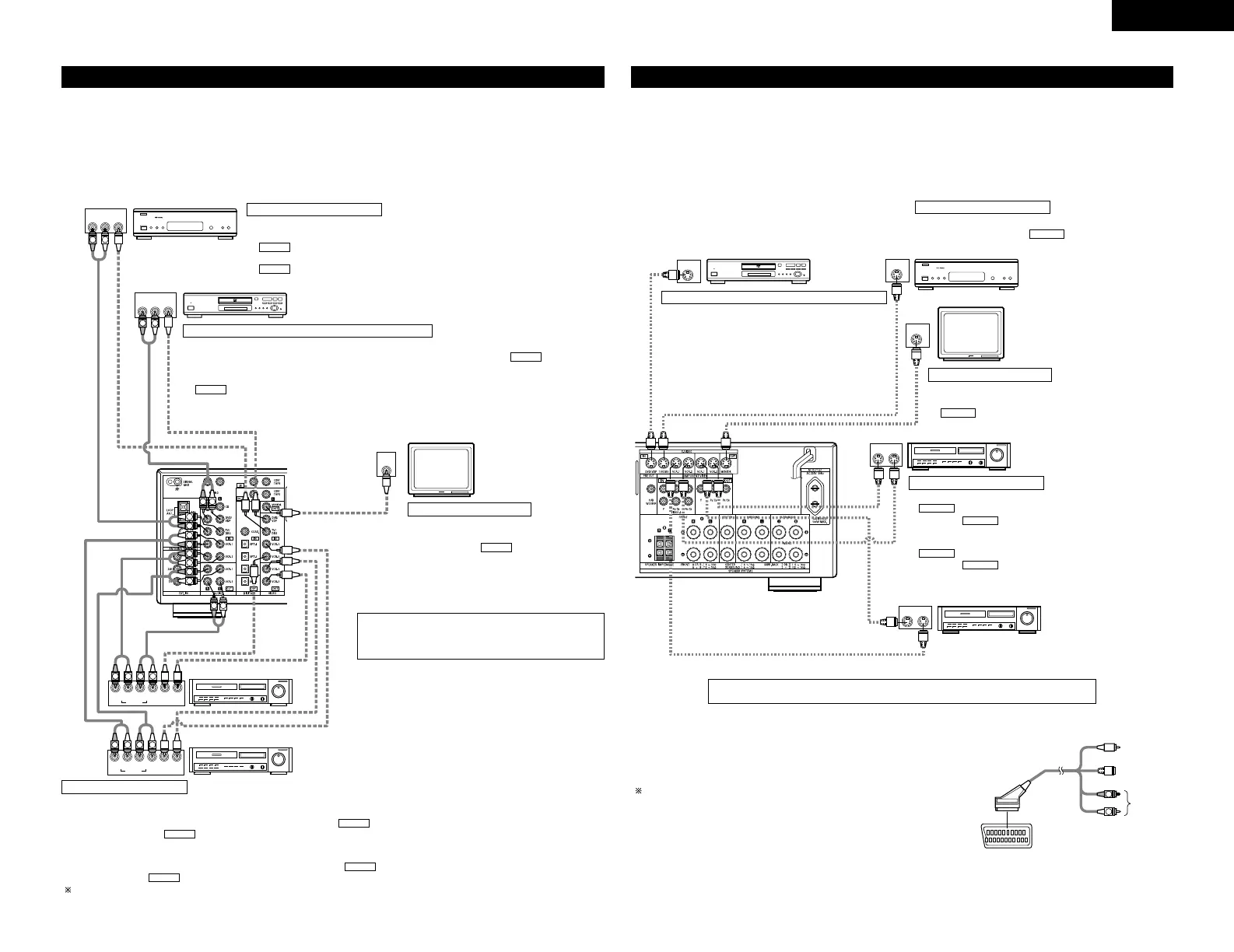

Connecting a video component equipped with S-Video jacks
• When making connections, also refer to the operating instructions of the other components.
• A note on the S input jacks
The input selectors for the S inputs and pin jack inputs work in conjunction with each other.
• The AVR-1804 is equipped with a function for converting video signals.
• The signal connected to the S-Video signal terminal is output to the composite video monitor out terminals.
• The REC OUT terminals have no conversion function, so when recording only connect the S-Video terminals.
Connecting video components
• To connect the video signal, connect using a 75 Ω/ohms video signal cable cord. Using an improper cable can
result in a drop in video quality.
• When making connections, also refer to the operating instructions of the other components.
• The AVR-1804 is equipped with a function for up-converting video signals.
• The signal connected to the video signal terminal is output to the S-Video monitor out terminals.
• The REC OUT terminals have no conversion function, so when recording only connect the video terminals.
IN
VIDEO
ROUTIN
AUDIO
VIDEO
OUT IN
LRL
R
L
R
L
ROUTIN
AUDIO
VIDEO
OUT IN
LRL
R
L
R
L
R OUT
VIDEO
OUT
L
AUDIO
L
R
ROUT
VIDEO
OUT
L
AUDIO
L
R
R
L
R
L
R
L
R
L
R
L
RL
B
B
TV or DBS tuner
DVD player or video disc player (VDP), etc.
Monitor TV
Connecting a TV/DBS tuner
TV/DBS
• Connect the TV’s or DBS tuner’s video output jack (VIDEO OUTPUT) to the
(yellow) TV/DBS IN jack using a 75 Ω/ohms video coaxial pin plug cord.
• Connect the TV’s or DBS tuner’s audio output jacks (AUDIO OUTPUT) to the
TV/DBS IN jacks using pin plug cords
.
AUDIO
VIDEO
Connecting a DVD player or a video disc player (VDP)
MONITOR OUT
• Connect the TV’s video input jack (VIDEO
INPUT) to the MONITOR OUT jack
using a 75 Ω/ohms video coaxial pin plug
cord.
VIDEO
Note on connecting the digital input jacks
• Only audio signals are input to the digital input jacks.
For details, see pages 6, 14.
Video deck 2
• There are two sets of video deck (VCR) jacks, so two video decks can be connected for simultaneous recording or video copying.
Video input/output connections:
• Connect the video deck’s video output jack (VIDEO OUT) to the (yellow) VCR-1 IN jack, and the video deck’s video input
jack (VIDEO IN) to the (yellow) VCR-1 OUT jack using 75
Ω/ohms video coaxial pin plug cords.
Connecting the audio output jacks
• Connect the video deck’s audio output jacks (AUDIO OUT) to the VCR-1 IN jacks, and the video deck’s audio input jacks
(AUDIO IN) to the VCR-1 OUT jacks using pin plug cords.
Connect the second video deck to the VCR-2 jacks in the same way.
AUDIO
AUDIO
VIDEO
VIDEO
Connecting a video decks
DVD
• Connect the video disc player’s video output jack (VIDEO OUTPUT) to the (yellow)
DVD/VDP IN jack using a 75 Ω/ohms video coaxial pin plug cord.
• Connect the video disc player’s analog audio output jacks (ANALOG AUDIO OUTPUT) to the
DVD/VDP IN jacks using pin plug cords.
• It is also possible to connect a video disc player, DVD player, video game, etc., to the VCR-2
jacks.
AUDIO
VIDEO
Connecting a monitor TV
Video deck 1
Video deck 1
Connect the components’ audio inputs and outputs as described on page 7.
• When connecting the AVR-1804 with a monitor TV or DVD player
equipped with an SCART connector, use a converter cable (sold
separately) as shown in the diagram.
The AVR-1804 does not support input/output of RGB video signals.
R
L
VIDEO
S-VIDEO
AUDIO
21-pin SCART terminal

Denon AVR-1804 Specifications

General

Tuner	AM/FM
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Surround Sound	Dolby Digital, DTS, Dolby Pro Logic II
Connector Type	RCA
Dimensions	434 x 168 x 391 mm
