Denon AVR-1906 - Schematic Diagrams (3;15): Front, Function, Main SW, H;P, Opt-In Boards

82
AVR-1906 / AVR-786 / AVC-1620

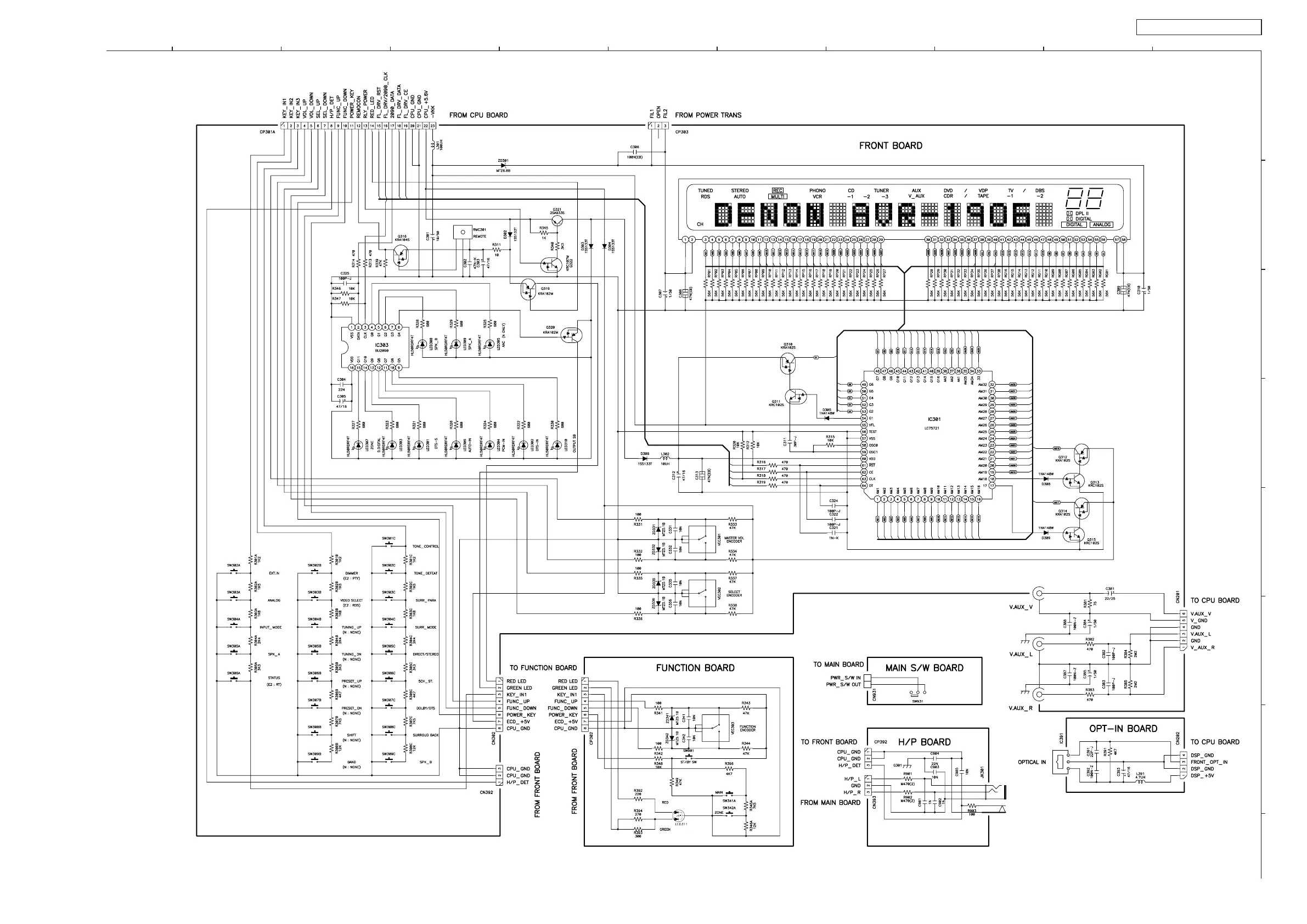

SCHEMATIC DIAGRAMS (3/15)
FRONT BOARD
FUNCTION BOARD
MAIN S/W BOARD
H/P BOARD
OPT-IN BOARD
SCHEMATIC DIAGRAMS (3/15)
1234567891011
