Denon AVR-1908 Service Manual

9
AVR-1908 / AVR-788

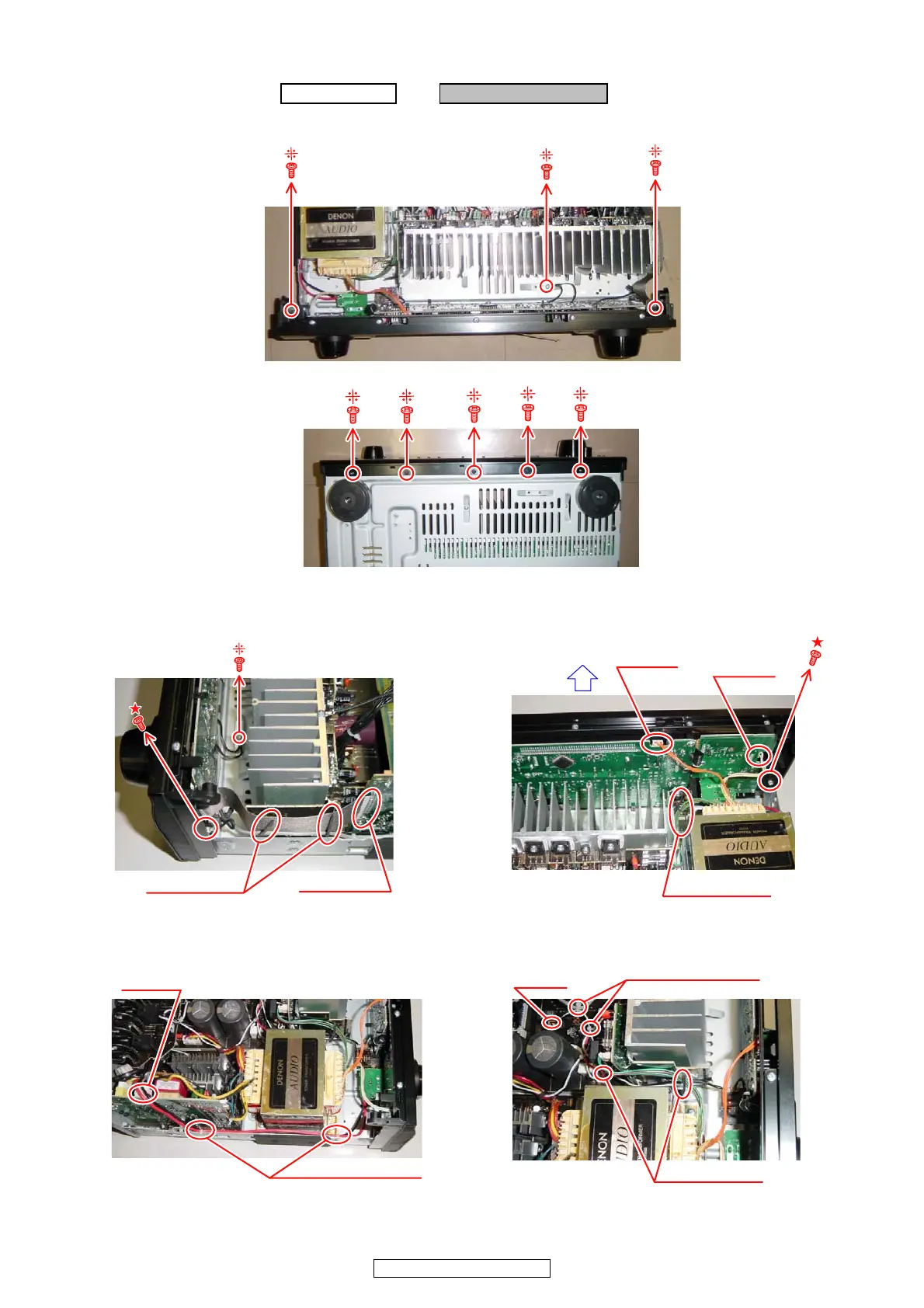

1. PANEL FRONT ASSY
(1) Remove the screws. ( ねじをはずす。）
(2) Disconnect the connector wires and remove the screws . ( コネクターワイヤーとねじをはずす。）
Proceeding ( 手順 ) : CABINET TOP → PANEL FRONT ASSY
Picture A
[ Top view ]
Picture G
[ Bottom view ]
Picture I
Cord holder
CP302
CP105
Picture C
Wire clamp band
CP503
CUT
Picture E
Wire clamp band
Cord holder
CP541
CUT
FFC cable
Cord holder
Picture D
