Denon AVR-1908 Service Manual

10
AVR-1908 / AVR-788

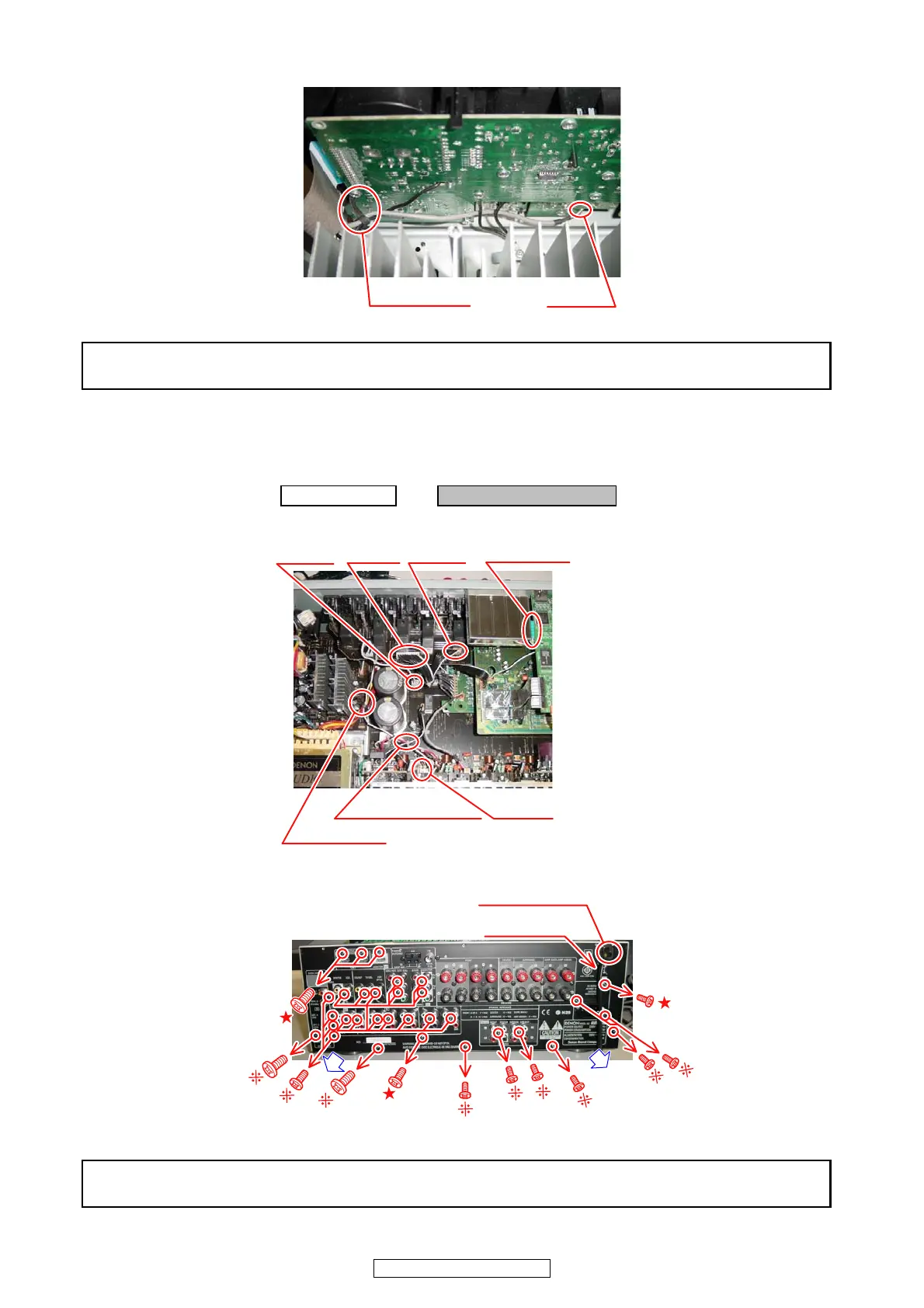

2.CHASSIS BACK ASSY
(1) Disconnect the connector wires and unscrew a screw. ( コネクタワイヤーとねじをはずす。）
Picture F
CP306
Cord holder
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in panel front assy.
Panelfrontassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
Proceeding (手順) : CABINET TOP → CHASSIS BACK ASSY
CP103CP101CP103
CP102
FFC cable
Wire clamp band
Cord holder
CUT
Picture E
Picture B
Cord bush
AC cord
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in Chassis back assy.
Chassisbackassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。

Denon AVR-1908 Specifications

General

Channels	7.1
Power Output	90W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
Type	AV Receiver
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Tuner	AM/FM
Frequency Response	10Hz-100kHz (+1, -3dB)
Input Sensitivity/Impedance	200mV/47k ohms
Signal-to-Noise Ratio	98 dB
Power Consumption	460W
Surround Sound Formats	Dolby Digital, DTS
Total Harmonic Distortion	0.08%
Tuner Frequency Range	AM: 522-1611 kHz, FM: 87.5-108.0 MHz
Standby Power Consumption	Less than 1W
