Denon AVR-1908 Service Manual

11
AVR-1908 / AVR-788

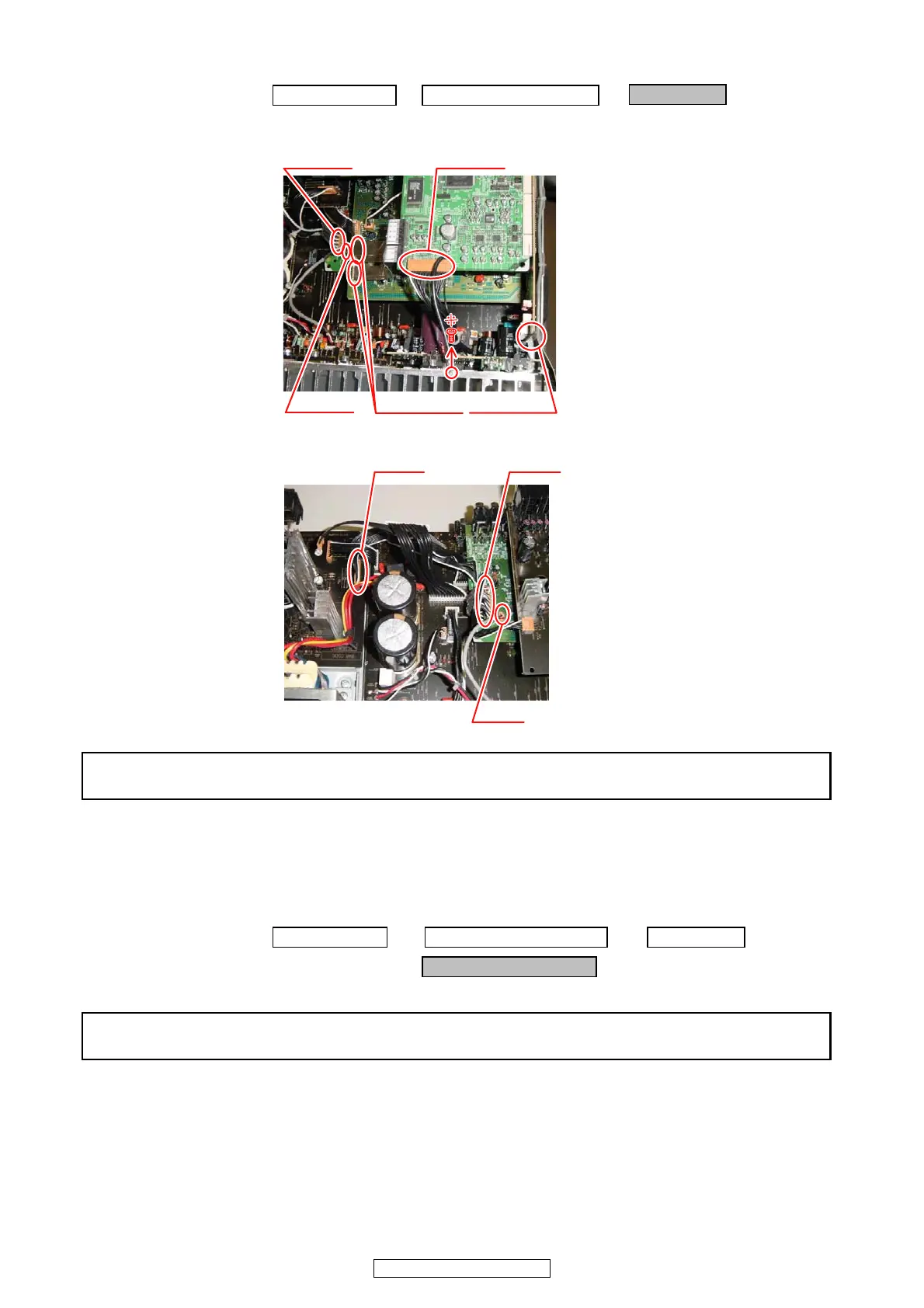

3.CPU ASSY
(1) Disconnect the connector wires and screw. ( コネクタワイヤーとねじをはずす。）
4. CHASSIS MAIN ASSY
Proceeding ( 手順 ) : CABINET TOP → CHASSIS BACK ASSY → CPU ASSY
Picture J
CP1001
FFC cable
CP704
CP705
FFC cable
Picture E
CP704CP514
CP705
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in CPU assy.
CPUassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
proceeding ( 手順 ) : CABINET TOP → CHASSIS BACK ASSY → CPU ASSY
→ CHASSIS MAIN ASSY
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in chassis main assy.
Chassismainassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。

Denon AVR-1908 Specifications

General

Channels	7.1
Power Output	90W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
Type	AV Receiver
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Tuner	AM/FM
Frequency Response	10Hz-100kHz (+1, -3dB)
Input Sensitivity/Impedance	200mV/47k ohms
Signal-to-Noise Ratio	98 dB
Power Consumption	460W
Surround Sound Formats	Dolby Digital, DTS
Total Harmonic Distortion	0.08%
Tuner Frequency Range	AM: 522-1611 kHz, FM: 87.5-108.0 MHz
Standby Power Consumption	Less than 1W
