75

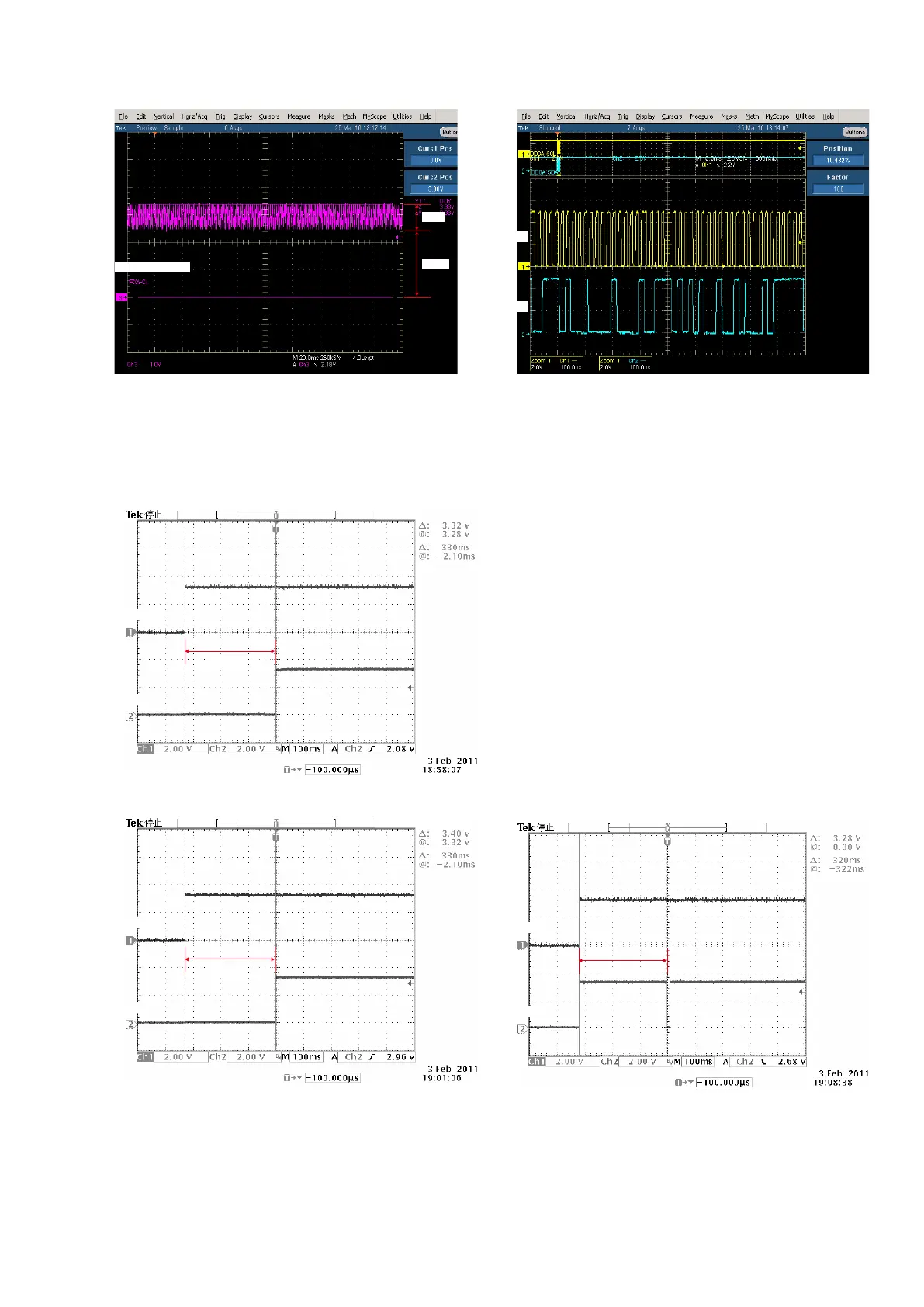

DDC_CLK/DDC_DATA/TMDS : Check items HDMI to HDMI (17)/(19)/(23), Check items Analog to HDMI (2)/(11)
Timing waveform illustration from the start of CEC3.3V to when reset is released
:
Check items HDMI to HDMI (21)/(26),
Check item Analog to HDMI (14)
Check item Analog to HDMI (5)
Check item Analog to HDMI (10)
0.9V
2.48V
TMDS Waveform
DDC_CLK
DDC_DATA
CEC3.3V
RESET
330ms
DV3.3V
RESET
330ms
DV3.3V
RESET
320ms
To Next Page
