76

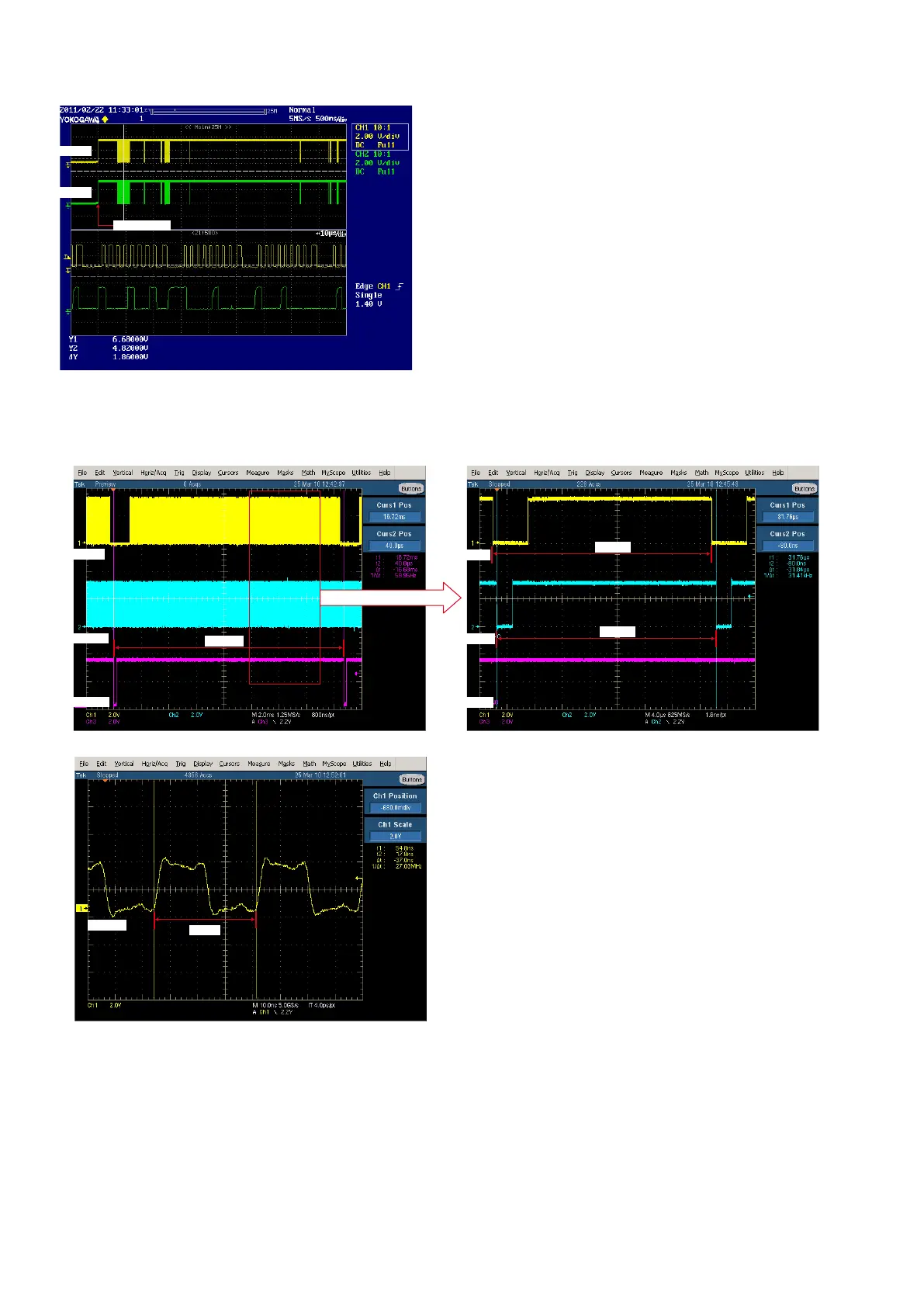

1TXDE/1TXVSYNC/1TXHSYNC/1TXPCK : Check item Analog to HDMI (8)

Controlled waveform(I2C), when power is turned on : Check item HDMI to HDMI (22), Check item Analog to HDMI (7)

1TXDE

1TXDE

16.68ms

1TXHSYNC

1TXVSYNC

1TXHSYNC

1TXVSYNC

31.84us

31.76us

1TXPCK

37.0ns

HSCL

HSDA

POWER

ON
