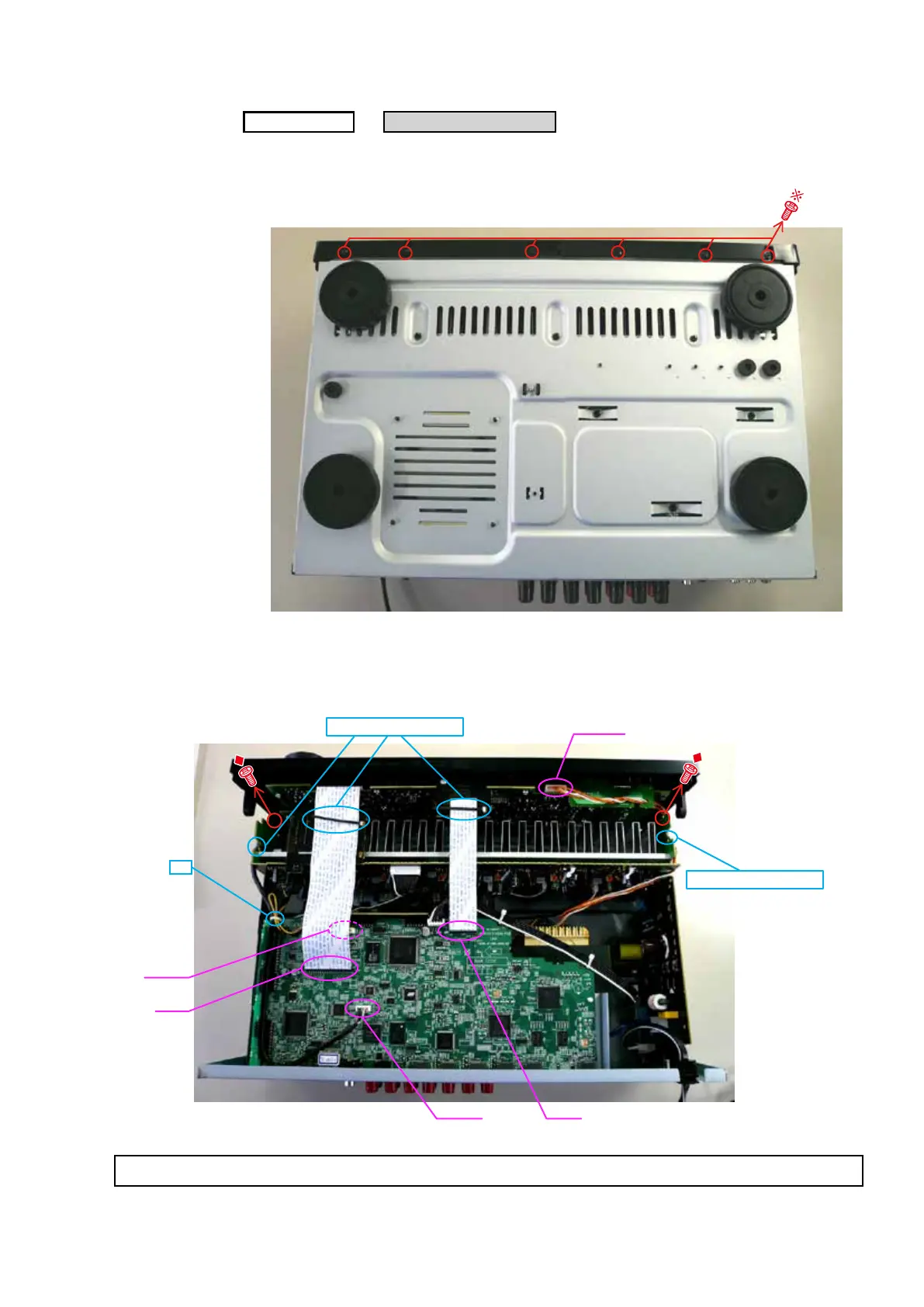

1. FRONT PANEL ASSY

(1) Remove the screws.

(2) Cut the wire clamp band, then disconnect the connector wires and FFC. Remove the screws.

TOP

COVER

FRONT PANEL ASSY

→

Proceeding :

View from the bottom

N2801 FFC

CP4400

FFC

N3405

STYLE PIN : Loosen

cut

Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.
