SCHEMATIC DIAGRAMS (26/29)
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (26/29)

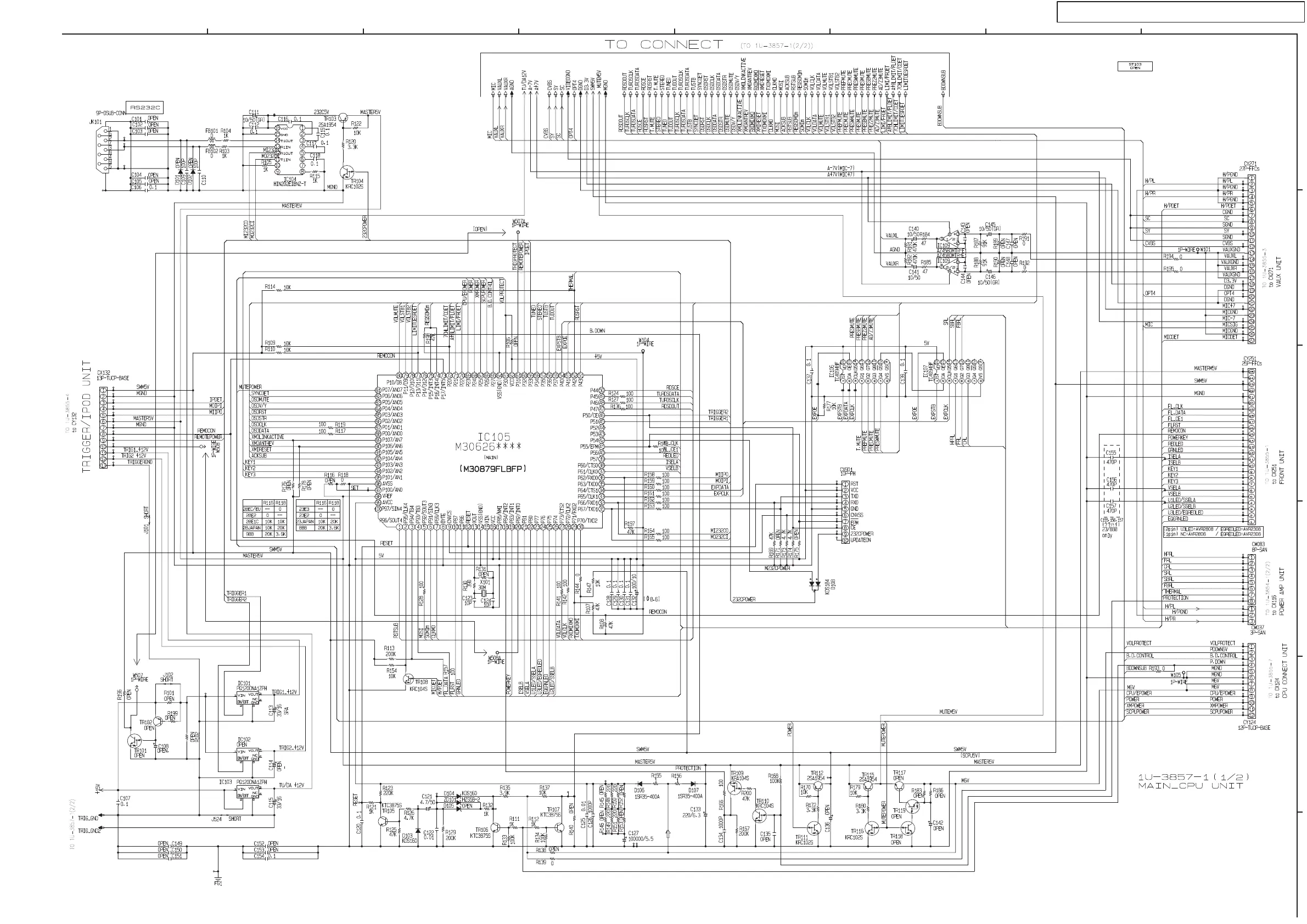

1U-3857 MAIN CPU UNIT (1/3)
1U-3857-1 MAIN CPU UNIT (1/2)
