17
ENGLISH
Advanced versionSimple version InformationBasic version

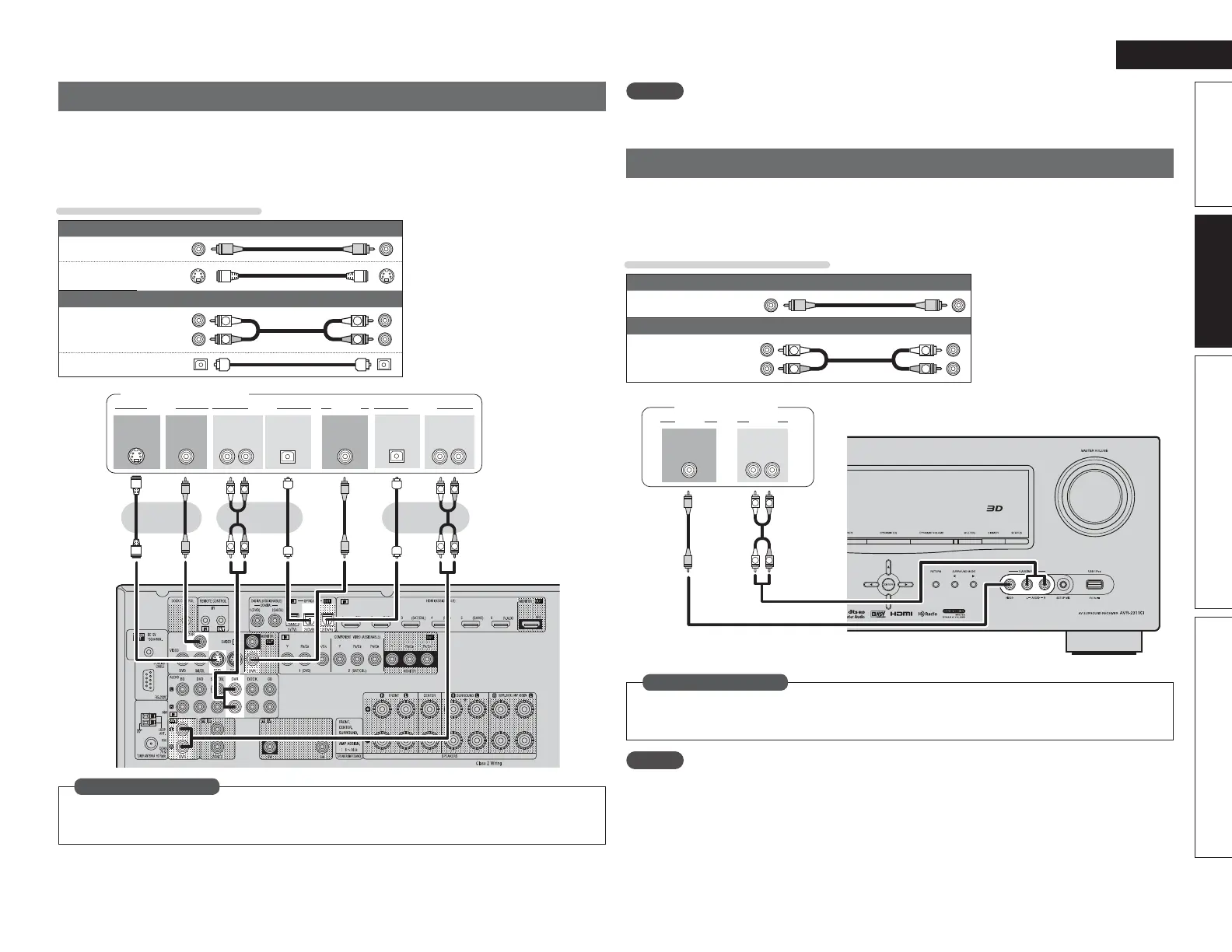

Connecting a digital video recorder
• You can record video onto a Blu-ray Disc or DVD.
• Select the connector to use and connect the device.
• When recording analog audio, use the analog connection.
• See “REC OUT mode” (vpage40) for operating instructions.
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
S-Video cable
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
Optical cable
R
L
R
L
R
L
R
L
3- 3-
065
*/
"6%*0"6%*0 7*%&07*%&0
065
*/
015*$"-
015*$"-
*/
"6%*0"6%*0
065
7*%&0
065
47*%&0 7*%&0
Digital video recorder
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage48)
in Set as Necessary
NOTE
To record video signals through this unit, use the same type of video cable for connection between this
unit and the player as used for connection between this unit and the recorder.
Connecting a digital camcorder
• You can enjoy video and audio from a digital comcorder.
• You can enjoy games by connecting a game machine via the V.AUX input connector. In this case, select
the input source to “V.AUX”.
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
R
L
R
L
065
"6%*07*%&0
7*%&0
"6%*0
3-
065
Digital camcorder
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage48)
in Set as Necessary
NOTE
When a non-standard video signal from a game machine or some other source is input, the video conversion
function might not operate. In this case, use the monitor output of the same connector as the input.
To Next Page
