Denon AVR-2313 User Manual

86

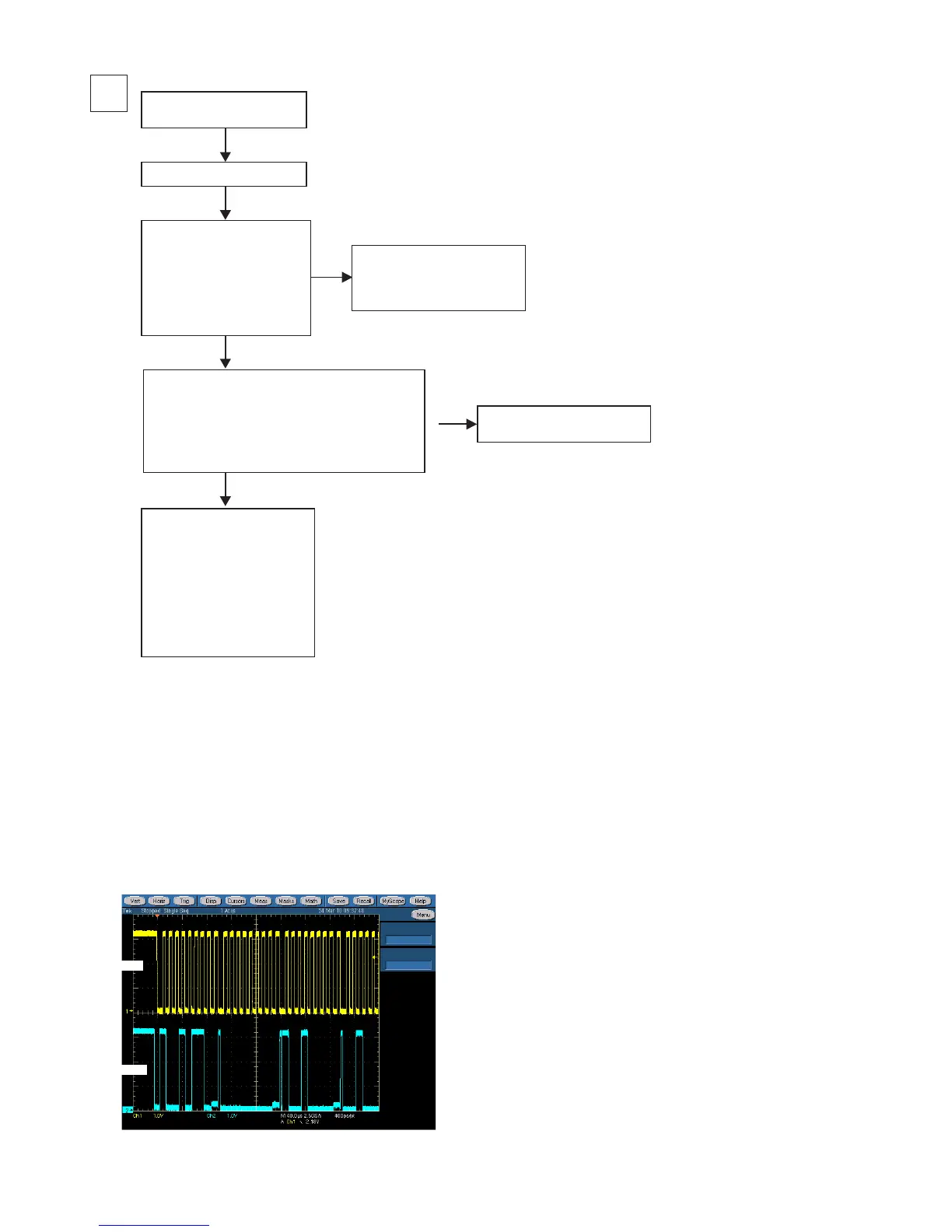

VIDEO B'D aw.
B
NO
NO
YES
YES
Extend HDMI B'D using a jig.
The parts between IC4801 is
defective.
The soldering (IC4801) is
defective.
• Monitor Out (V/Component)
The pattern between IC4801
and JK4801 or JK4802 are
defective.
• HDMI Out
Connection of VIDEO B'D
and FRONT CNT B'D, or
connection of HDMI B'D and
FRONT CNT B'D is defective.
Is the signal output from IC4801(AVDM-2000)?
To Moitor To HDMI out
V : JK4801 Lead J4830
COMPONENT(Y) : JK4802 Lead J4832
COMPONENT(Cb) : JK4802 Lead J4828
COMPONENT(Cr) : JK4802 Lead CN4613 2PIN
w
Is the signal input to
IC4801(AVDM-2000)?
V : C4807 +side
COMPONENT(Y) : J4860
COMPONENT(Cb) : J4816
COMPONENT(Cr) : J4815
(VIDEO B'D)
q
I2C communication wave form
CH1: CLK
CH1: DATA

Denon AVR-2313 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	6
Composite video in	4
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Wi-Fi	No
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Optical drive included	-
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	VFL
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Volume control	Digital
Apple docking compatibility	iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC
Audio formats supported	FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	10900 g
