Denon AVR-2803 Operating Instructions

15
ENGLISH

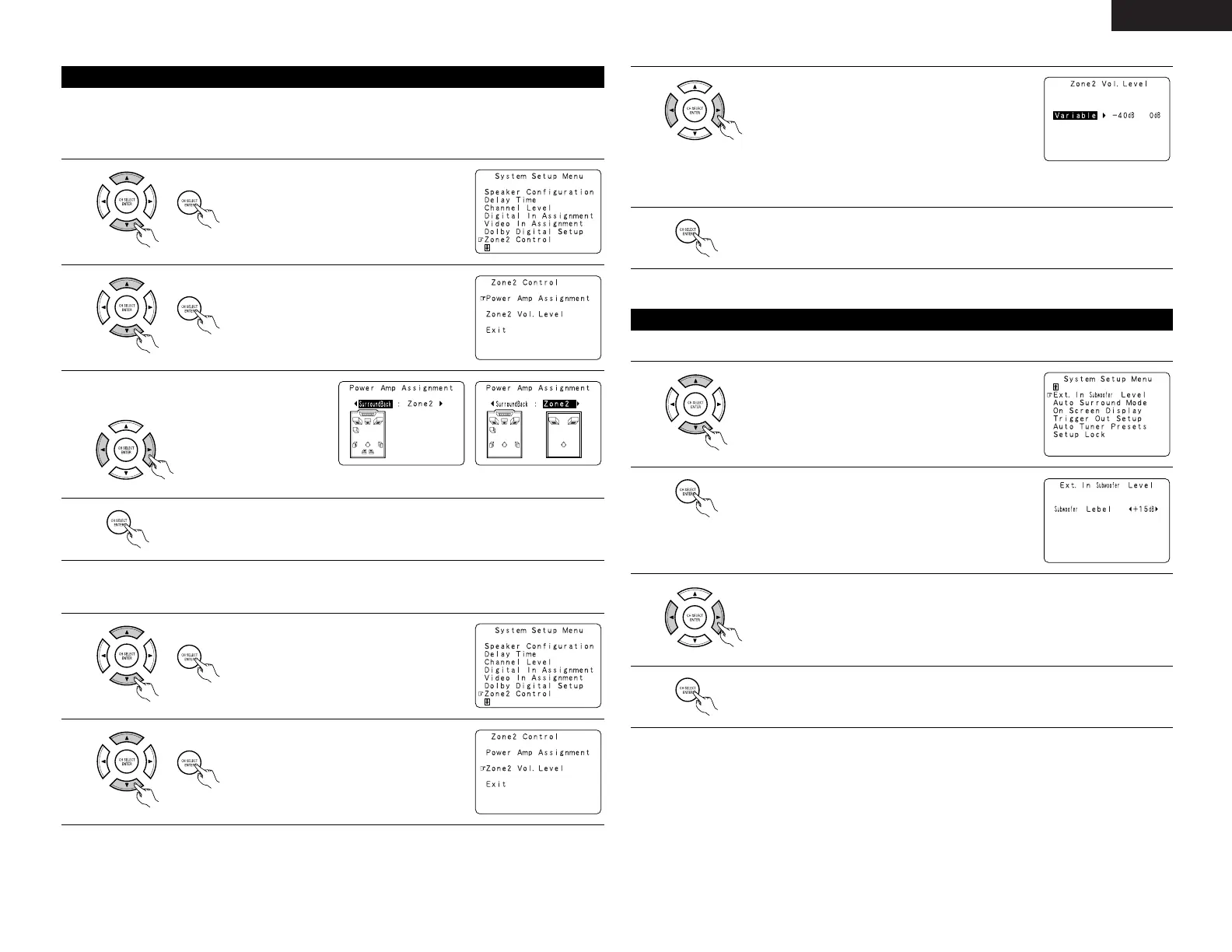

[1] Setting the power amplifier assignment
Make this setting to switch the power amplifier for the surround back channel to ZONE2.
If ZONE2 is selected, the signal that selected at ZONE2 is output at “SURR. BACK/ZONE2 PREOUT”
terminals.
Setting the ZONE2 Control
1
At the System Setup Menu select “Zone2
Control” and press the ENTER button.
2
The “Zone2 Control” screen appears.
Select “Power Amp Assignment” and press
the ENTER button.
3
Select “Surround Back” to use as the surround
back channel, “Zone2” to use as Zone 2 out.
4
Enter the setting.
At the “Zone2 Control” screen, select “Exit” and press the ENTER button.
The System Setup Menu reappears.
When “Zone2” is selectedWhen “Surround Back” is selected
[2] Setting the Zone2 vol. level
Set the Zone 2 pre-out output level adjustment.
1
At the System Setup Menu select “Zone2
Control” and press the ENTER button.
2
The “Zone2 Control” screen appears.
Select “Zone2 Vol. Level” and press the
ENTER button.
3
Select the desired setting.
Variable:
The level can be adjusted freely using the buttons on the
remote control unit.
0 dB, -40 dB:
The output level is fixed at the set level and the volume
can no longer be adjusted.
4
Enter the setting.
At the “Zone2 Control” screen, select “Exit” and press the ENTER button.
The System Setup Menu reappears.
• Set the method of playback of the analog input signal connected to the Ext.In Subwoofer.
Setting the Ext. In Subwoofer Level
1
At the System Setup Menu select “Ext.In Subwoofer Level”.
2
Switch to the Ext.In Subwoofer Level screen.
3
Select the desired setting.
Select according to the specifications of the player being used. Also refer to the player’s
operating instructions.
+15dB (default) recommended. (0, +5, +10 and +15 can be selected.)
4
Enter the setting.
The System Setup Menu reappears.

Denon AVR-2803 Specifications

General

Power Output	90 W per channel (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Channels	7.1
Dolby Support	Dolby Digital, Dolby Pro Logic II
Digital Inputs	2 coaxial, 3 optical
Weight	14.5 kg
Type	AV Receiver
Output Power per Channel	90 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity	200 mV
Input Impedance	47 kOhms
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV / 47 kOhms
Tuner Frequency Range	FM: 87.5 - 108 MHz, AM: 522 - 1611 kHz
DTS Support	DTS, DTS-ES, DTS Neo:6
Outputs	Composite: 2, Component: 1
Video outputs	Composite: 2
