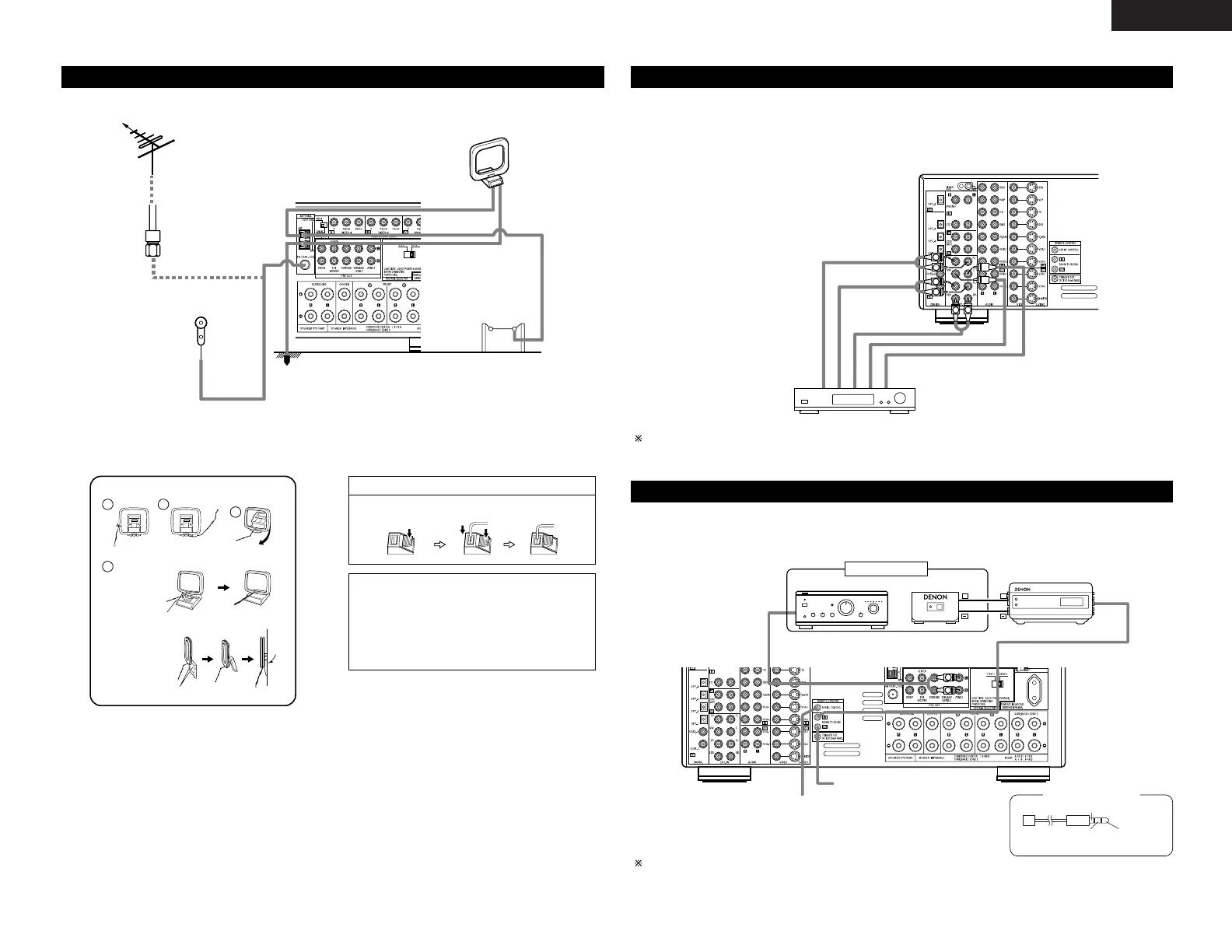

Connecting the antenna terminals
DIRECTION OF
BROADCASTING
STATION
75 Ω/ohms
COAXIAL
CABLE
FM ANTENNA
FM INDOOR
ANTENNA
(Supplied)
AM LOOP
ANTENNA
(Supplied)
AM OUTDOOR
ANTENNA
GROUND
• An F-type FM antenna cable plug can be connected directly.
1
4
2
3
AM loop antenna assembly
Connect to the AM
antenna terminals.
Remove the vinyl tie
and take out the
connection line.
Bend in the reverse
direction.
a. With the
antenna on
top any
stable
surface.
b. With the
antenna
attached to
a wall.
Mount
Installation hole Mount on wall, etc.
Connection of AM antennas
1. Push the
lever.
2. Insert the
conductor.
3. Return the
lever.
NOTES:
• Do not connect two FM antennas
simultaneously.
• Even if an external AM antenna is used, do
not disconnect the AM loop antenna.
• Make sure AM loop antenna lead terminals
do not touch metal parts of the panel.
L
R
L
R
RL
Decoder with 8- or 6-channel
analog output
Front Surround back Surround Subwoofer Center
For instructions on playback using the external input (EXT. IN) jacks, see page 24.
Connecting the external input (EXT. IN) jacks
• These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a
different type of multi-channel decoder, such as a DVD Audio player, or a multi-channel SACD player, or other
future multi-channel sound format decoder.
• When making connections, also refer to the operating instructions of the other components.
L
R
++
OUTPUT
INPUT
AUX OUT
B
ZONE 2
Integrated pre-main amplifier or power amplifier
For instructions on operations using the ZONE 2 jacks, see pages 26, 27.
Connecting the ZONE 2 jacks
• If another pre-main (integrated) amplifier or power amplifier is connected, the ZONE 2 jacks can be used to
play a different program source in ZONE 2 at the same time.
RS232C GND
∆ 3.5 
STEREO PLUG
RXD
(PC IN)
TXD
(PC OUT)
Serial Control cable
Extension jacks for future use.
SERIAL CONTROL terminal
• Connect when using an external controller.
• Use an adapter cable (sold separately) as shown on the
diagram at the right to connect the external controller.

Denon AVR-2803 Specifications

General

Power Output	90 W per channel (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Channels	7.1
Dolby Support	Dolby Digital, Dolby Pro Logic II
Digital Inputs	2 coaxial, 3 optical
Weight	14.5 kg
Type	AV Receiver
Output Power per Channel	90 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity	200 mV
Input Impedance	47 kOhms
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV / 47 kOhms
Tuner Frequency Range	FM: 87.5 - 108 MHz, AM: 522 - 1611 kHz
DTS Support	DTS, DTS-ES, DTS Neo:6
Outputs	Composite: 2, Component: 1
Video outputs	Composite: 2
